Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the jumpseat seat belt buckle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the jumpseat seat belt buckle retaining bolt.

    Tighten

    Tighten the jumpseat seat belt buckle retaining bolt to 55 N.m (41 lb ft).

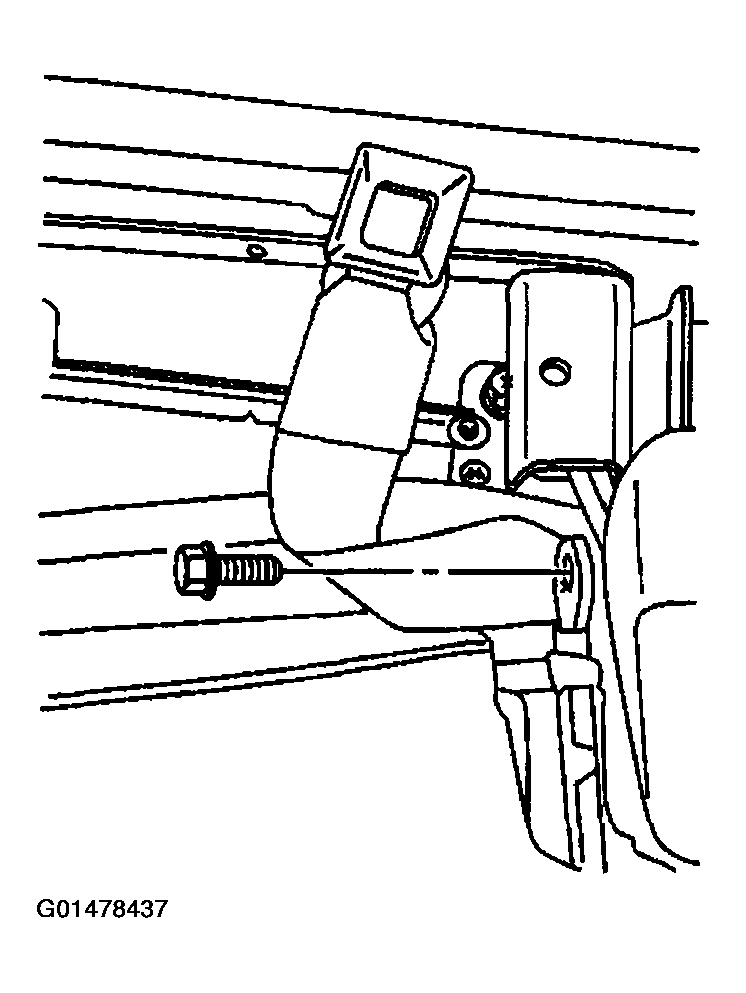

    Fig 1: Installing Jumpseat Seat Belt Buckle & Bolt
    G01478437Courtesy of GENERAL MOTORS CORP.
