Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cargo tie down mounting bolt.
  2. Remove the cargo tie down loop.

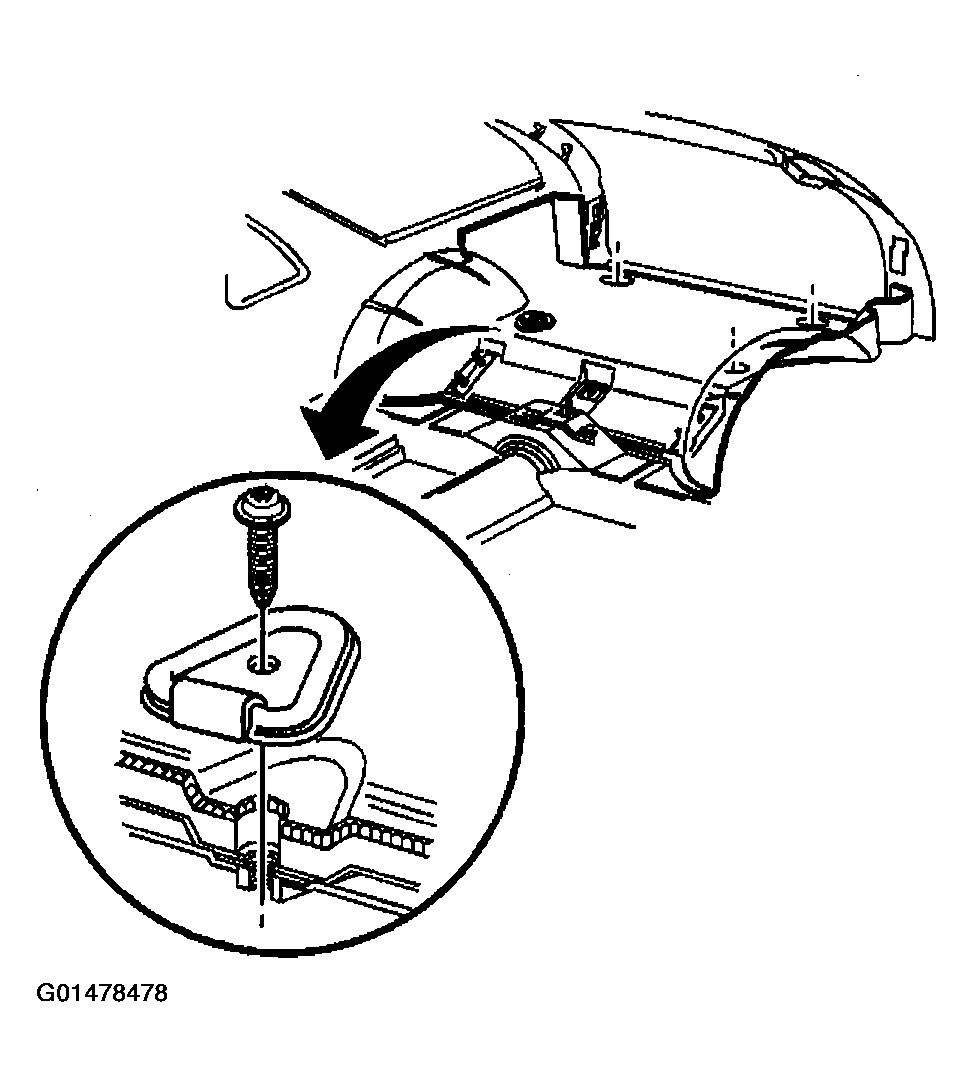

    Fig 1: Removing Cargo Tie Down Loop & Bolt (Utility)
    G01478478Courtesy of GENERAL MOTORS CORP.
