Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the cargo tie down loop on the floor.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the cargo tie down loop to the floor with the mounting bolt.

    Tighten

    Tighten the cargo tie down loop mounting bolt to 35 N.m (26 lb ft).

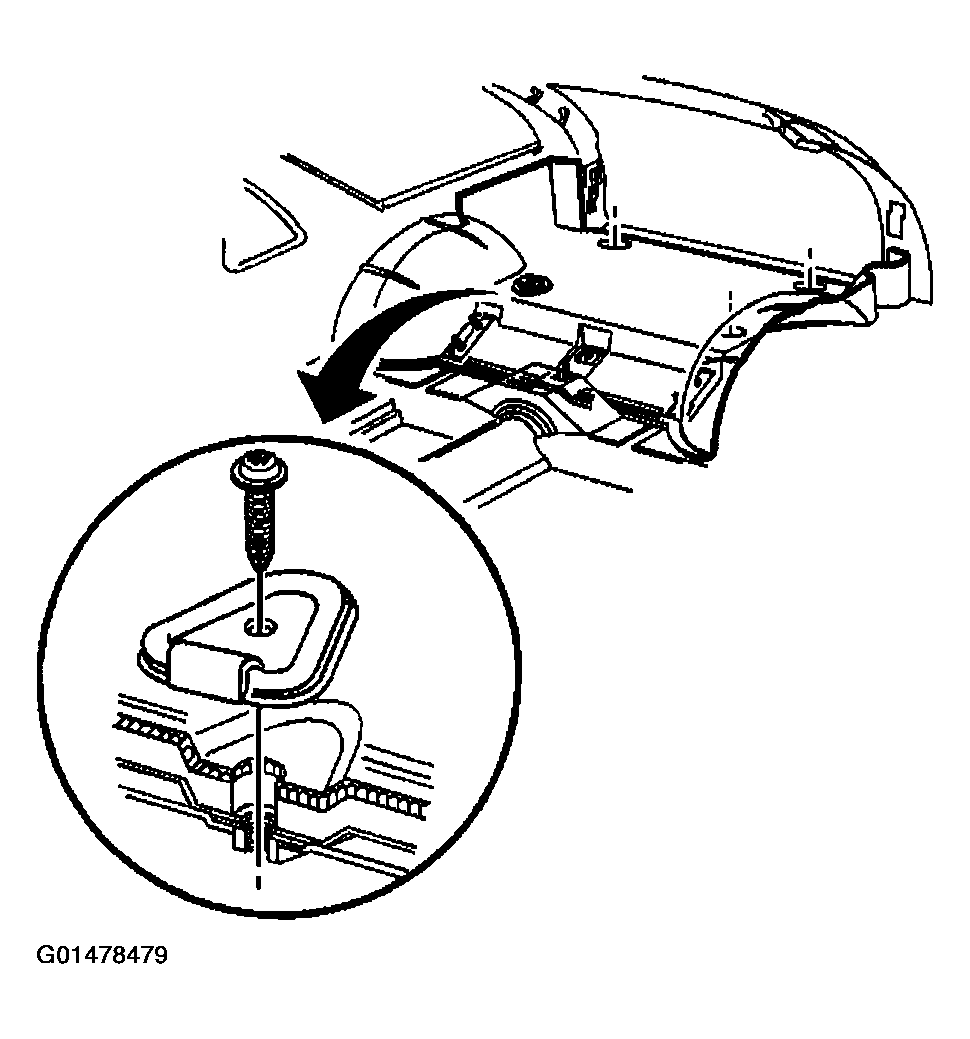

    Fig 1: Installing Cargo Tie Down Loop & Bolt (Utility)
    G01478479Courtesy of GENERAL MOTORS CORP.
