Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Separate the J-strips from the seat bottom frame.

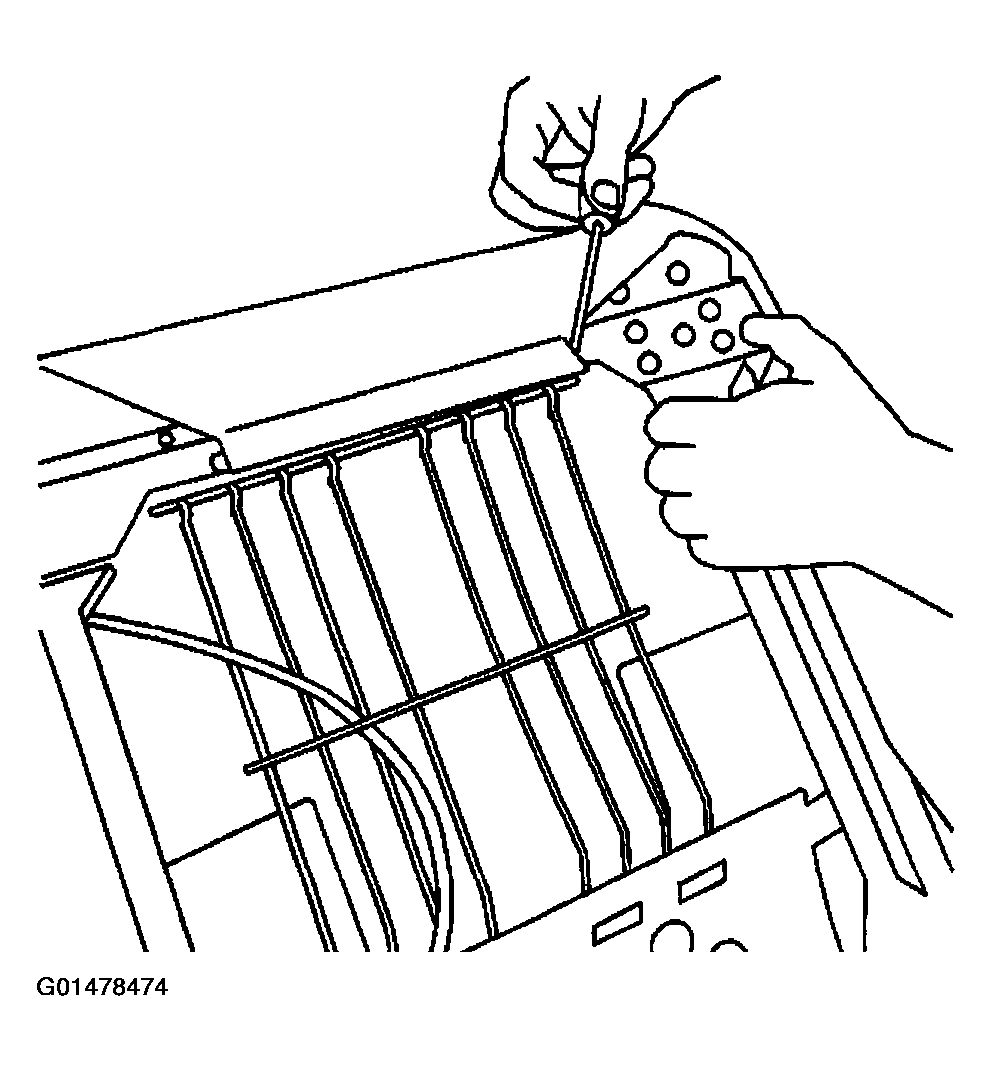

Fig 1: Removing J-Strips From Seat Bottom Frame (Pickup)
Courtesy of GENERAL MOTORS CORP.
Work the seat cover back to expose the tether anchor mounting bolt.
Remove the tether anchor mounting bolt.
Remove the tether anchor (1).

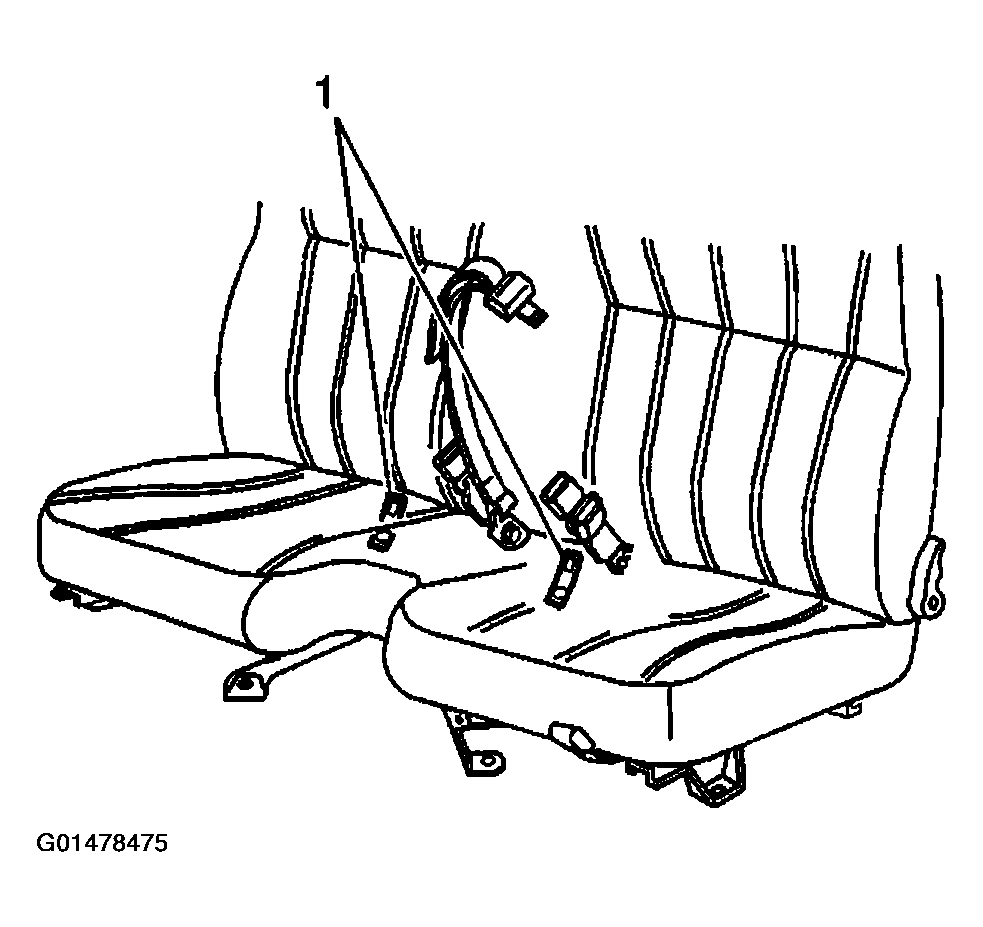

Fig 2: Removing Tether Anchor (Pickup)
Courtesy of GENERAL MOTORS CORP.
