Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the liftgate window.
  2. Push the weatherstrip onto the pinch-weld flange.

    Begin with the pre-formed corner at either upper corner of the liftgate window opening.

  3. Completely seat the weather-strip around the liftgate window opening.

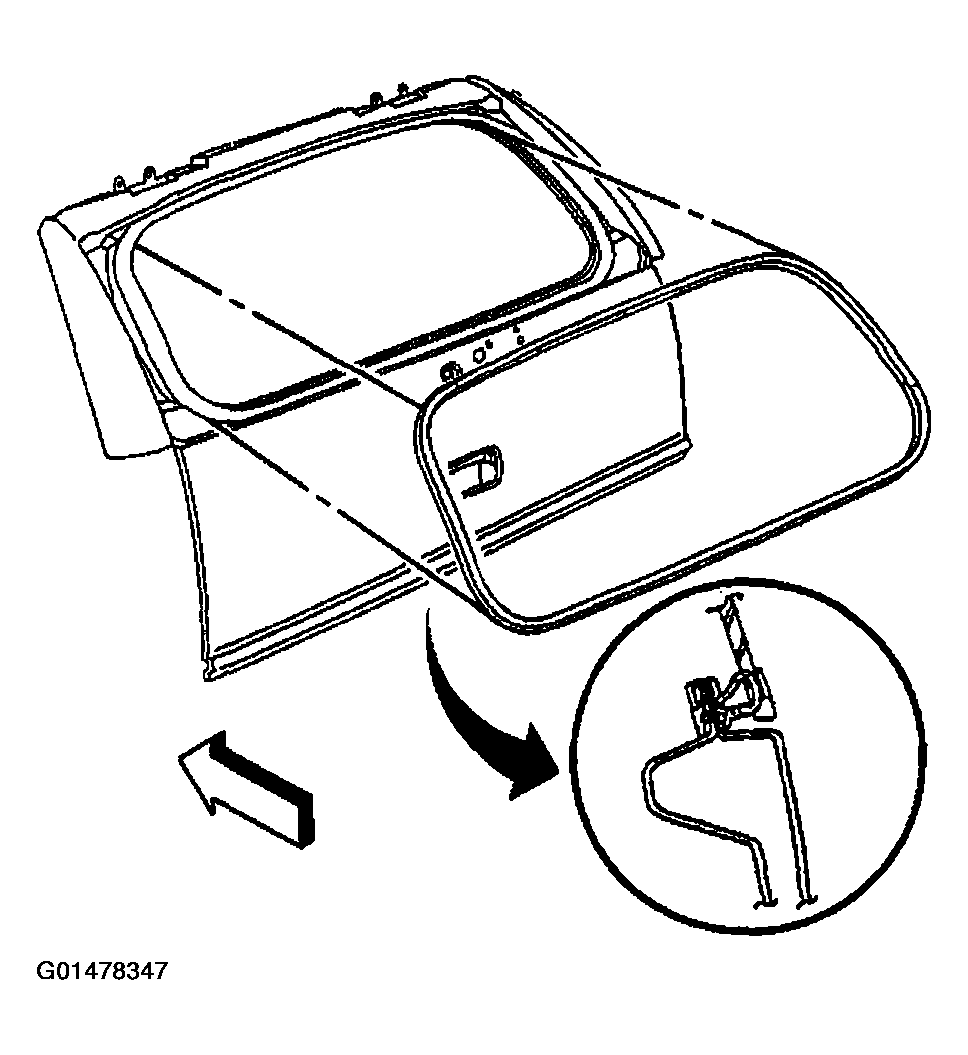

    Fig 1: Liftgate Window Weatherstrip
    G01478347Courtesy of GENERAL MOTORS CORP.
