Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the endgate.
  2. Starting at the corner of the endgate flange, pull the weatherstrip molding from the endgate.

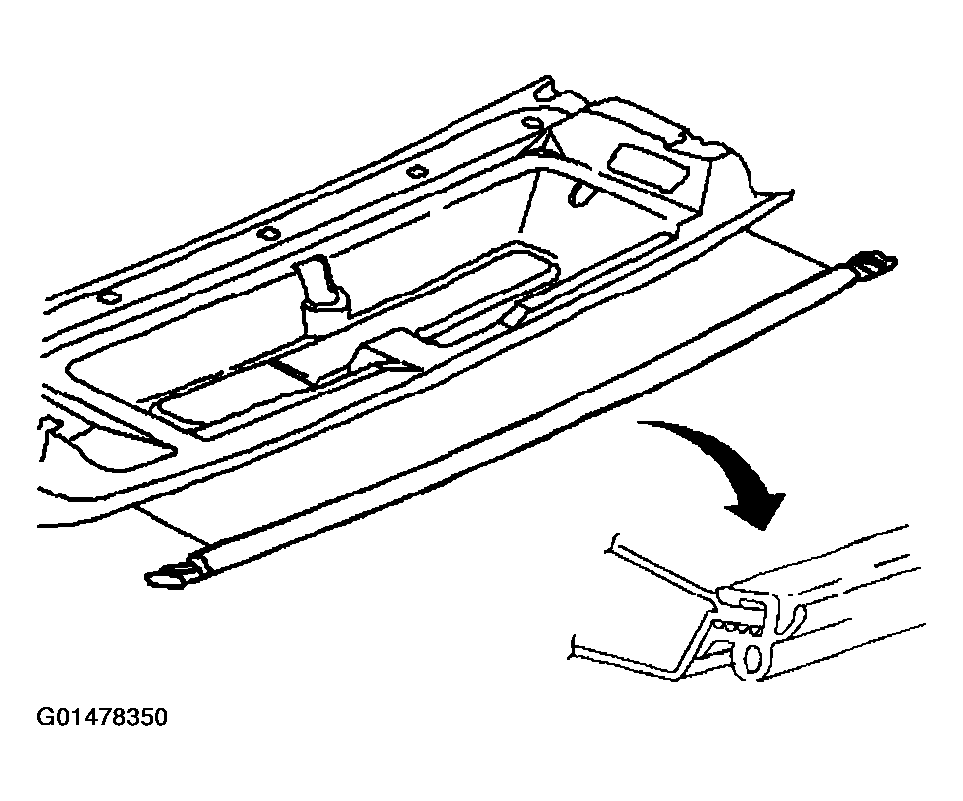

    Fig 1: End Gate Window Weatherstrip
    G01478350Courtesy of GENERAL MOTORS CORP.
