Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the liftgate window.
  2. Remove the screw retaining the liftgate trim panel to the liftgate window latch support.
  3. Open the liftgate.
  4. Remove the pullstrap. Refer to PULLSTRAP REPLACEMENT - LIFT GATE .
  5. Remove the trim panel from the liftgate.

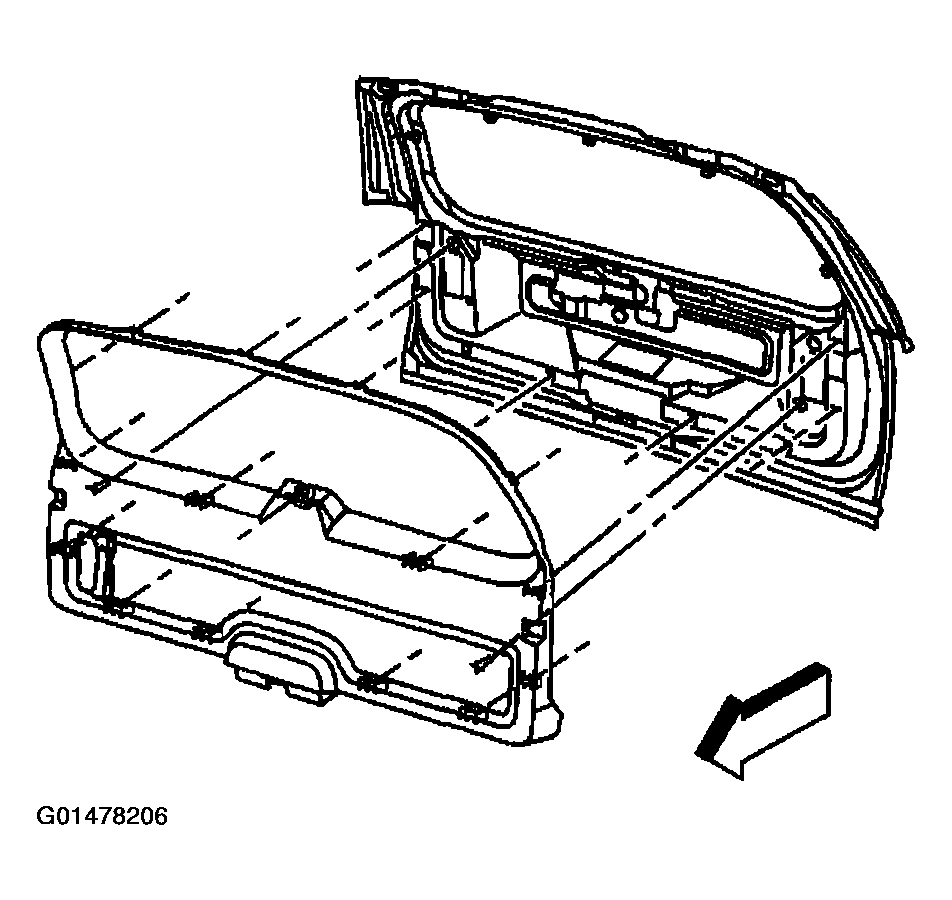

    Fig 1: Removing Trim Panel From Liftgate
    G01478206Courtesy of GENERAL MOTORS CORP.
