Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the trim panel to the liftgate.
  2. Install the pullstrap. Refer to PULLSTRAP REPLACEMENT - LIFT GATE .
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the screw retaining the liftgate trim panel to the liftgate window latch support.

    Tighten

    Tighten the screw to 1.9 N.m (17 lb in).

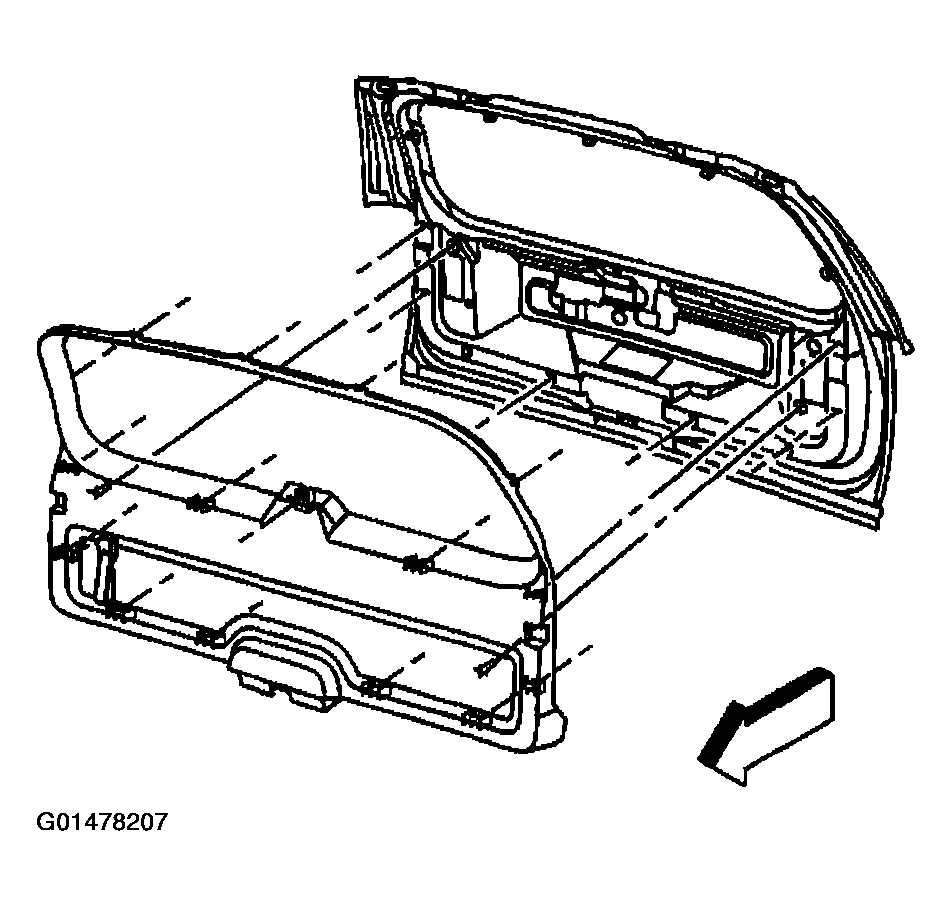

    Fig 1: Installing Trim Panel To Liftgate
    G01478207Courtesy of GENERAL MOTORS CORP.
