Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the endgate trim panel to the endgate.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the screws that retain the endgate trim panel to the endgate.

    Tighten

    Tighten the screws to 1.9 N.m (17 lb in).

  3. Install the screw that retains the endgate trim panel to the endgate window latch support.

    Tighten

    Tighten the screw to 1.9 N.m (17 lb in).

  4. Install the endgate inside handle to the endgate.

    Tighten

    Tighten the handle to 2.8 N.m (25 lb in).

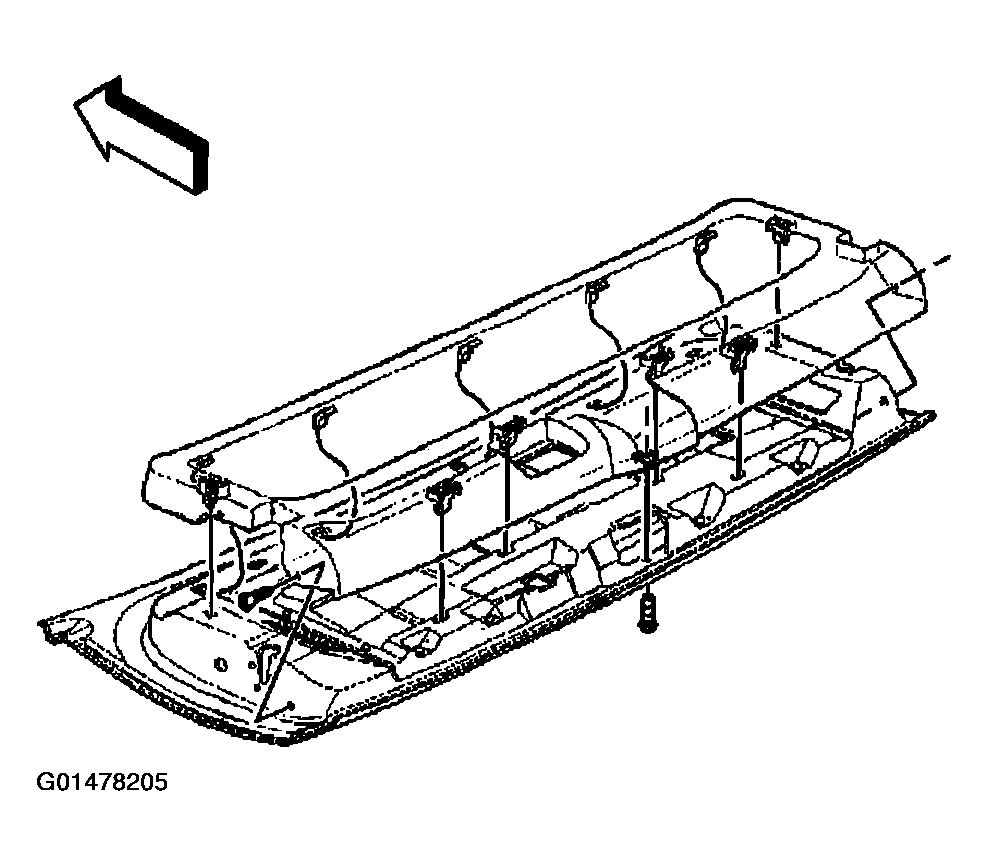

    Fig 1: Installing Endgate Trim Panel To Endgate
    G01478205Courtesy of GENERAL MOTORS CORP.
