Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the bolts that retain the endgate torque rod bracket to the vehicle body.

    With the endgate in the closed position, the bolts are accessible underneath the vehicle between the bumper and the vehicle body.

  2. Open the endgate.

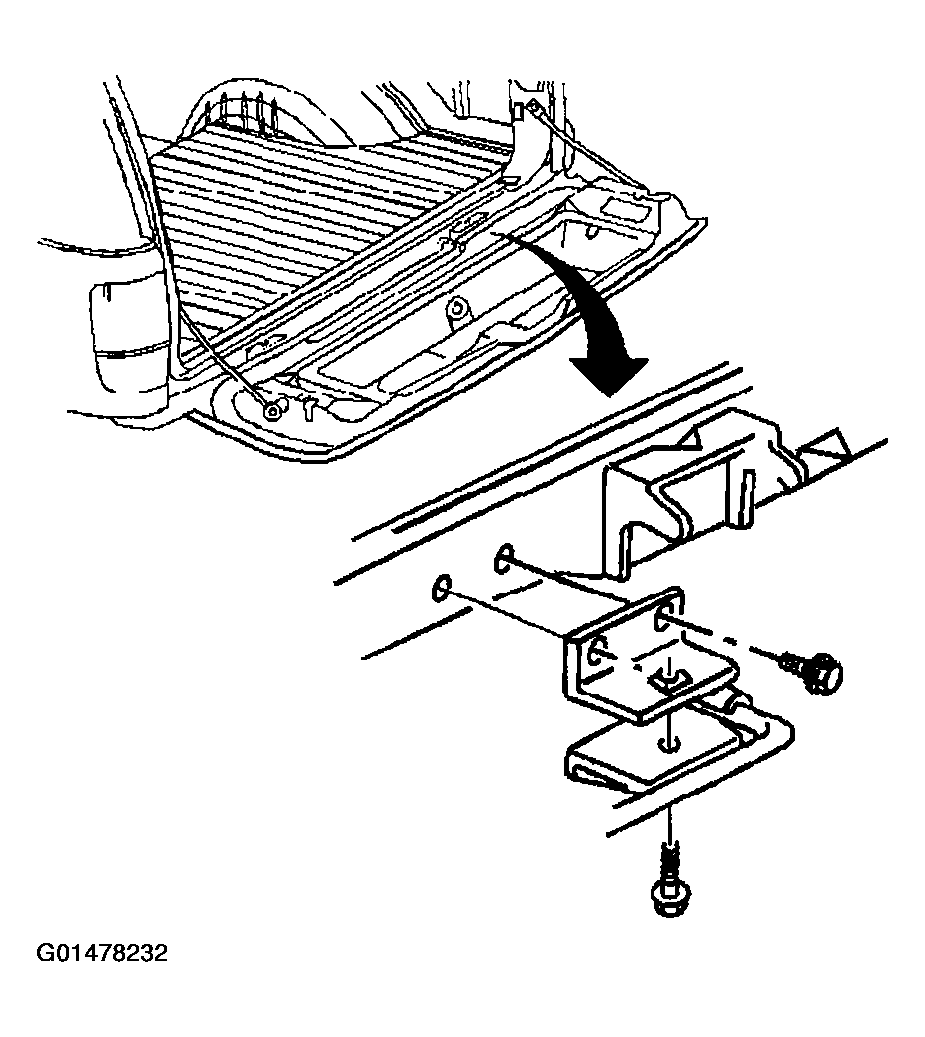

    Fig 1: Endgate Torque Rod Bracket
    G01478232Courtesy of GENERAL MOTORS CORP.
  3. Remove the bolts that retain the endgate torque rod insulator to the endgate.
  4. Remove the endgate torque rod.
  5. Remove the endgate bracket.
  6. Remove the insulator from the vehicle.

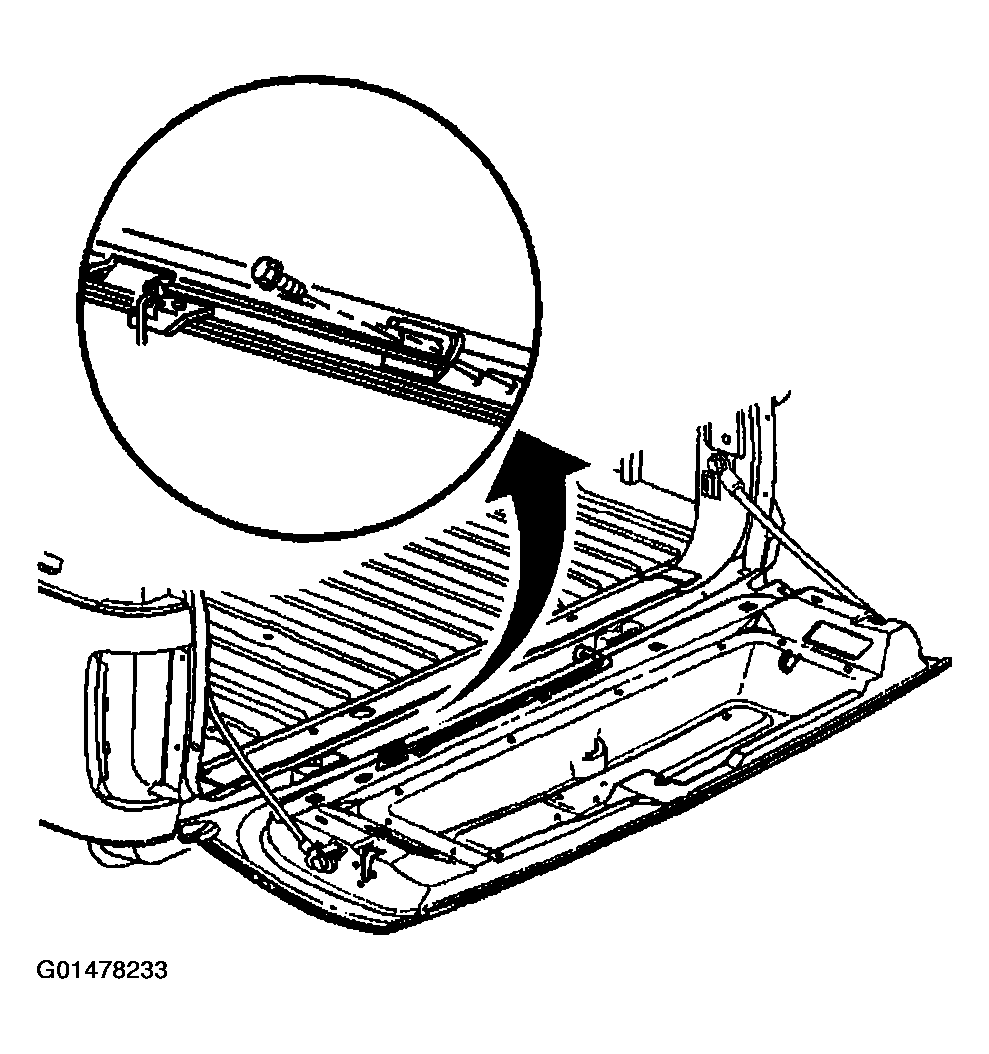

    Fig 2: Removing Insulator From Vehicle
    G01478233Courtesy of GENERAL MOTORS CORP.
