Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Safely support the endgate in the open position.
  2. Remove the bolts that retain the endgate supports to the endgate.
  3. Remove the endgate supports from the vehicle.

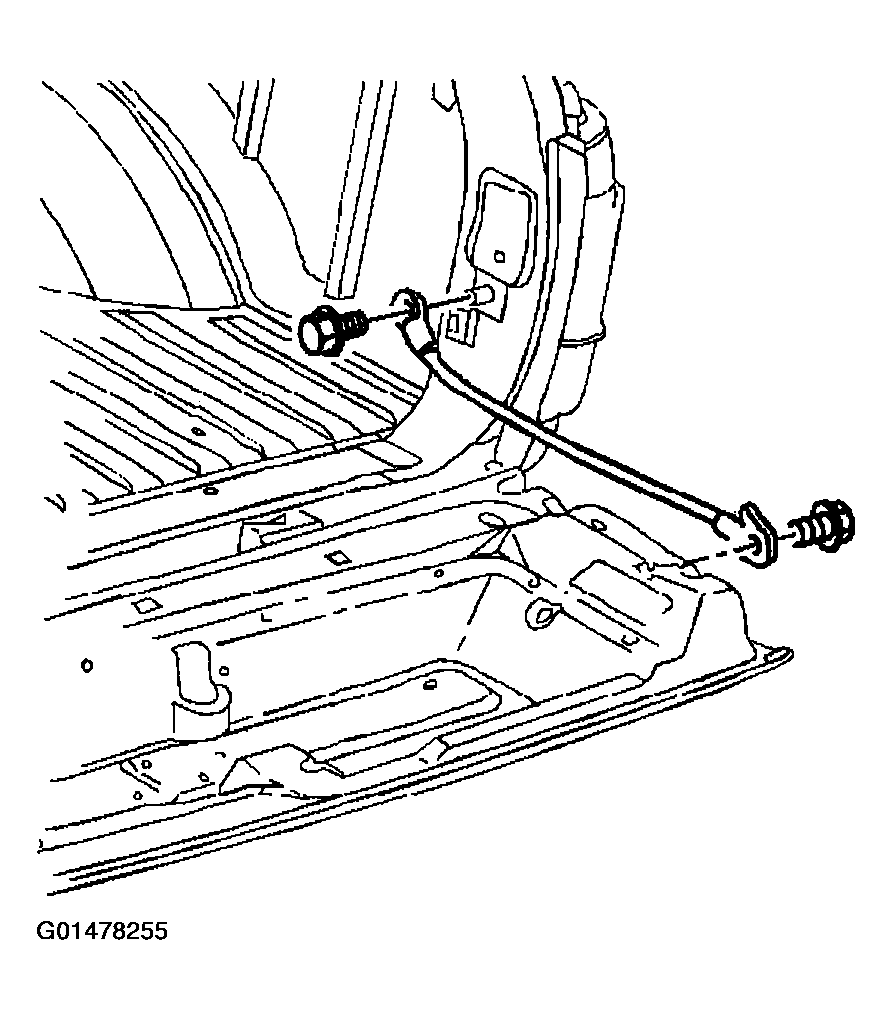

    Fig 1: Removing Endgate Supports From Vehicle
    G01478255Courtesy of GENERAL MOTORS CORP.
