Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the endgate supports to the vehicle.
  2. Install the bolts that retain the endgate supports to the endgate.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

    Tighten

    Tighten the bolts to 3 N.m (25 lb in)

  3. Close the endgate.

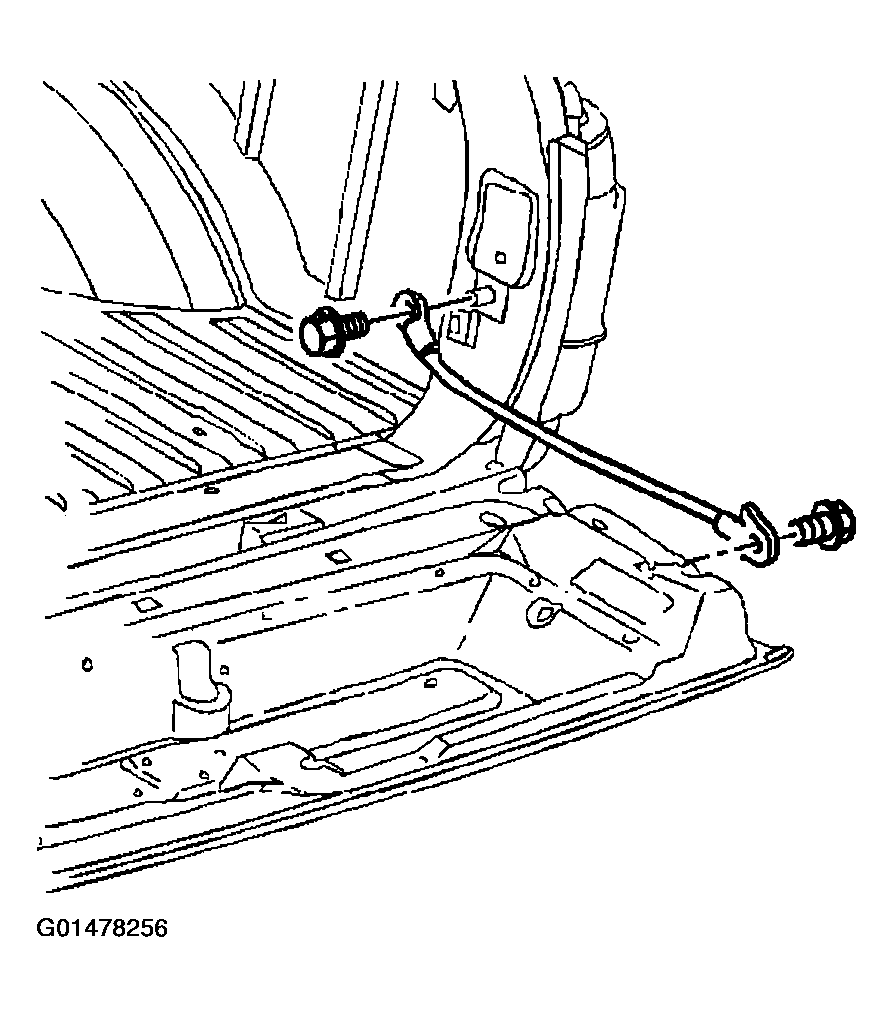

    Fig 1: Installing Endgate Supports To Vehicle
    G01478256Courtesy of GENERAL MOTORS CORP.
