Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.
  1. Open and support the endgate window.
    NOTE: Refer to LIFTGATE ASSIST ROD NOTICE in Cautions and Notices.
  2. Lift up the retainer clips on the endgate window struts using a small flat- bladed tool.
  3. Remove the upper end of the endgate window struts from the ball joint.
  4. Remove the lower end of the endgate window struts from the ball joint.

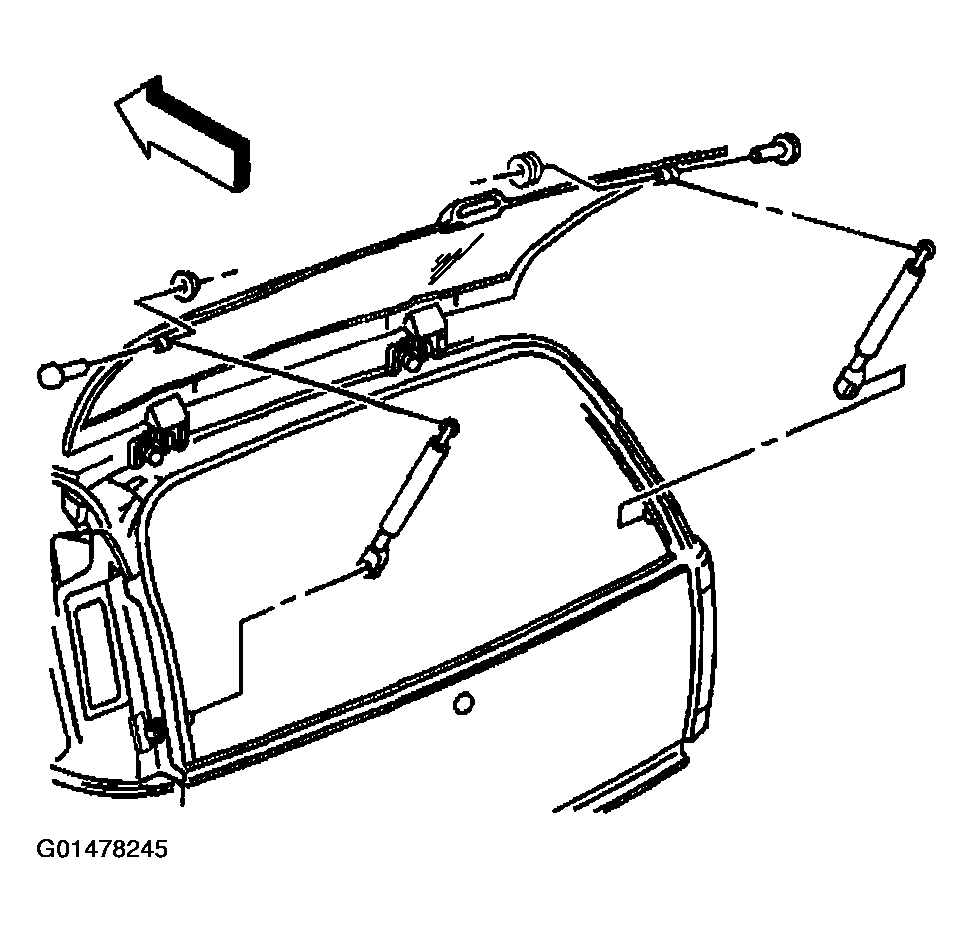

    Fig 1: Removing Lower End Of Endgate Window Struts From Ball Joint
    G01478245Courtesy of GENERAL MOTORS CORP.
