Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.
  1. Open and support the liftgate.
    NOTE: Refer to LIFTGATE ASSIST ROD NOTICE in Cautions and Notices.
  2. Lift up the retainer clips on the liftgate struts using a small flat-bladed tool.
    Fig 1: Retainer Clips
    G01478236Courtesy of GENERAL MOTORS CORP.
  3. Remove the upper end of the liftgate struts from the ball joint.
  4. Remove the lower end of the liftgate struts from the ball joint.
  5. Remove the liftgate struts from the liftgate.

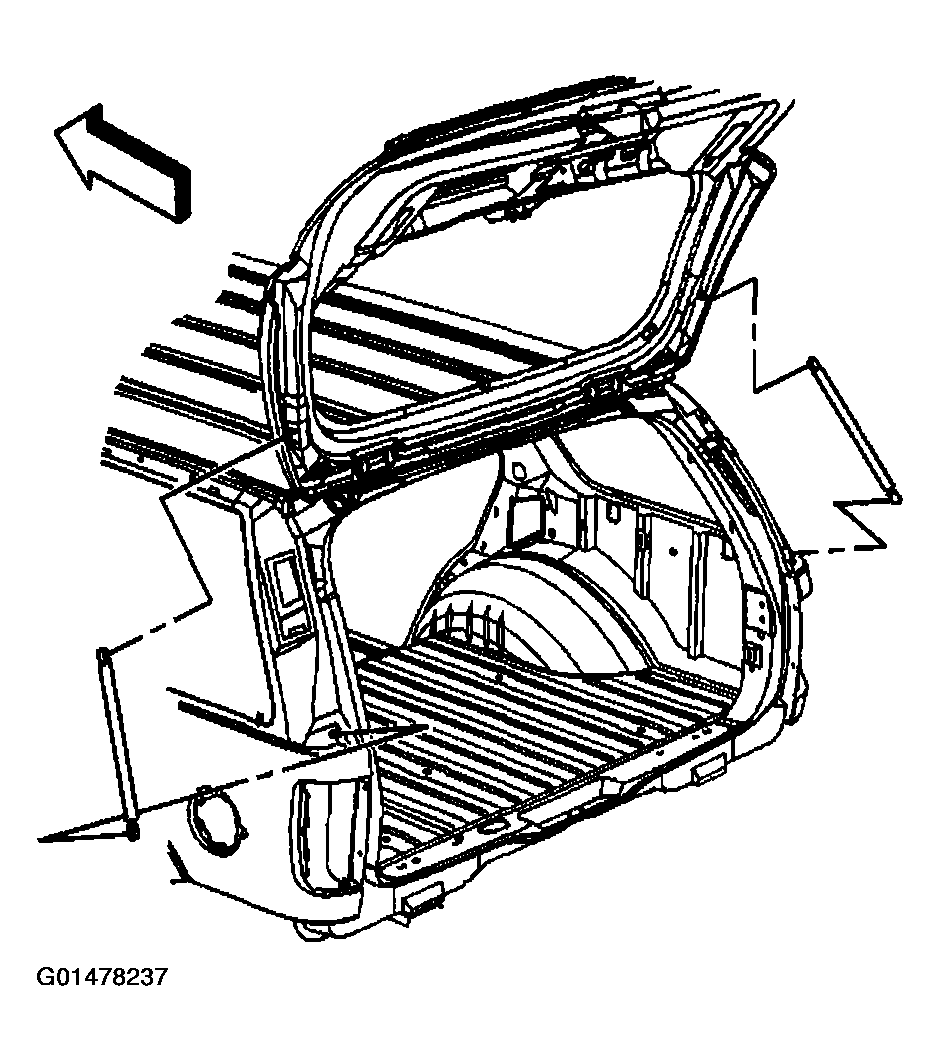

    Fig 2: Liftgate Struts
    G01478237Courtesy of GENERAL MOTORS CORP.
