Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.
  1. Open and support the liftgate window.
    NOTE: Refer to LIFTGATE ASSIST ROD NOTICE in Cautions and Notices.
  2. Remove the retainer from the hinge pin.

    The hinge pin is located at the upper end of the liftgate window strut.

    Discard the retainer.

  3. Remove the hinge pin from the upper end of the liftgate window strut.

    Discard the hinge pin.

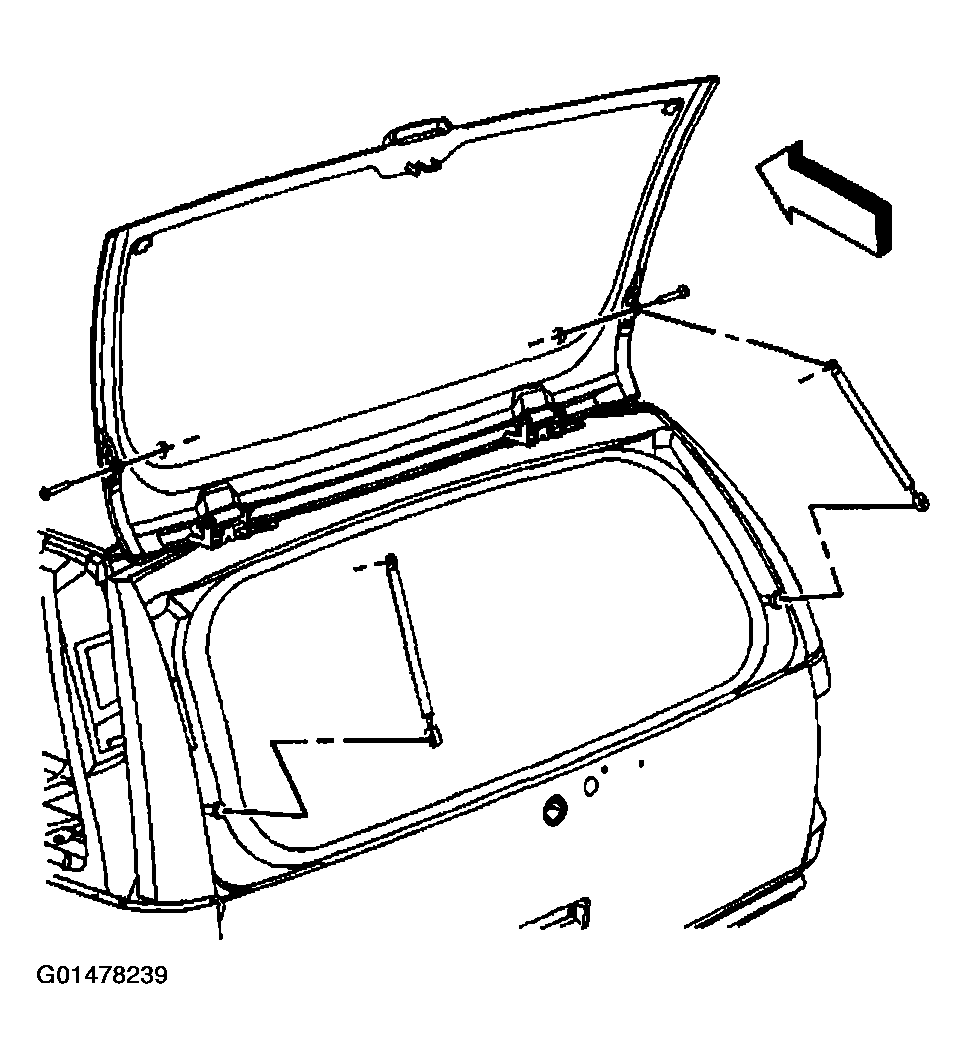

    Fig 1: Hinge Pin
    G01478239Courtesy of GENERAL MOTORS CORP.
  4. Lift up the retainer clips on the liftgate window struts using a small flat- bladed tool.
  5. Remove the lower end of the liftgate window struts from the ball joint.
  6. Remove the liftgate window struts from the liftgate window.
