Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open and support the endgate.
    NOTE: Refer to LIFTGATE ASSIST ROD NOTICE in Cautions and Notices.
  2. Lift up the retainer clips on the endgate struts using a small flat-bladed tool.
  3. Remove the upper end of the endgate struts from the ball joint.
  4. Remove the lower end of the endgate struts from the ball joint.
  5. Remove the endgate struts from the endgate.

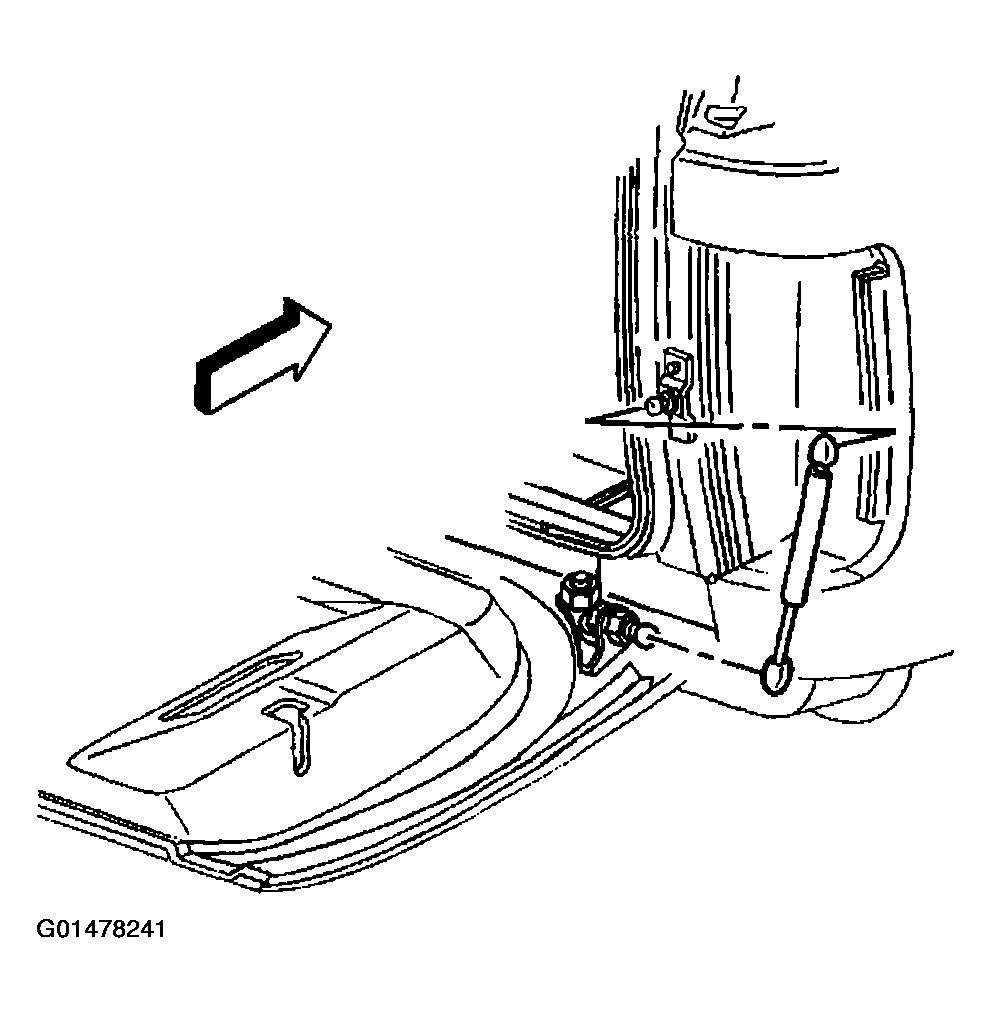

    Fig 1: Removing Endgate Struts From Endgate
    G01478241Courtesy of GENERAL MOTORS CORP.
