Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the push-pins retaining the sight shield to the vehicle frame.
  2. Remove the sight shield.

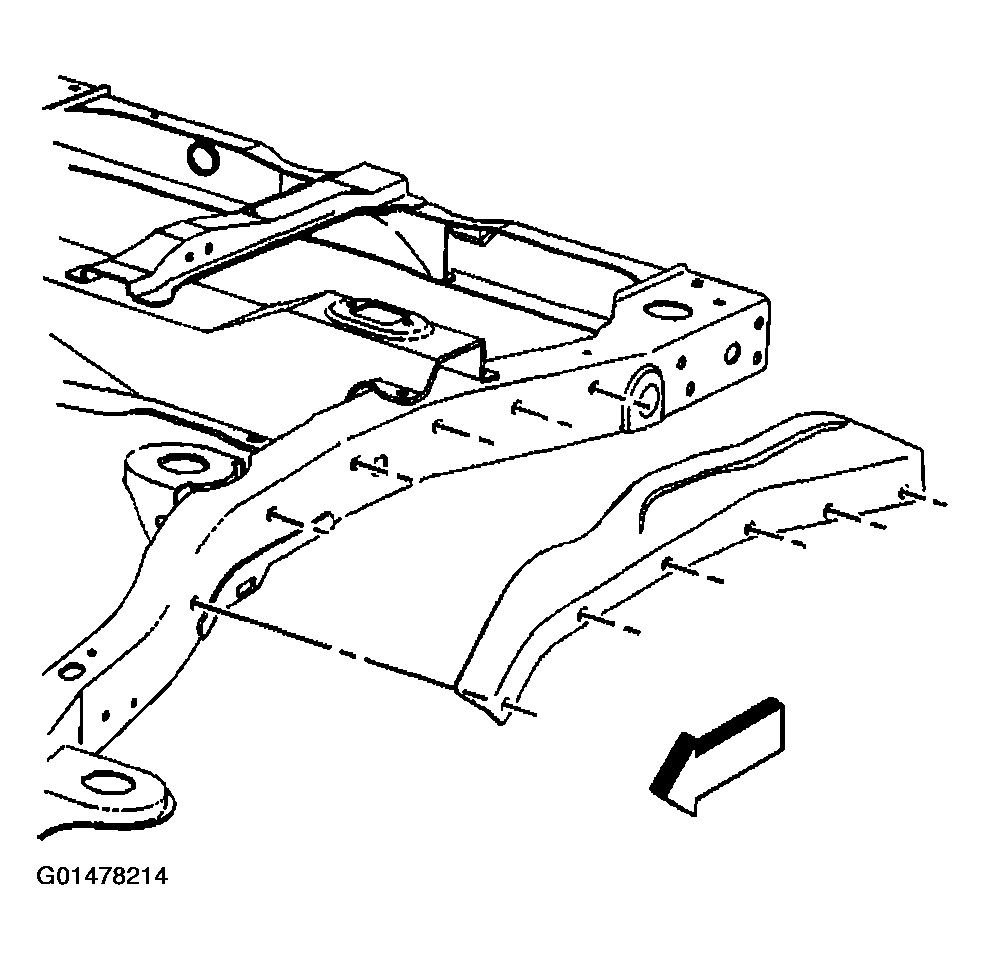

    Fig 1: Sight Shield
    G01478214Courtesy of GENERAL MOTORS CORP.
