Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the sight shield on the vehicle frame.
  2. Install the push-pin retainers through the sight shield into the frame.

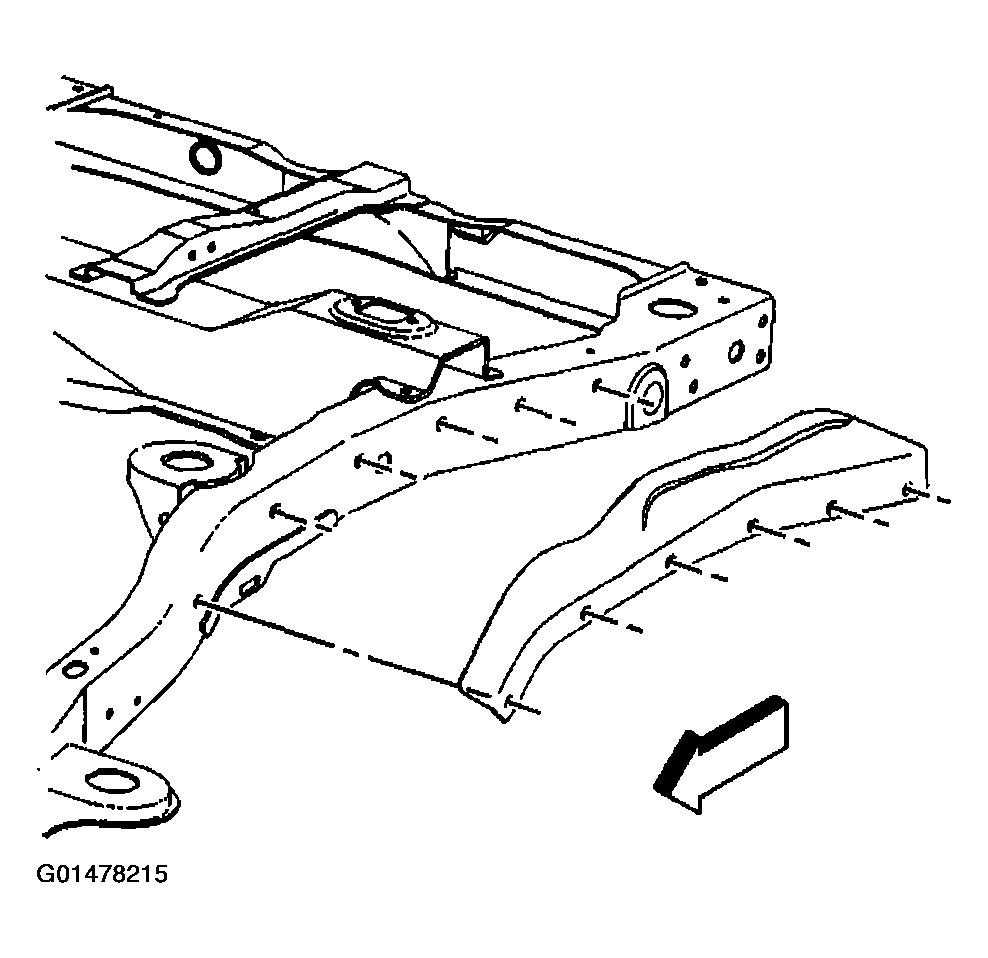

    Fig 1: Sight Shield
    G01478215Courtesy of GENERAL MOTORS CORP.
