Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the pressure relief ventilation valve assembly pressing into place until firmly seated.

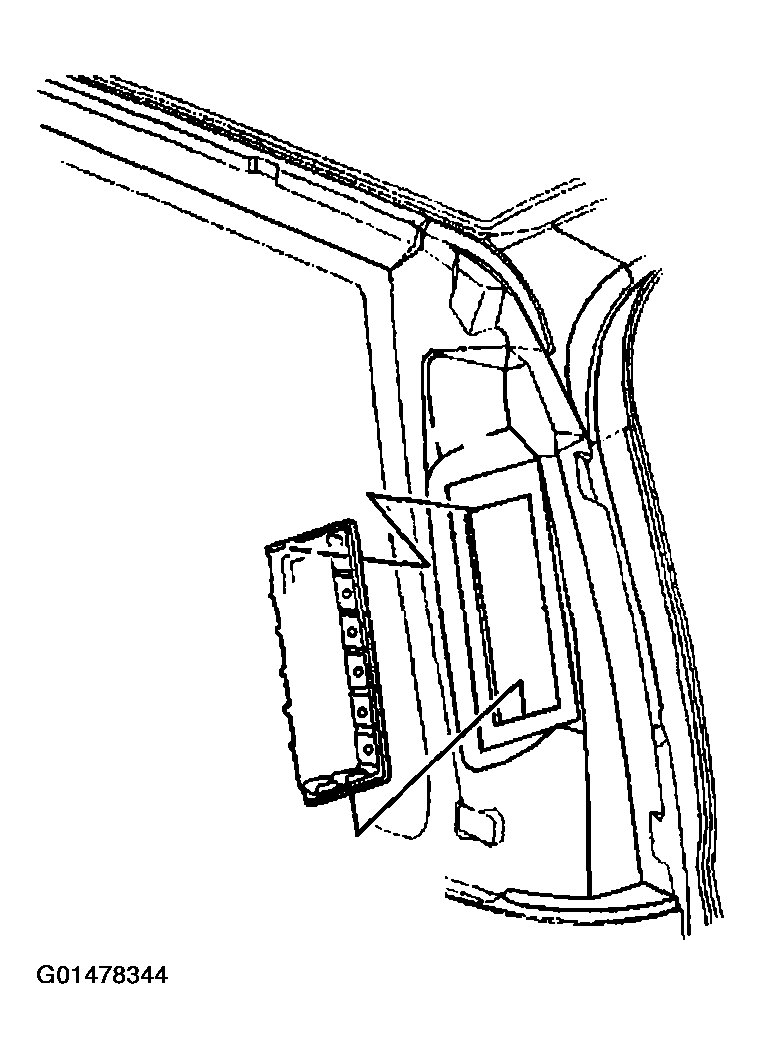

    Fig 1: Pressure Relief Ventilation Valve
    G01478344Courtesy of GENERAL MOTORS CORP.
  2. Install the molding to the quarter panel rear window (4-Door only).
  3. Install the molding fasteners to the quarter panel rear window (4-Door only).
  4. Install the body side stationary window (2-Door only). Refer to BODY SIDE STATIONARY WINDOW REPLACEMENT (UTILITY) or BODY SIDE STATIONARY WINDOW REPLACEMENT (PICKUP) in Stationary Windows.

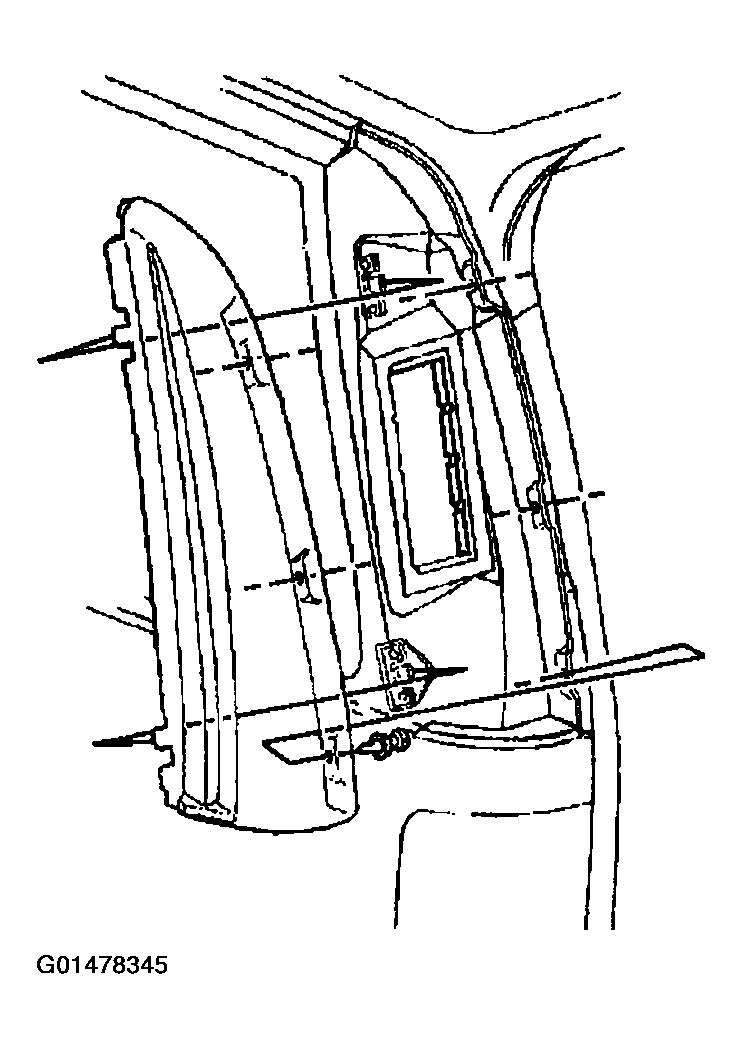

    Fig 2: Body Side Stationary Window
    G01478345Courtesy of GENERAL MOTORS CORP.
