Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unlatch the tonneau cover.
  2. Roll up the tonneau cover.
  3. Loosen the header bolts (4).
  4. Slide the header guide away from the side rail flange.
  5. Remove the tonneau cover assembly (1).
  6. Remove the clamps (3).
  7. Remove the side rails (2).

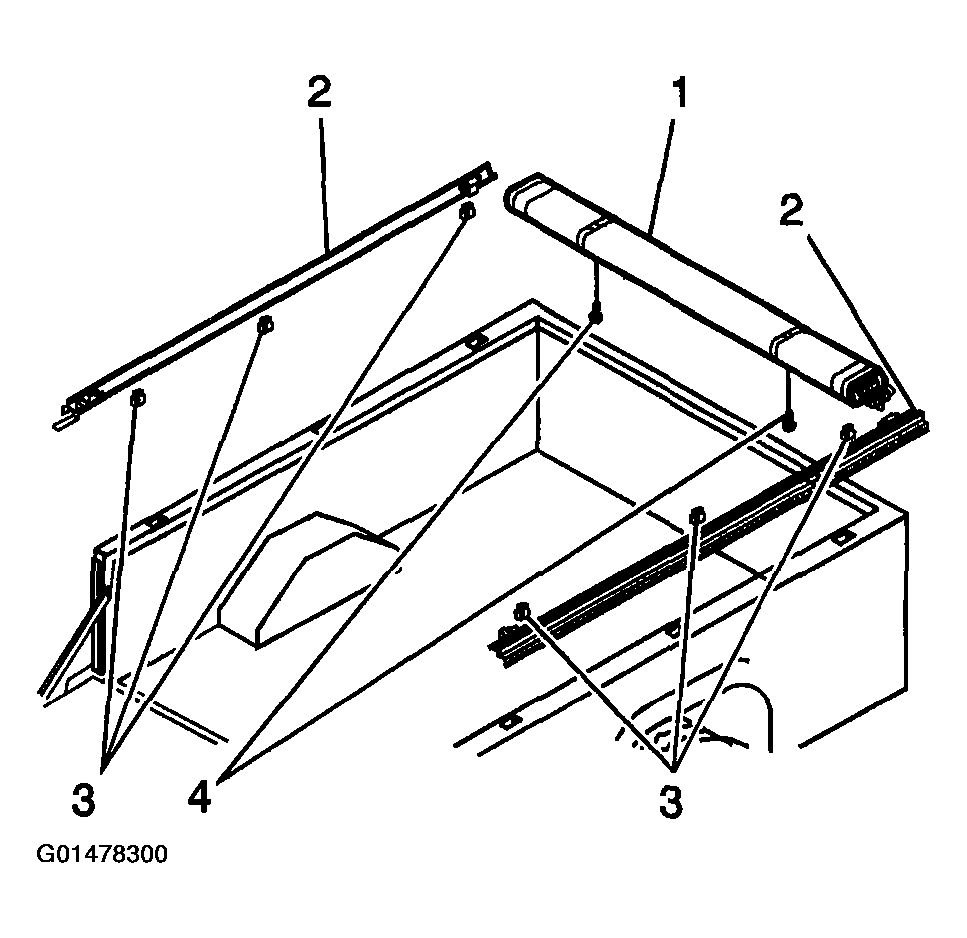

    Fig 1: Side Rails
    G01478300Courtesy of GENERAL MOTORS CORP.
