Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use a flat-bladed tool in order to pry the step upward.
  2. Remove the step pad from the panel.

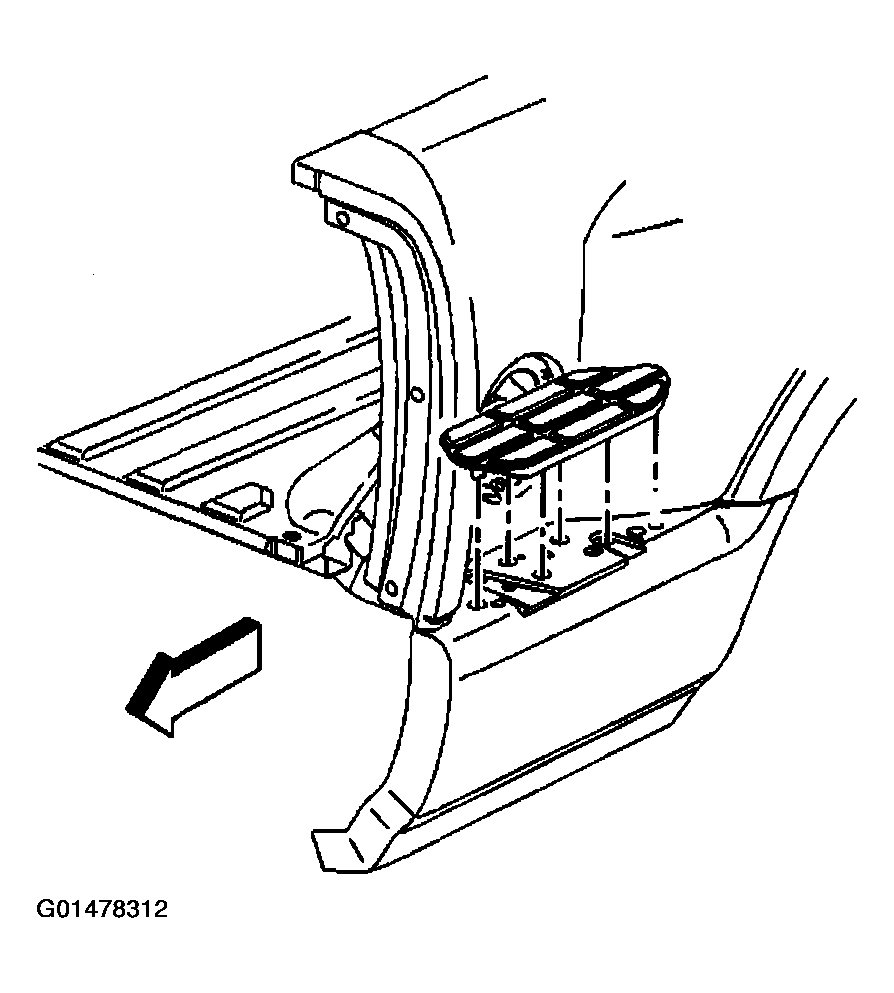

    Fig 1: Removing Step Pad From panel
    G01478312Courtesy of GENERAL MOTORS CORP.
  3. Remove the rear brace from the step panel.
  4. Remove the forward brace from the step panel and the forward support bracket.

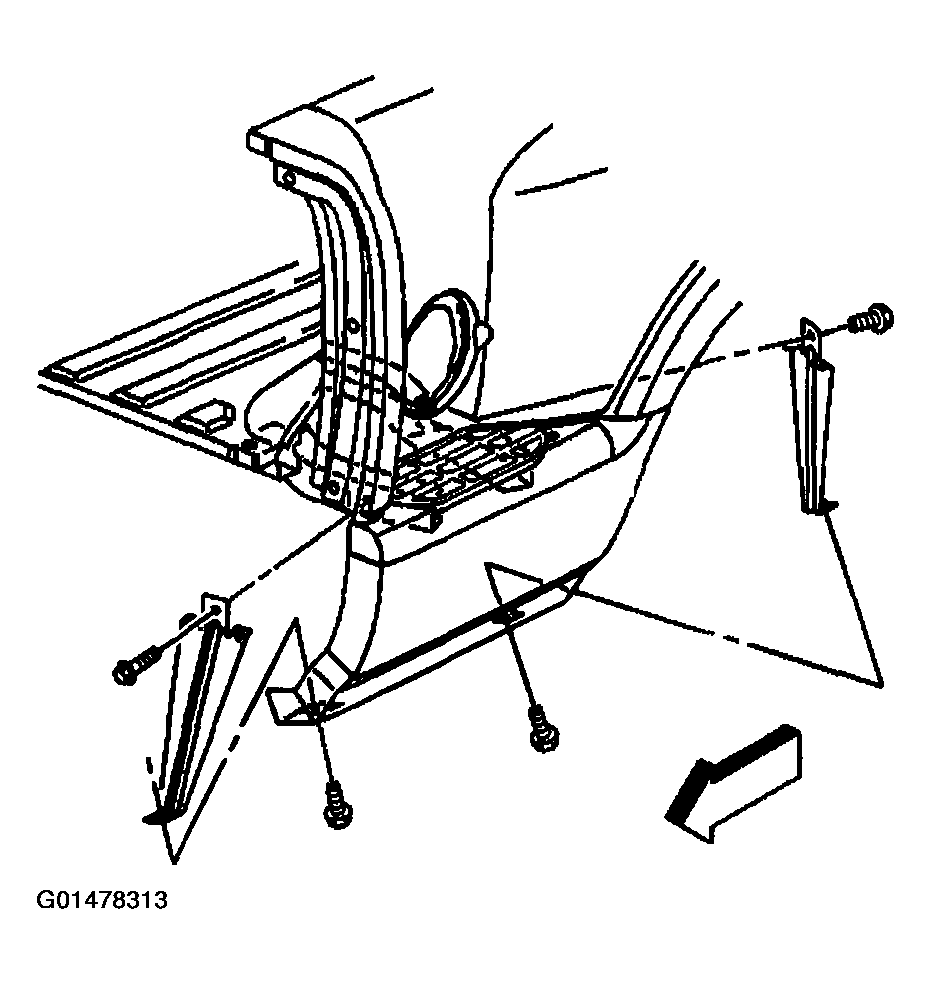

    Fig 2: Removing Rear Brace From Step Panel
    G01478313Courtesy of GENERAL MOTORS CORP.
  5. Remove the screws that secure the step panel to the forward and rear support brackets.

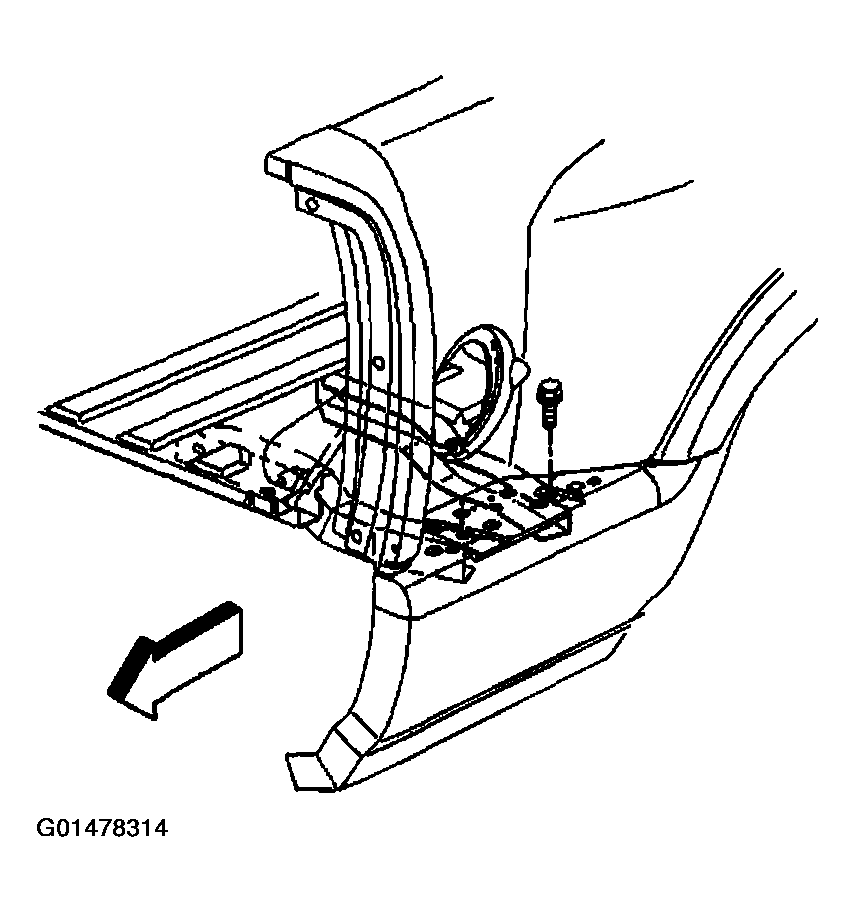

    Fig 3: Removing Screws That Secure Step Panel
    G01478314Courtesy of GENERAL MOTORS CORP.
  6. Remove the retainers that secure the step panel to the outer panel.
  7. Remove the step panel from the side outer panel.

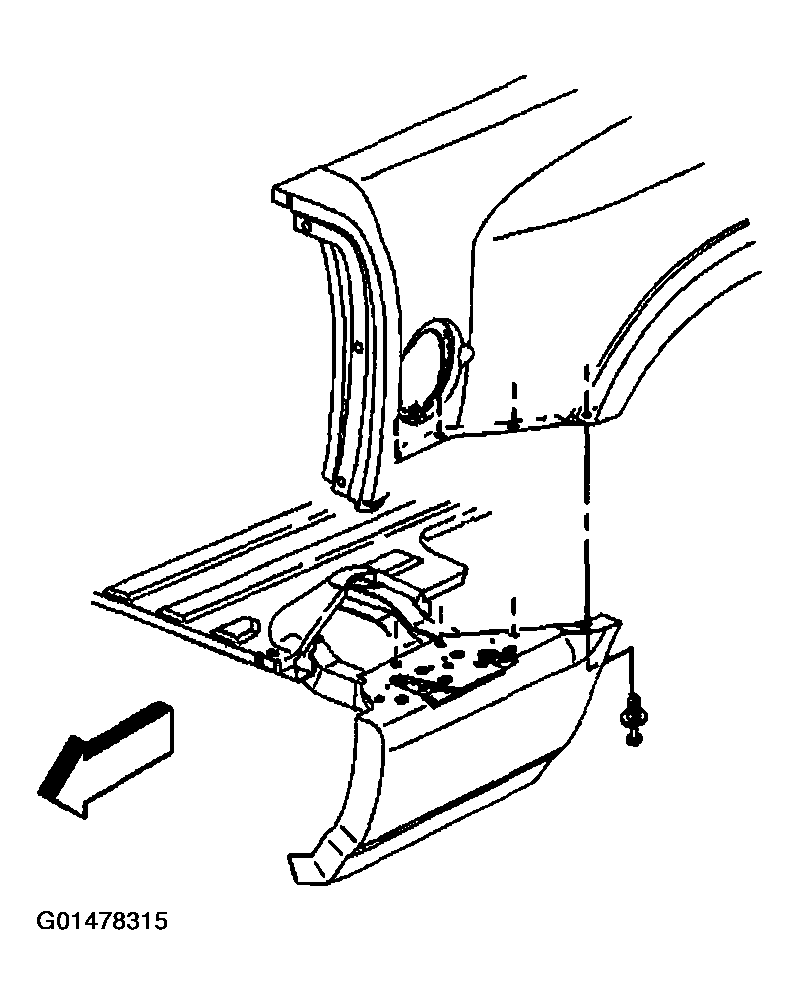

    Fig 4: Removing Step Panel From Side Outer Panel
    G01478315Courtesy of GENERAL MOTORS CORP.
  8. Remove the nuts that secure the forward and rear support brackets to the pickup box cross sills.

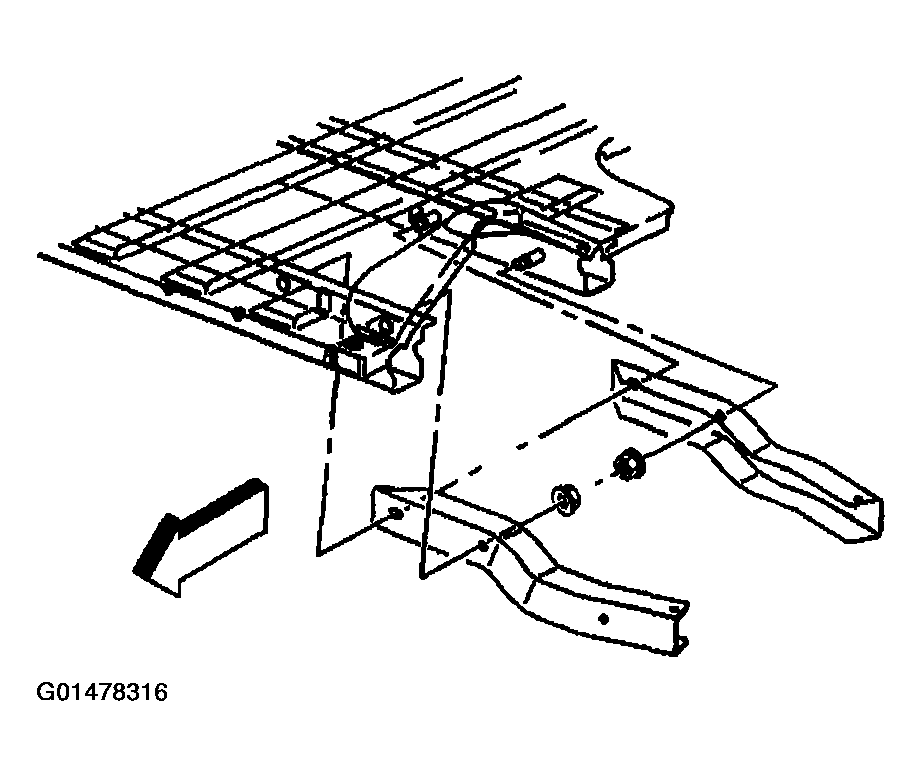

    Fig 5: Rear Support Brackets
    G01478316Courtesy of GENERAL MOTORS CORP.
