Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Remove the retaining screws.

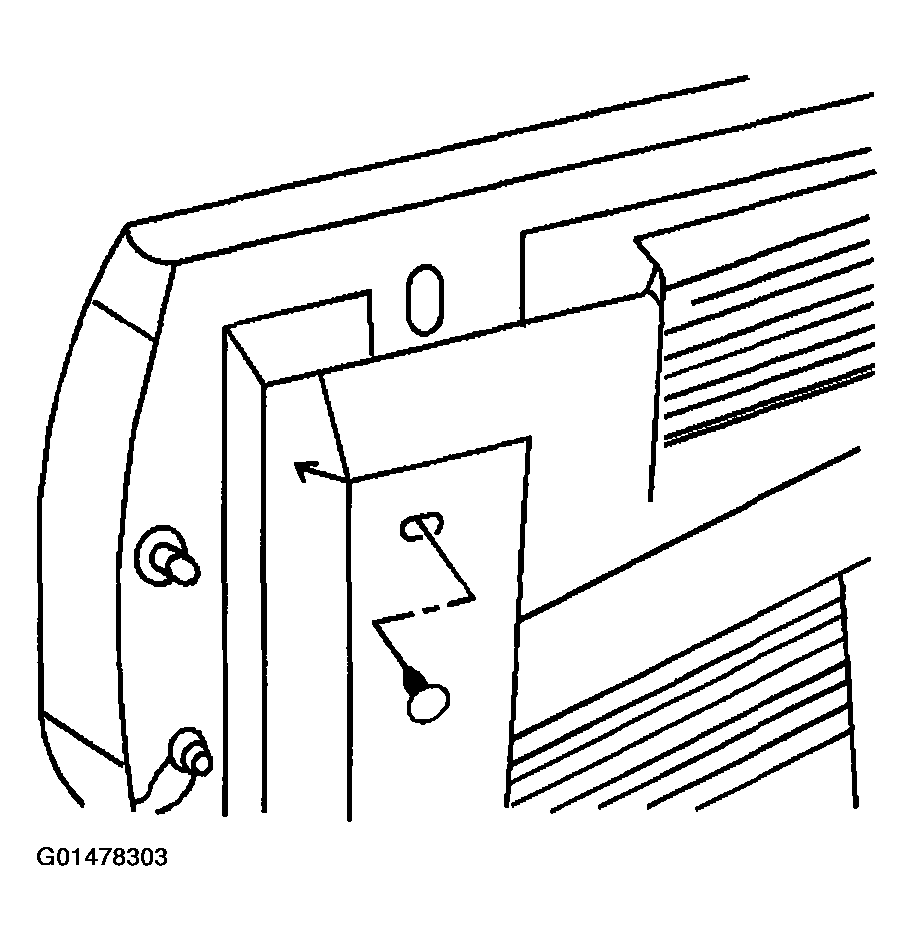

Fig 1: Pickup Box Bedliner Retaining Screws
Courtesy of GENERAL MOTORS CORP.
Standing at the rear of pickup, lift in the center of a pickup box bedliner and remove from under the bedrails.

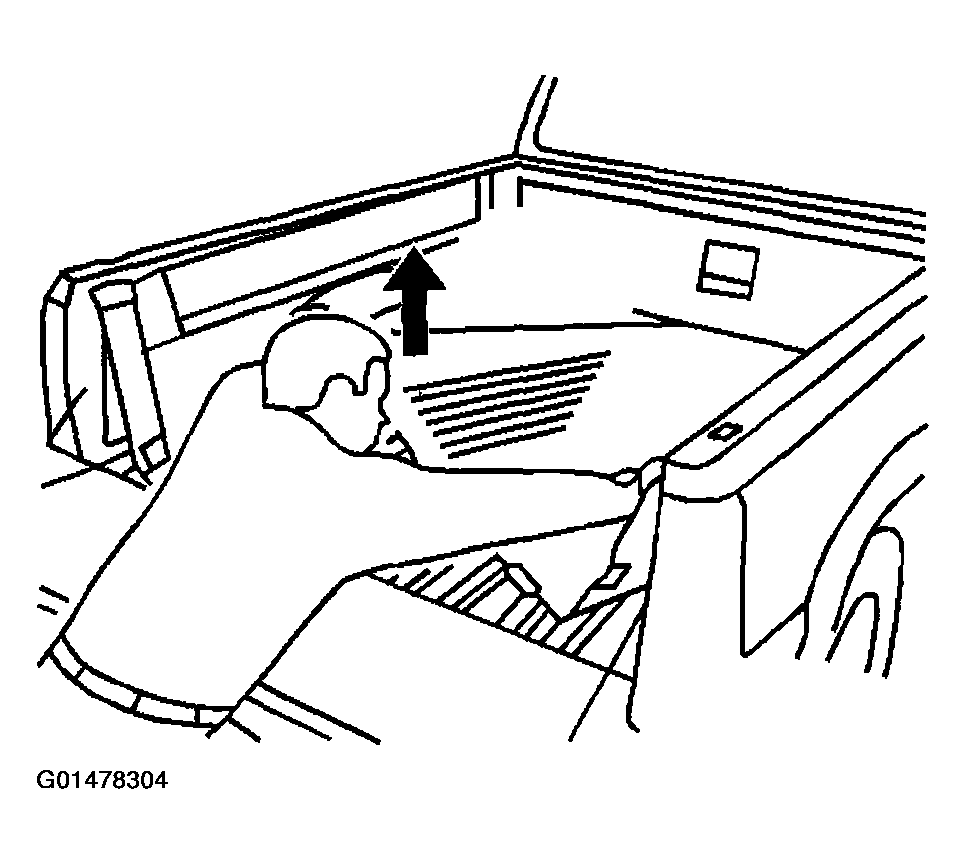

Fig 2: Pickup Box Bedliner
Courtesy of GENERAL MOTORS CORP.
Remove the bedliner from bed.

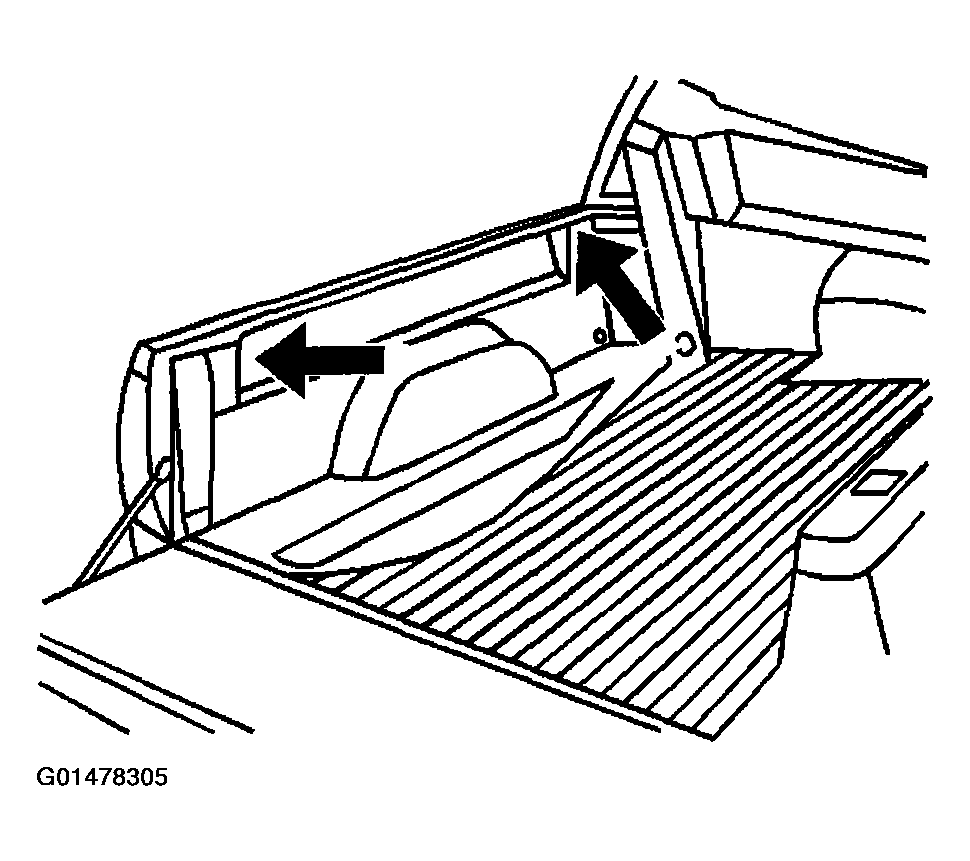

Fig 3: Removing Bedliner From Bed
Courtesy of GENERAL MOTORS CORP.
Remove retainers from tailgate liner and two latch bolts.
Remover liner from tailgate.

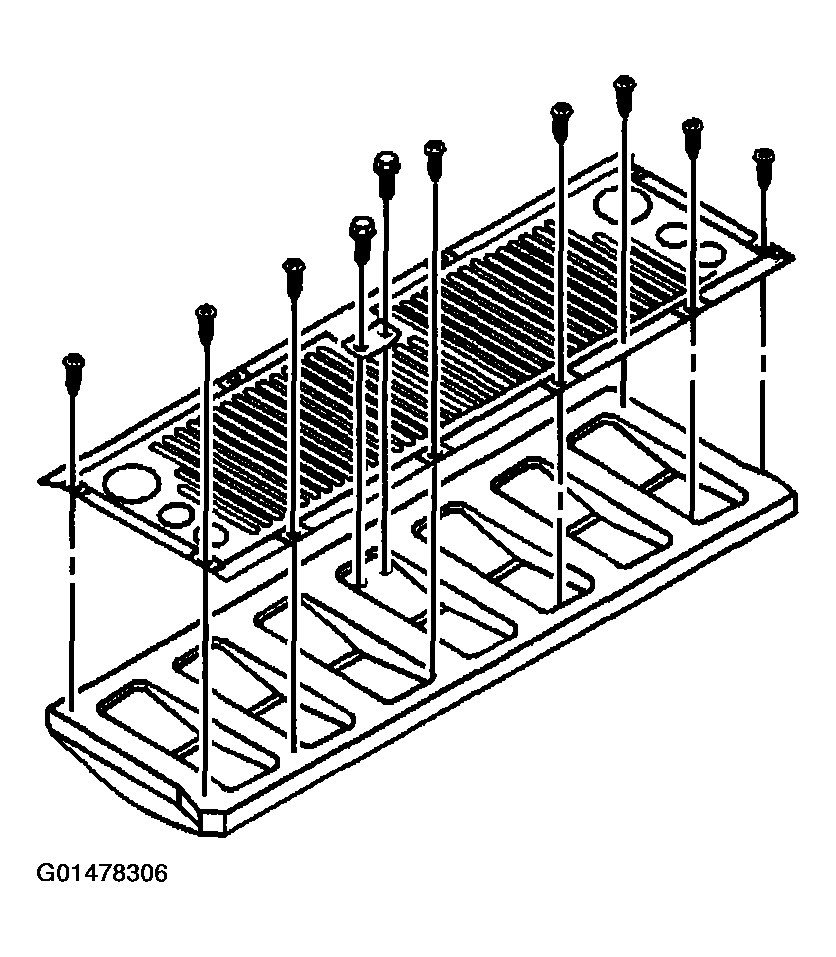

Fig 4: Removing Liner From Tailgate
Courtesy of GENERAL MOTORS CORP.
