Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the liftgate striker.
  2. Install any spacers to the vehicle.
  3. Install the liftgate striker backing plate.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the bolts that retain the liftgate striker to the vehicle.

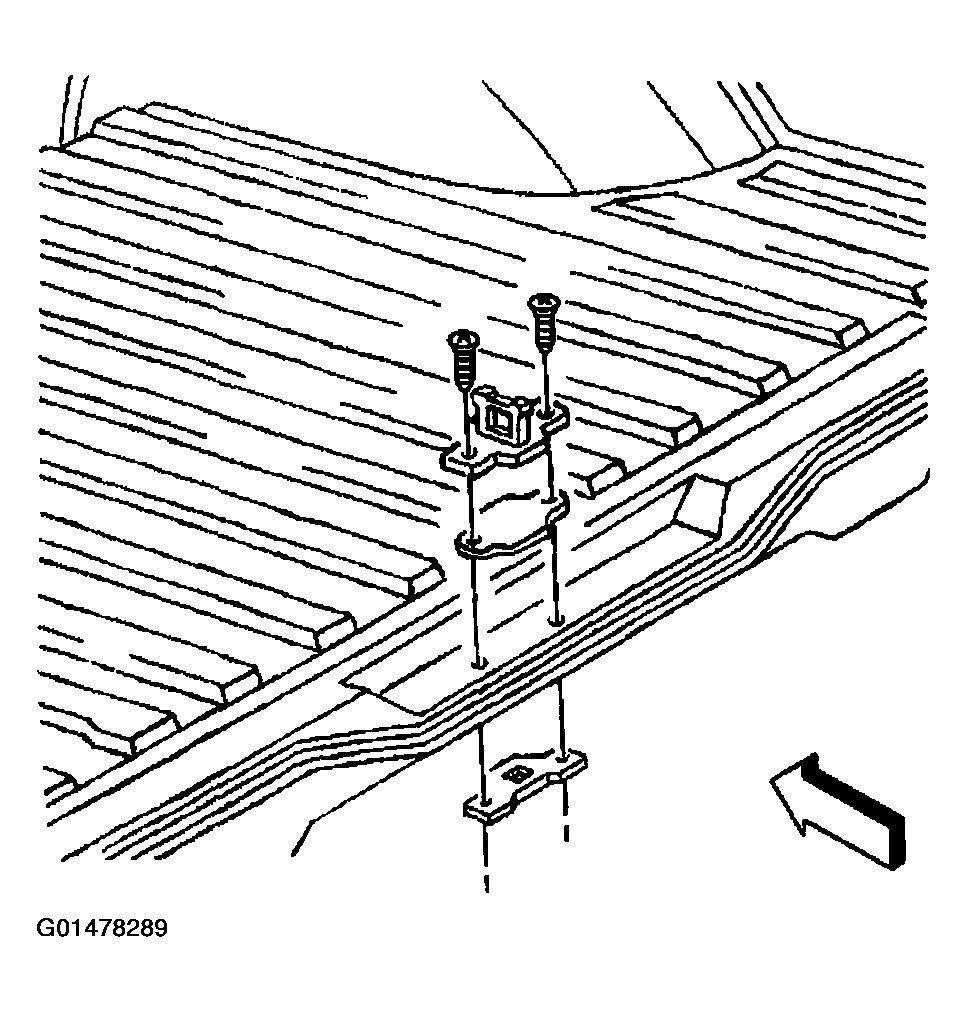

    Fig 1: Liftgate Striker
    G01478289Courtesy of GENERAL MOTORS CORP.

    Tighten

    Tighten the bolts to 22 N.m (16 lb ft).
