Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the striker.
  2. Install the spacer (if equipped).
  3. Install the upper striker bolt.

    Rotate the lower striker bolt until the upper threaded hole is properly aligned in order to ensure that the backing plate is in the correct position.

  4. Remove the lower bolt.
  5. Rotate the striker and the spacer (if equipped) in order to align the lower threaded hole in the striker backing plate.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  6. Install the lower striker bolt.

    Tighten

    Tighten the bolts to 22 N.m (16 lb ft).

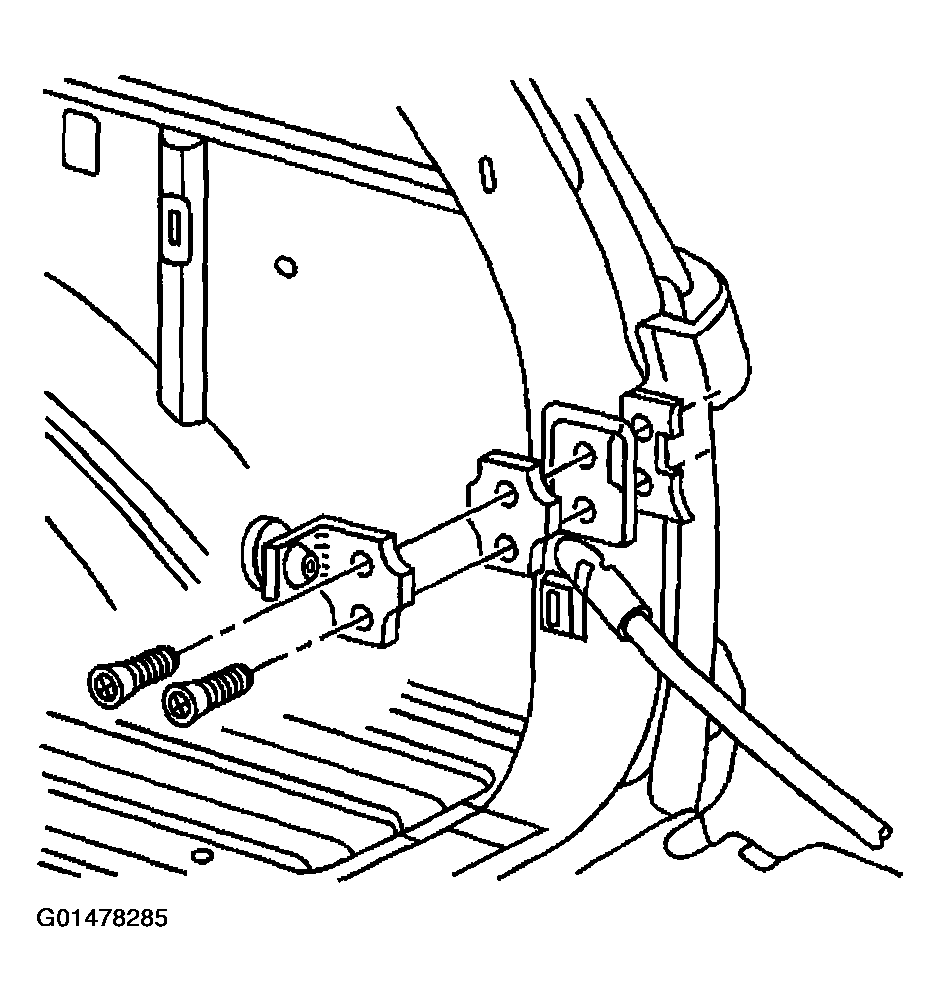

    Fig 1: Striker
    G01478285Courtesy of GENERAL MOTORS CORP.
