Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lock cylinder to the endgate.
  2. Install the clip that retains the endgate lock cylinder to the endgate.
  3. Connect the electrical connectors, as needed.
  4. Remove the endgate window latch support. Refer to LATCH SUPPORT REPLACEMENT - END GATE WINDOW .

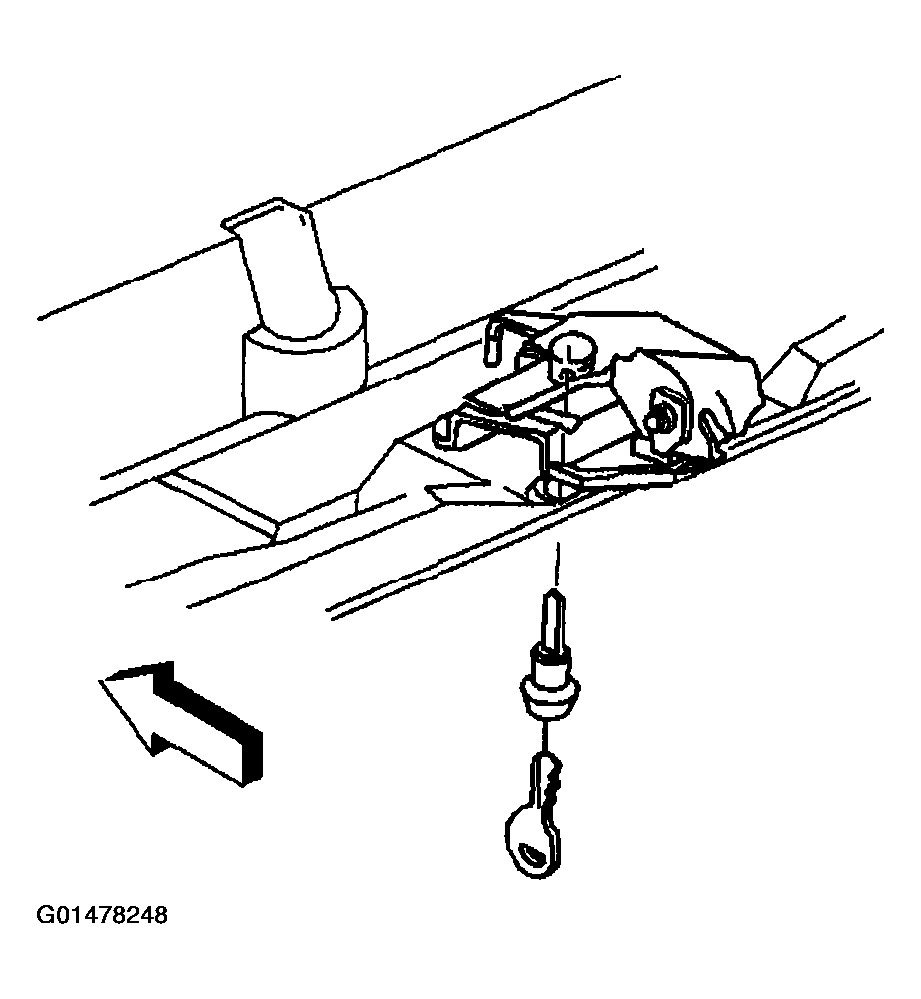

    Fig 1: Installing Lock Cylinder To Endgate
    G01478248Courtesy of GENERAL MOTORS CORP.
