Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the endgate window release actuator to the endgate cover.
  2. Install the rivets that retain the endgate window release actuator to the endgate cover using the J 34940.
  3. Connect the electrical connectors, as needed.
  4. Install the endgate cover. Refer to END GATE COVER REPLACEMENT .

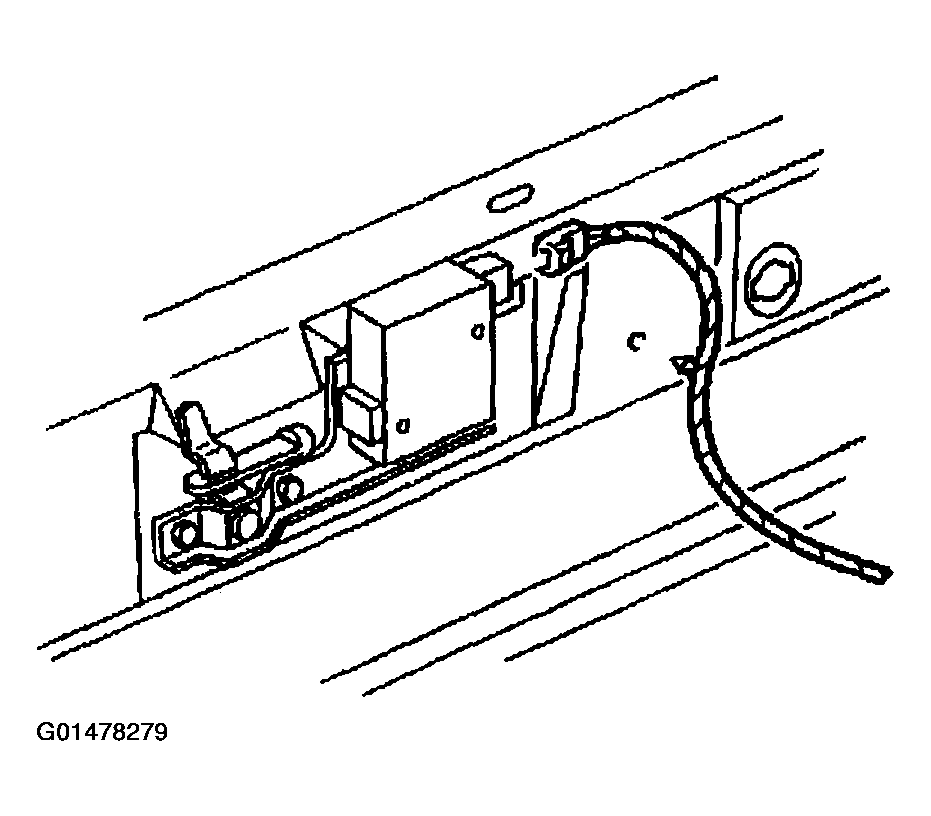

    Fig 1: Connecting Electrical Connectors
    G01478279Courtesy of GENERAL MOTORS CORP.
