Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the liftgate window. Refer to WINDOW REPLACEMENT - LIFT GATE .
  2. Open the liftgate.
  3. Support the liftgate.
  4. Remove the roof rear header garnish molding. Refer to GARNISH MOLDING REPLACEMENT -- REAR UPPER in Interior Trim.
  5. Disconnect the electrical connectors, as needed.
  6. Disconnect the liftgate window washer fluid hose.
  7. Remove the liftgate struts. Refer to STRUT REPLACEMENT - LIFT GATE .
  8. Remove the clips that retain the liftgate to the hinges.
  9. With an assistant, slide the liftgate to the right in order to remove the liftgate from the vehicle.

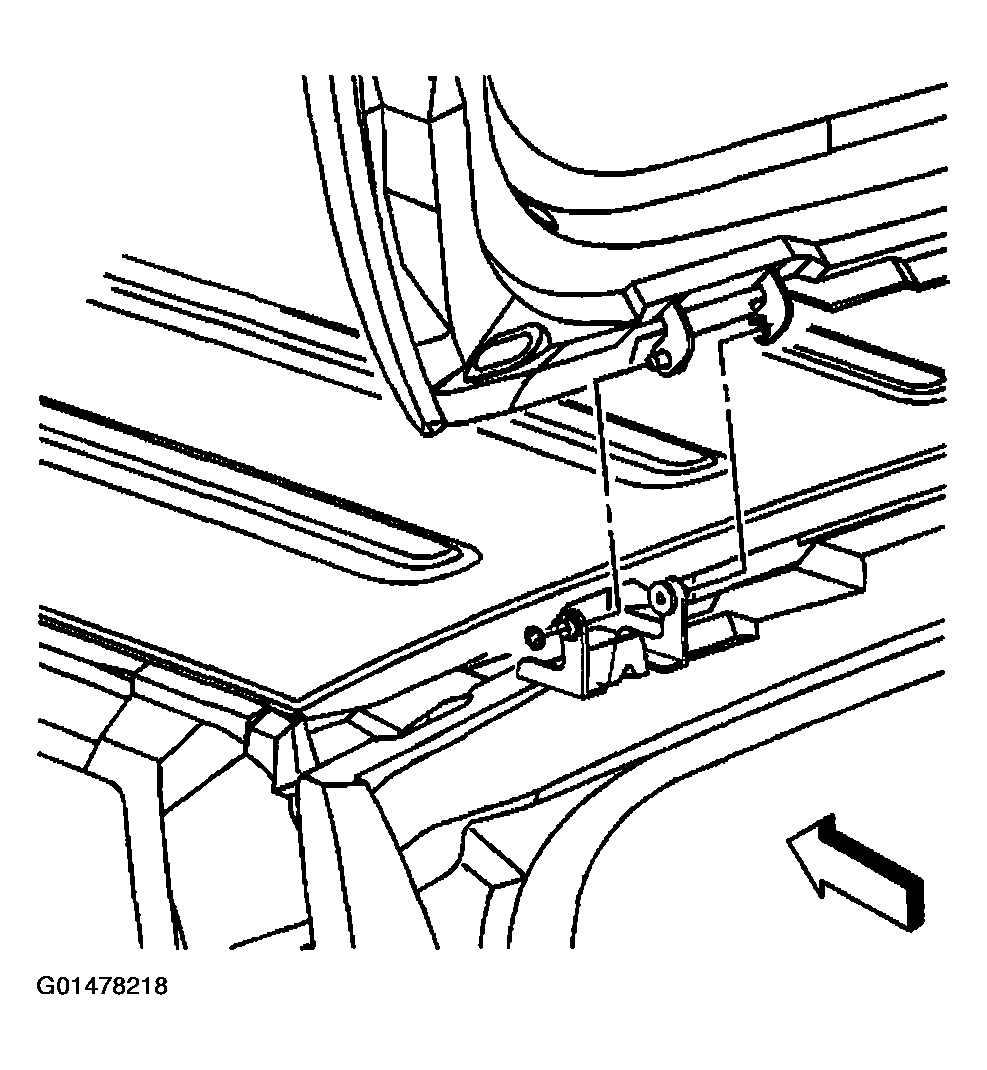

    Fig 1: Lift Gate
    G01478218Courtesy of GENERAL MOTORS CORP.
