Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Close the liftgate.
  2. Slide the flange of the applique over the mating flange of the endgate.
  3. Open the liftgate.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the screw that retains the liftgate quarter upper applique to the liftgate.

    Tighten

    Tighten the screw to 5 N.m (44 lb ft).

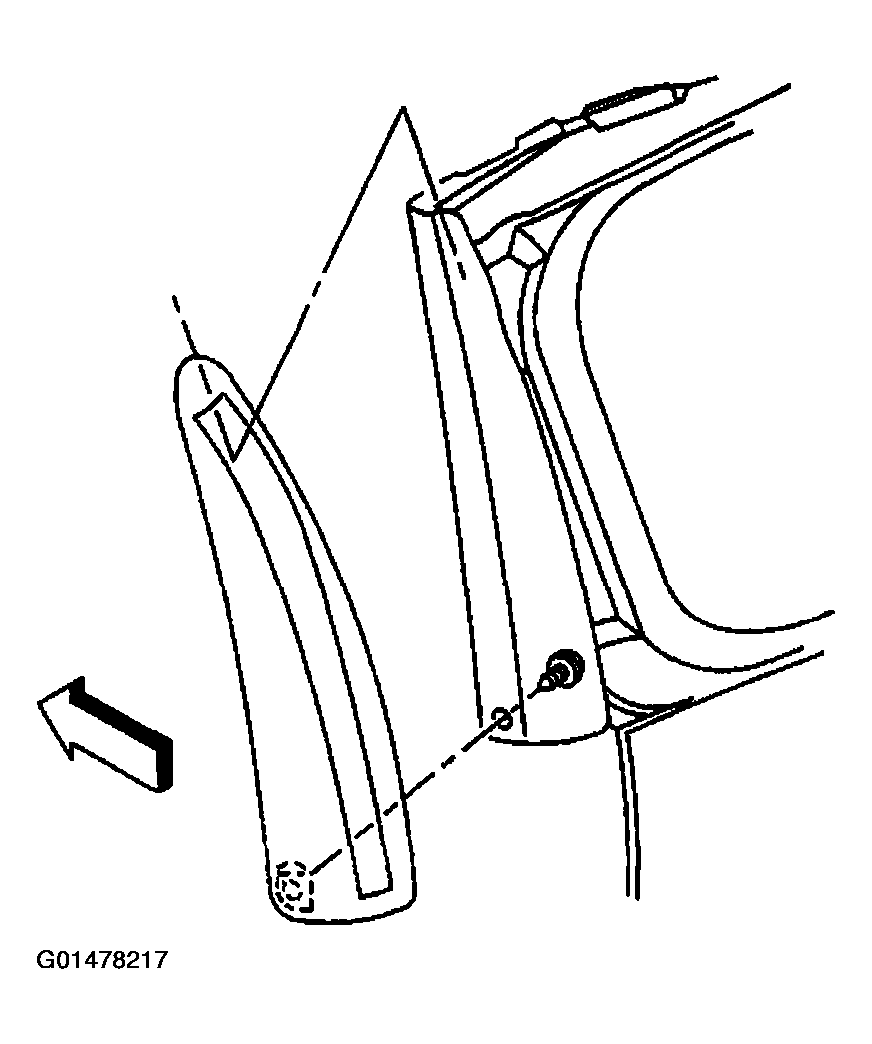

    Fig 1: Liftgate Quarter Upper Applique
    G01478217Courtesy of GENERAL MOTORS CORP.
