Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the endgate window latch. Refer to LATCH REPLACEMENT - END GATE WINDOW .
  2. Disconnect the electrical connectors as needed.
  3. Mark the location of the endgate window latch support in order to ensure proper alignment during installation.
  4. Remove the bolts that retain the endgate window latch support to the liftgate.
  5. Remove the endgate window latch support from the endgate.

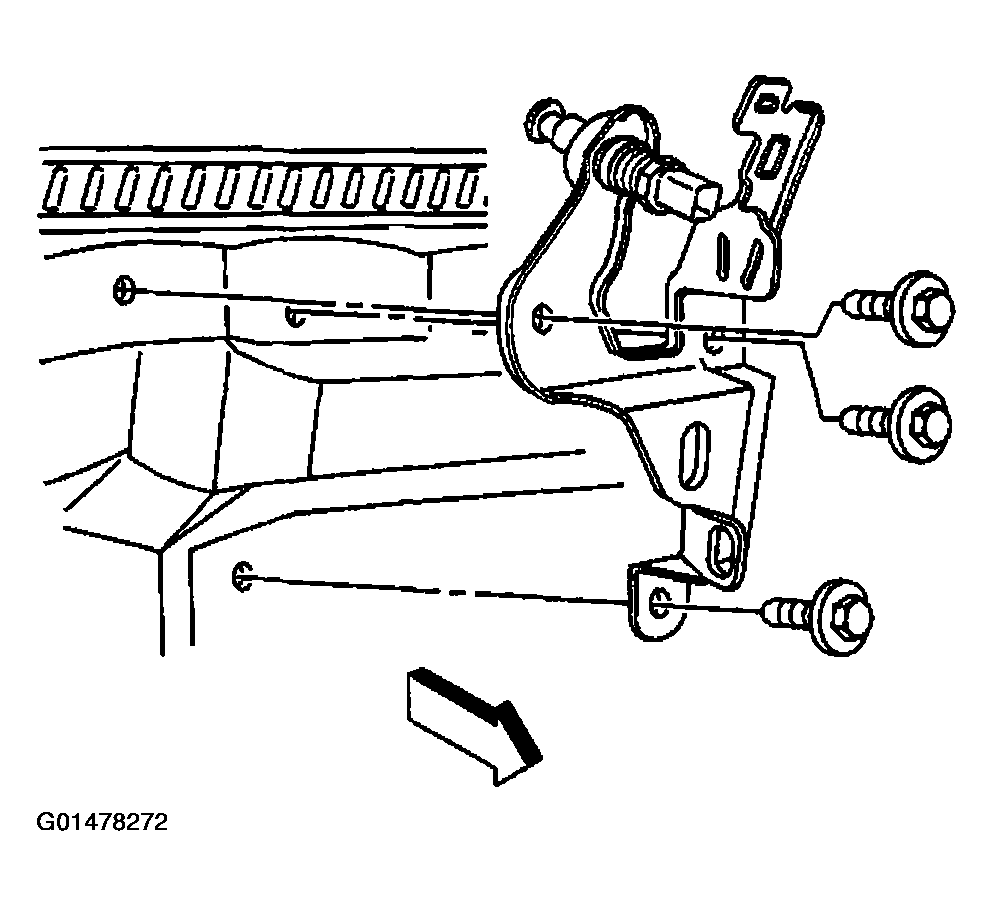

    Fig 1: Endgate Window Latch Support
    G01478272Courtesy of GENERAL MOTORS CORP.
