Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the bellcrank. Refer to BELLCRANK REPLACEMENT - LIFT GATE .
  2. Disconnect the electrical connectors, as needed.
  3. Remove the screws that retain the liftgate latch to the liftgate.
  4. Remove the liftgate latch from the liftgate.

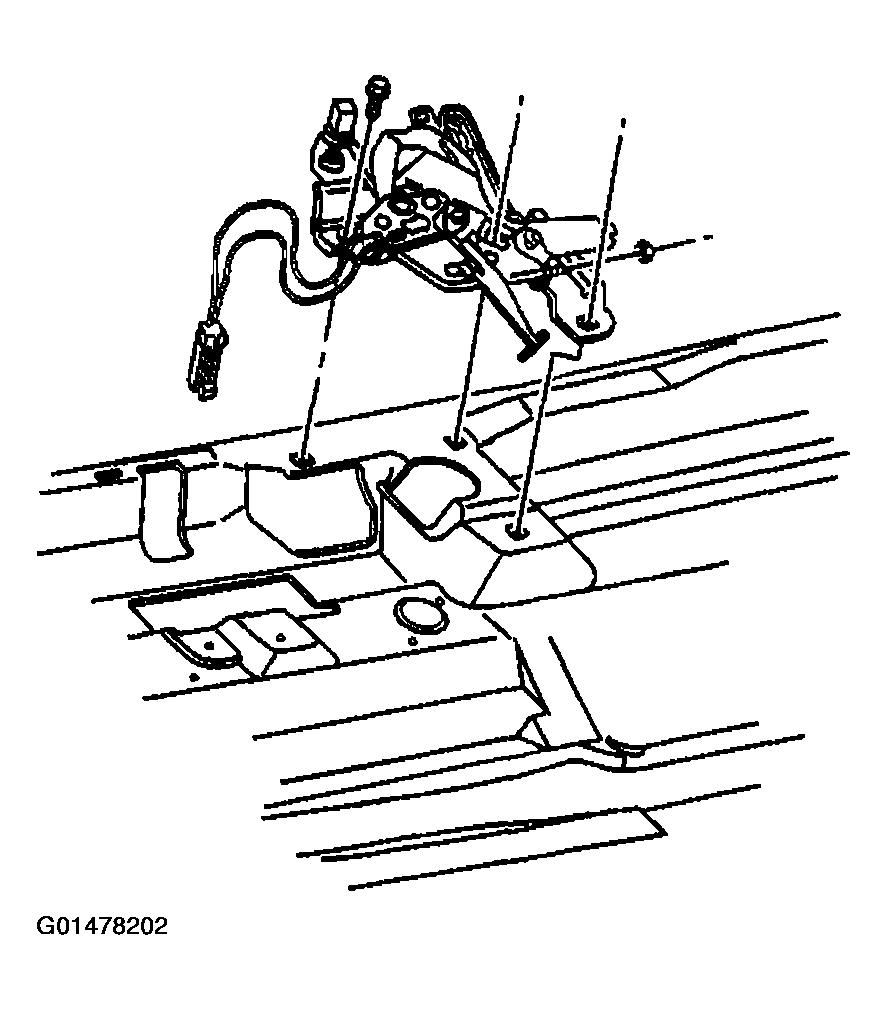

    Fig 1: Removing Liftgate Latch From Liftgate
    G01478202Courtesy of GENERAL MOTORS CORP.
