Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the liftgate latch to the liftgate.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the screws that retain the liftgate latch to the liftgate.

    Tighten

    Tighten the screws to 9 N.m (80 lb in).

  3. Connect the electrical connectors, as needed.
  4. Install the bellcrank. Refer to BELLCRANK REPLACEMENT - LIFT GATE .

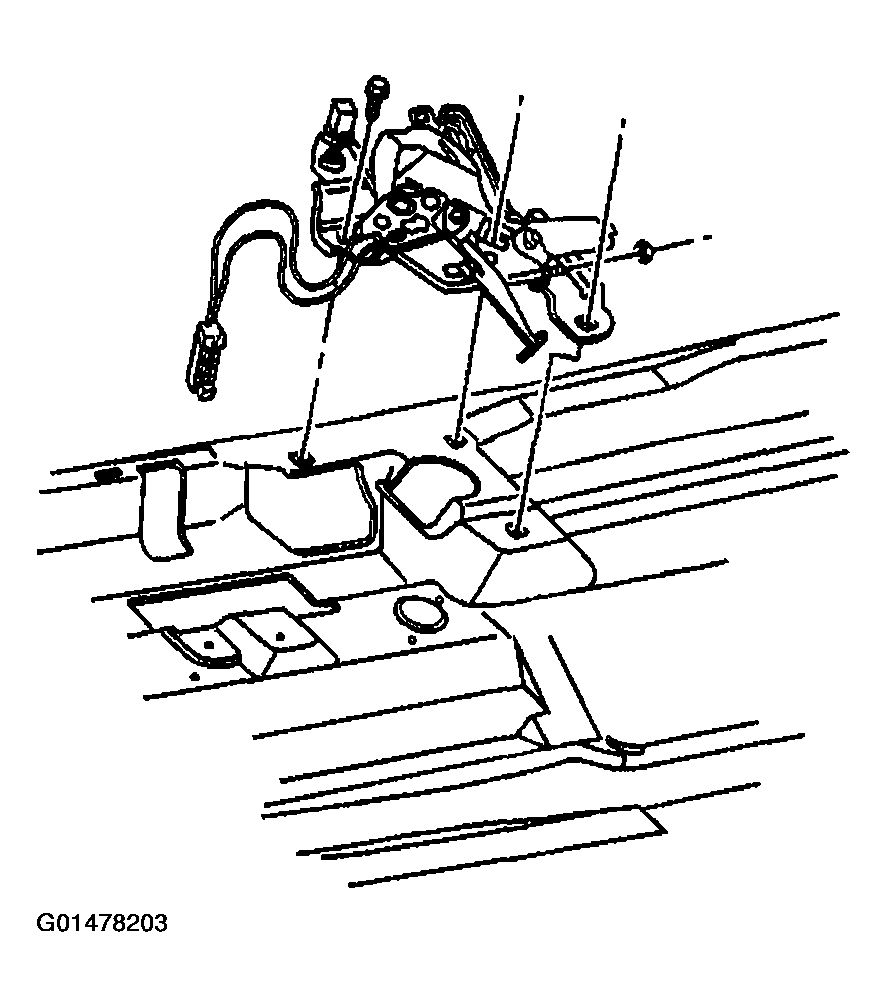

    Fig 1: Installing Liftgate Latch To Liftgate
    G01478203Courtesy of GENERAL MOTORS CORP.
