Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the liftgate trim panel. Refer to TRIM PANEL REPLACEMENT - LIFT GATE .
  2. Mark the location of the liftgate latch in order to ensure proper alignment during installation.
  3. Disconnect the electrical connectors, as needed.
  4. Remove the nuts that retain the liftgate window latch to the latch support.
  5. Remove the liftgate window latch from the liftgate window latch support.

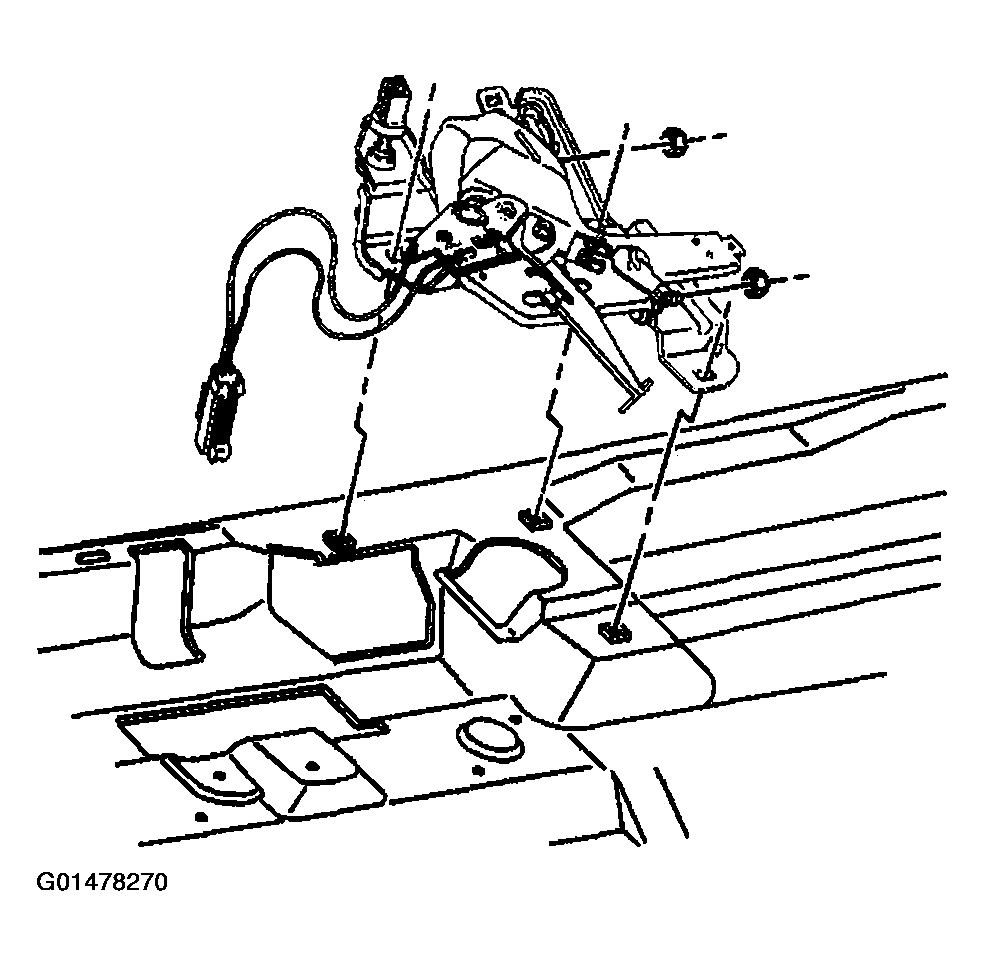

    Fig 1: Liftgate Window Latch
    G01478270Courtesy of GENERAL MOTORS CORP.
