Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the endgate.
  2. Remove the endgate trim panel. Refer to TRIM PANEL REPLACEMENT - END GATE .
  3. Remove the endgate latch rod from the endgate latch.
  4. Remove the bolts that retain the endgate latch to the endgate.
  5. Remove the endgate latch from the vehicle.

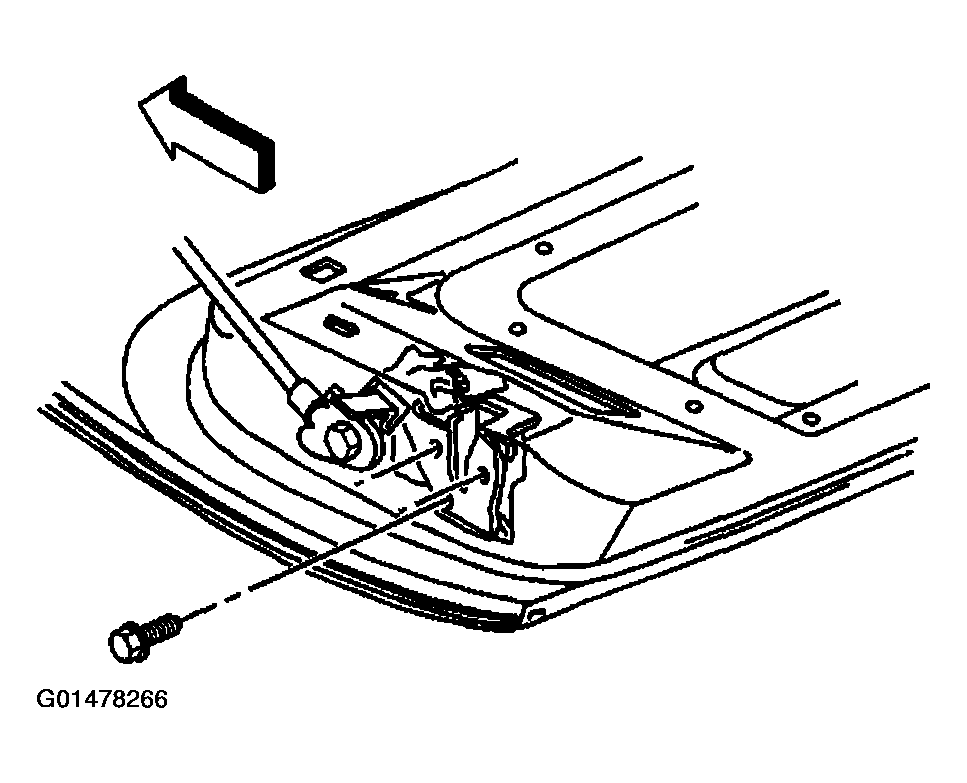

    Fig 1: Removing Endgate Latch From Vehicle
    G01478266Courtesy of GENERAL MOTORS CORP.
