Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the endgate latch to the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the bolts that retain the endgate latch to the endgate.

    Tighten

    Tighten the bolts to 10 N.m (88 lb in).

  3. Install the endgate latch rod to the endgate latch.
  4. Install the endgate trim panel. Refer to TRIM PANEL REPLACEMENT - END GATE .

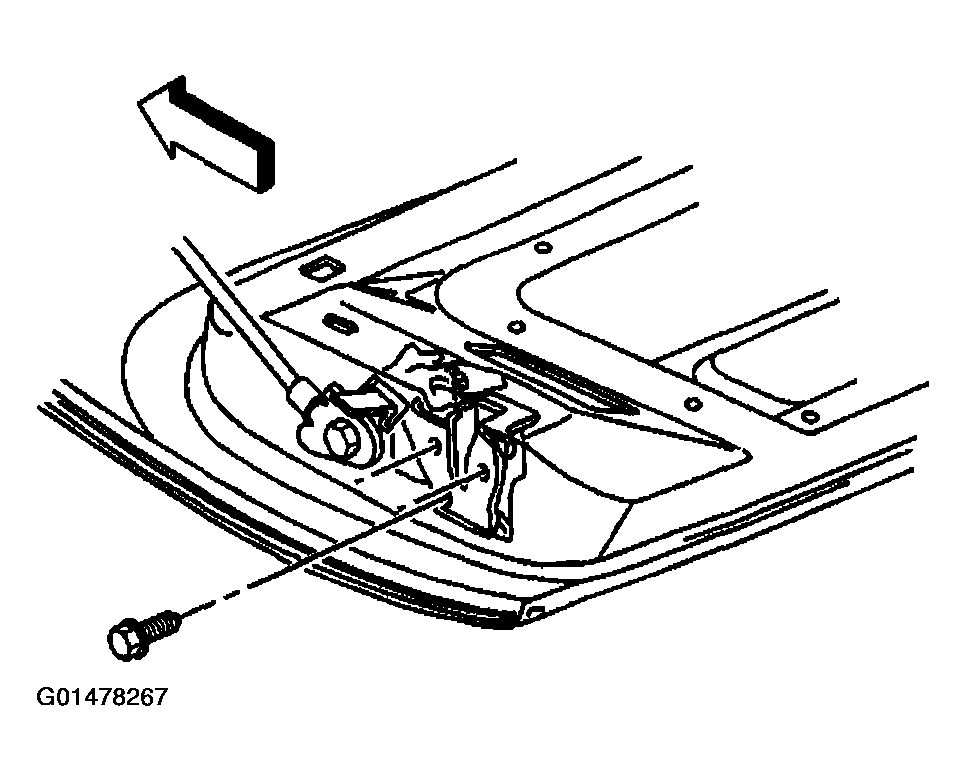

    Fig 1: Installing Endgate Latch To Vehicle
    G01478267Courtesy of GENERAL MOTORS CORP.
