Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the latch assembly nut or nuts.

    Tighten

    Tighten the nuts to 10 N.m (89 lb in).

    Inspect the window panel for proper operation.

  2. Install the endgate cover (if removed). Refer to END GATE COVER REPLACEMENT .
  3. Install the endgate or the liftgate trim panel. Refer to TRIM PANEL REPLACEMENT - END GATE  or TRIM PANEL REPLACEMENT - LIFT GATE .

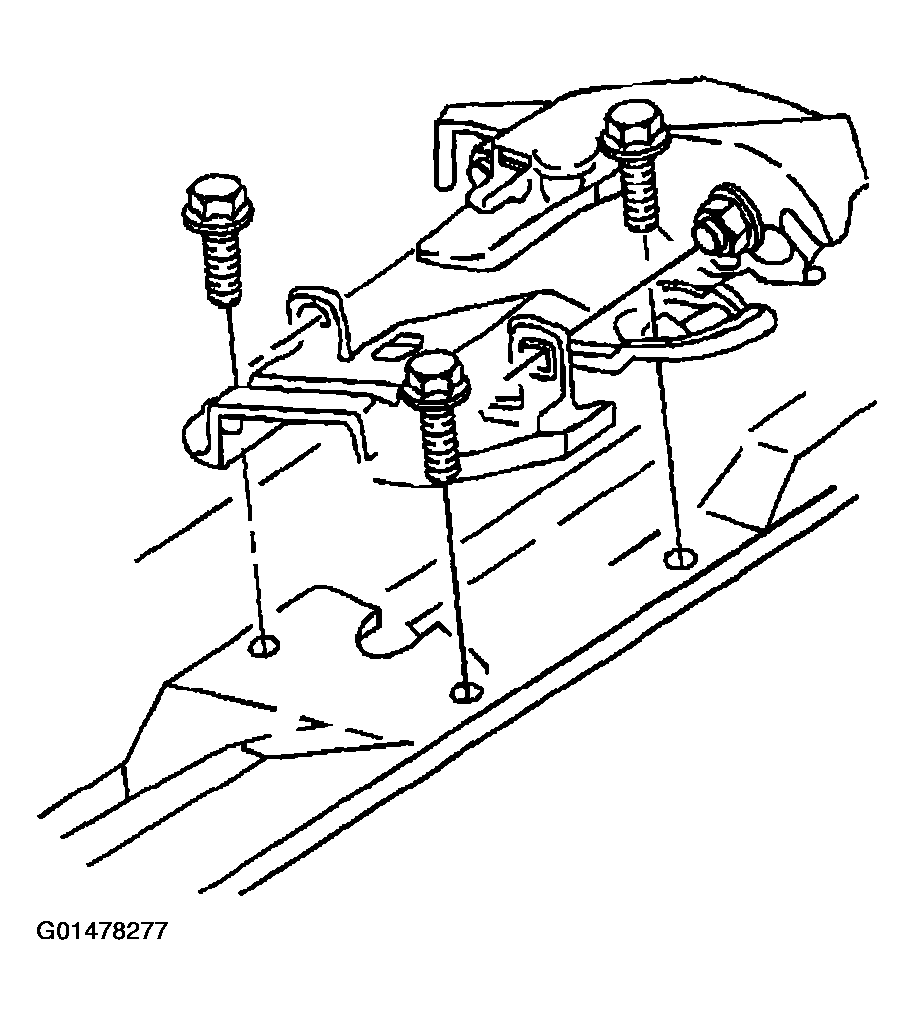

    Fig 1: Rear Lift Window Latch
    G01478277Courtesy of GENERAL MOTORS CORP.
