Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Remove the handle grip screws.
Remove the liftgate trim panel. Refer to TRIM PANEL REPLACEMENT - LIFT GATE .
Release the liftgate handle rod retainer.

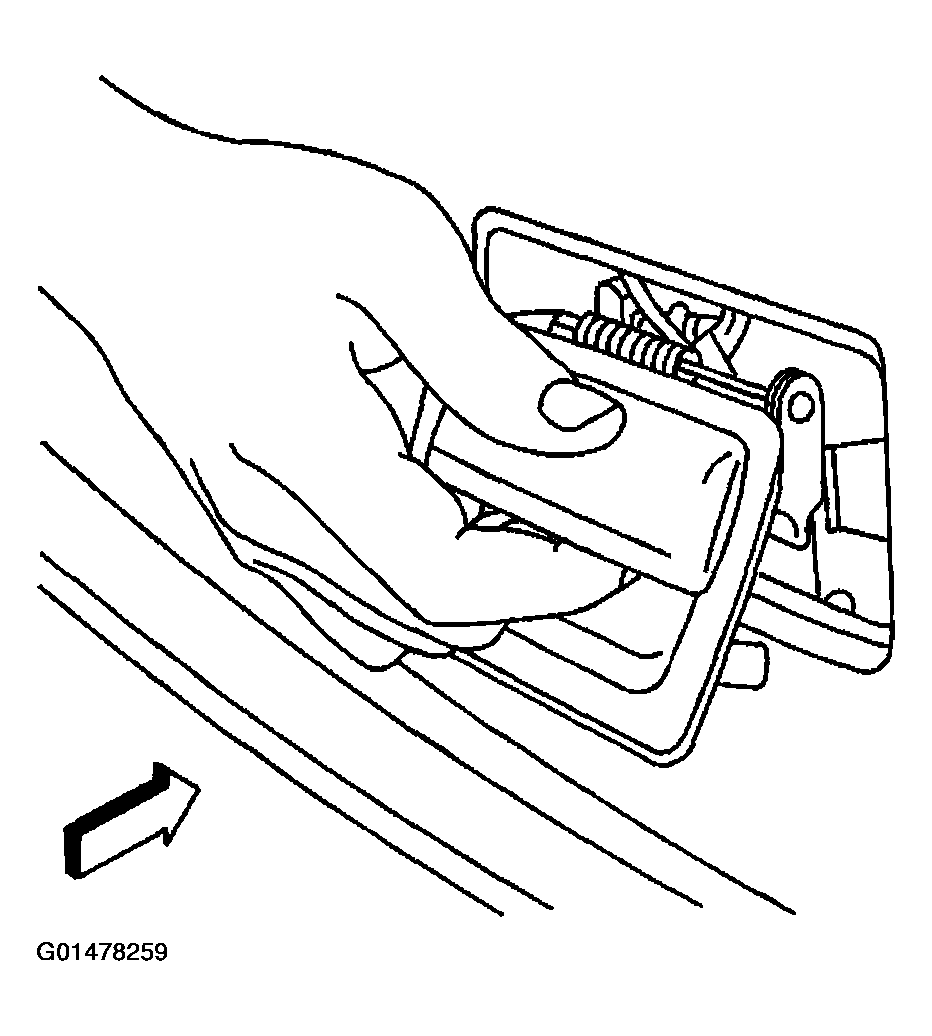

Fig 1: Liftgate Handle Rod Retainer
Courtesy of GENERAL MOTORS CORP.
Remove the bolts that retain the liftgate outside handle to the liftgate.

Fig 2: Removing Bolts That Retain Liftgate Outside Handle
Courtesy of GENERAL MOTORS CORP.
Remove the liftgate outside handle from the liftgate.

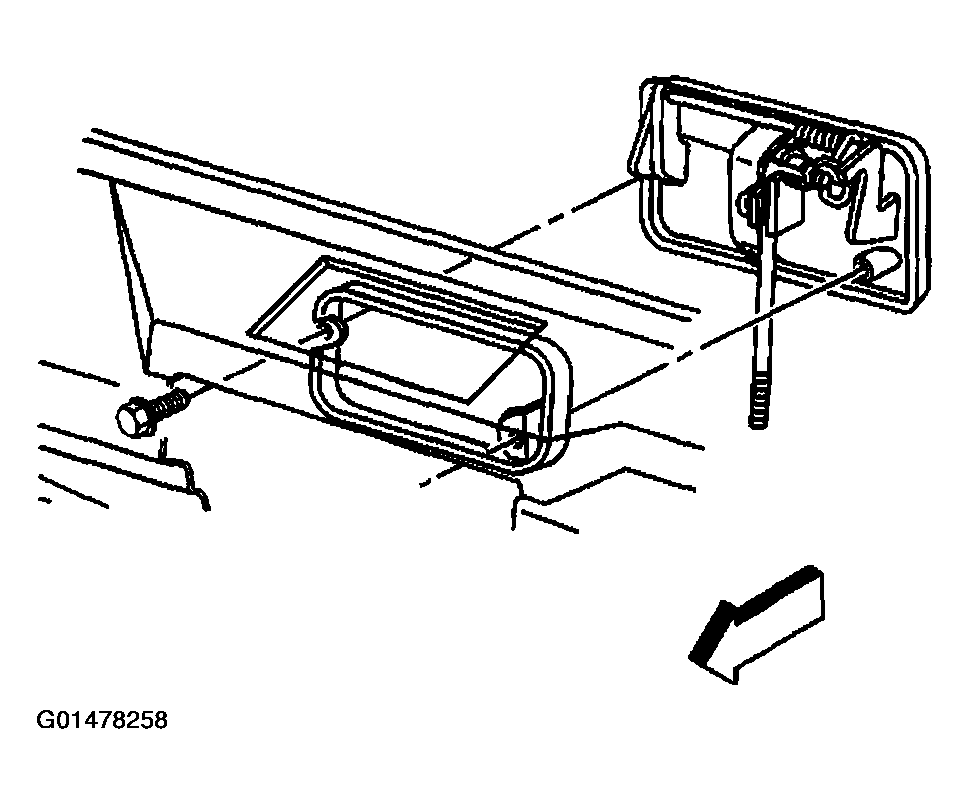

Fig 3: Removing Liftgate Outside Handle From Liftgate
Courtesy of GENERAL MOTORS CORP.
