Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the liftgate outside handle to the liftgate.

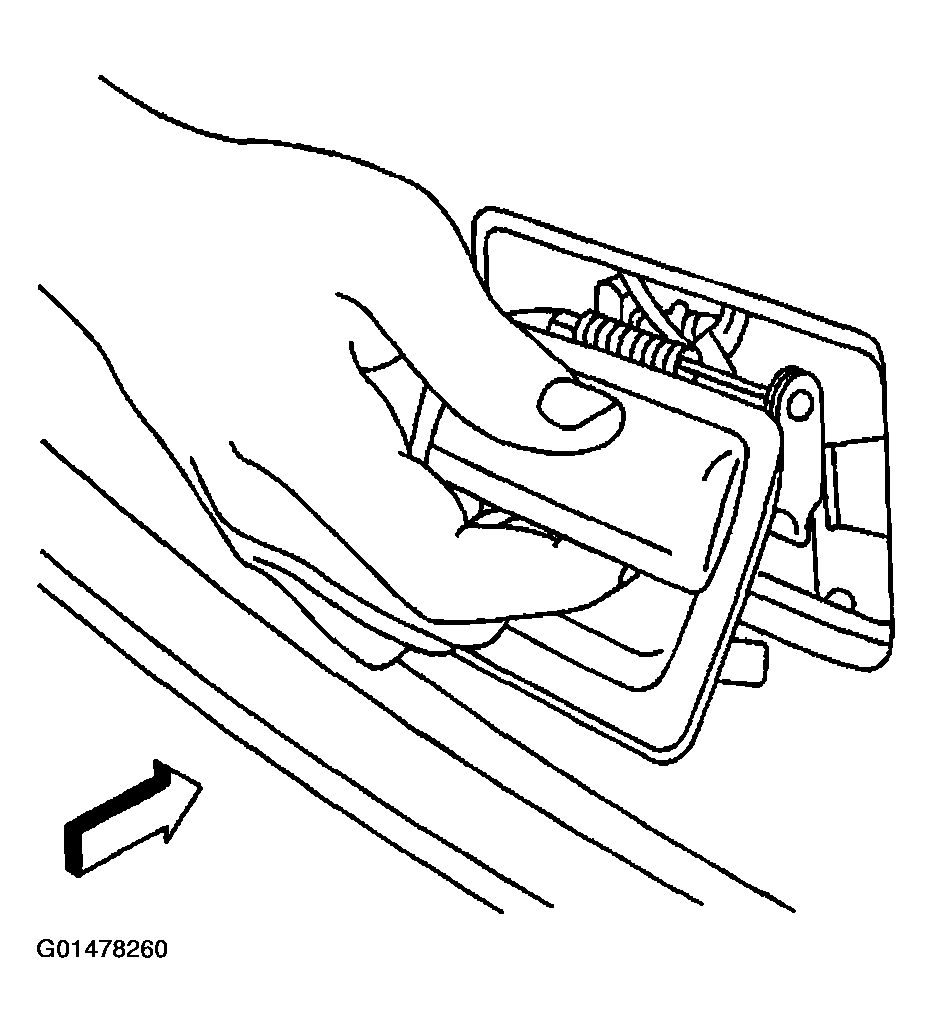

    Fig 1: Installing Liftgate Outside Handle To Liftgate
    G01478260Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the bolts that retain the liftgate outside handle to the liftgate.

    Tighten

    Tighten the bolts to 4 N.m (35 lb in).

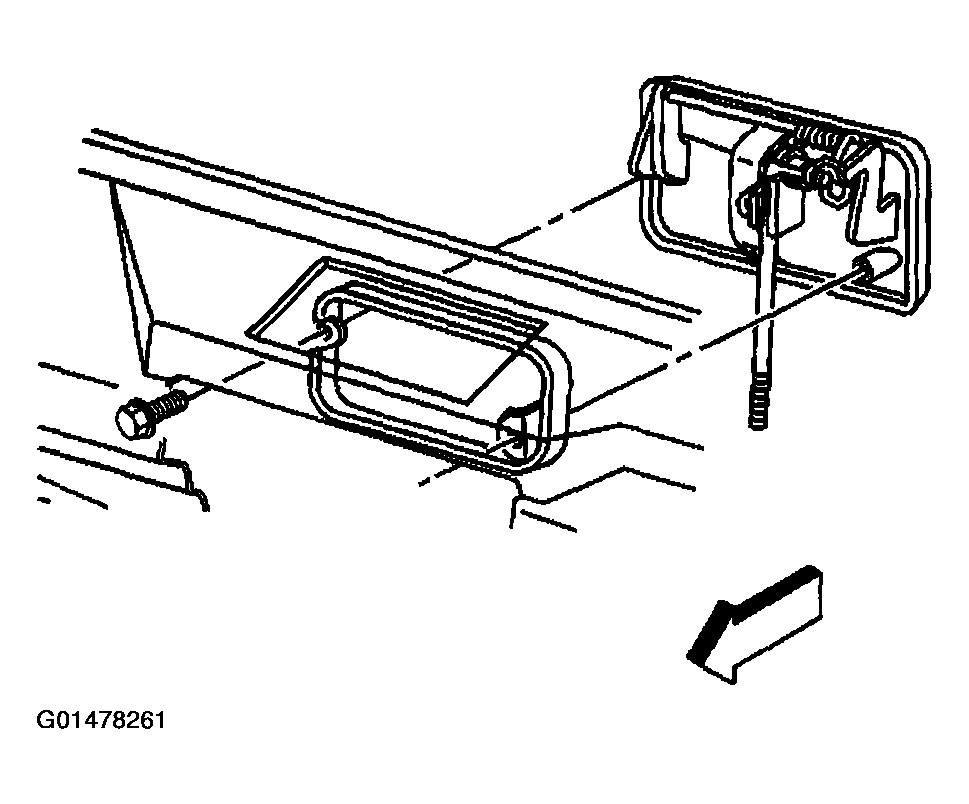

    Fig 2: Installing Bolts That Retain Liftgate Outside Handle
    G01478261Courtesy of GENERAL MOTORS CORP.
  3. Install the liftgate handle rod to the liftgate handle.
  4. Engage the retainer.
  5. Install the liftgate trim panel. Refer to TRIM PANEL REPLACEMENT - LIFT GATE .

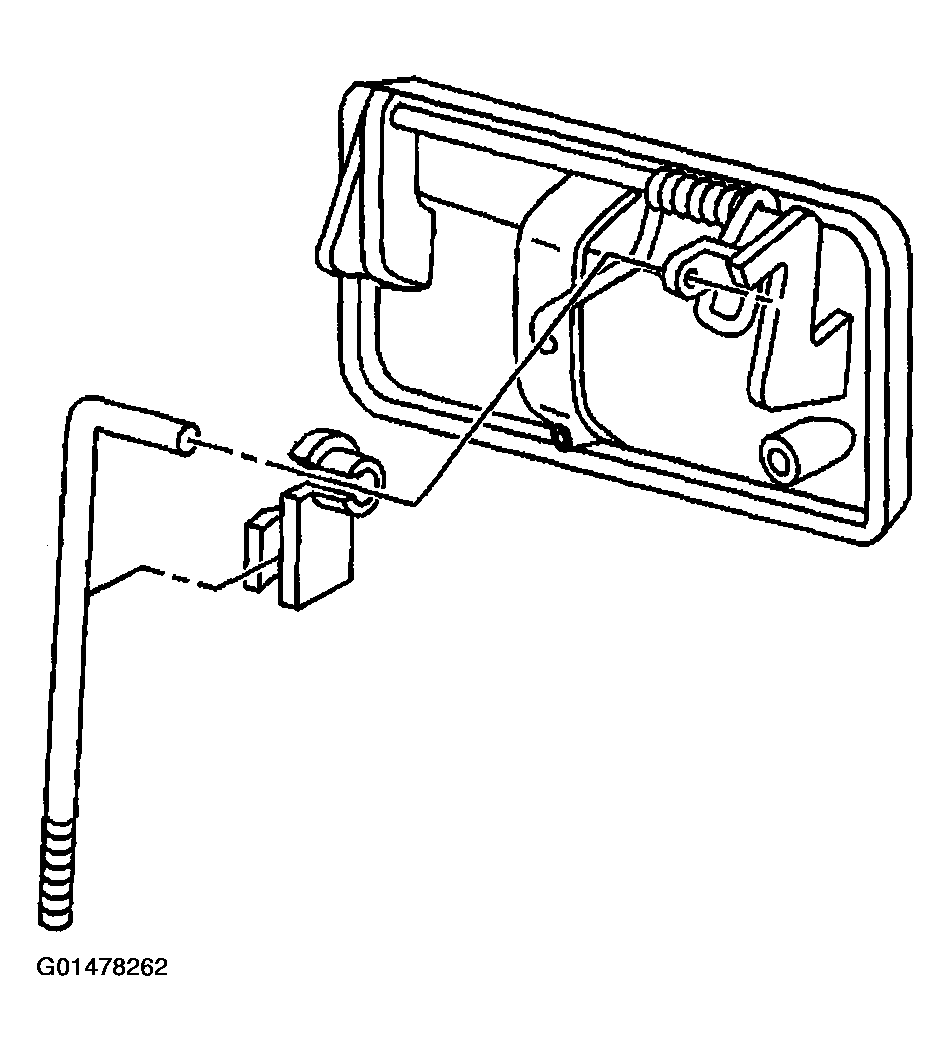

    Fig 3: Installing Liftgate Handle Rod To Liftgate Handle
    G01478262Courtesy of GENERAL MOTORS CORP.
