Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the endgate torque rod. Refer to TORQUE ROD REPLACEMENT - END GATE .
  2. Remove the endgate opening sill trim plate in order to access the wiring harness connectors. Refer to DOOR SILL PLATE REPLACEMENT -- END GATE in Interior Trim.
  3. Disconnect the electrical connectors, as needed.
  4. Disconnect the endgate window washer fluid hose.
  5. Safely support the endgate in the open position in order to remove the grommet from the endgate.
  6. Remove the endgate struts. Refer to STRUT REPLACEMENT - END GATE  and SUPPORT CABLE REPLACEMENT - End Gate (Utility) .

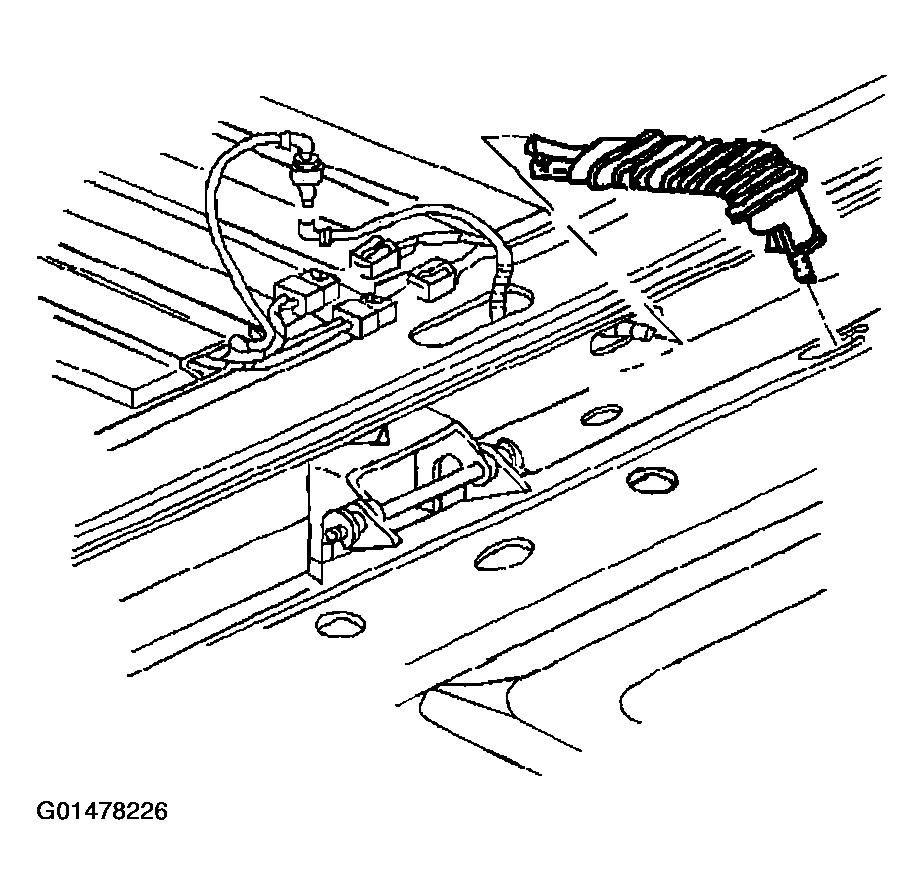

    Fig 1: Disconnecting Electrical Connectors
    G01478226Courtesy of GENERAL MOTORS CORP.
  7. Remove the endgate spare tire reinforcement (if equipped).

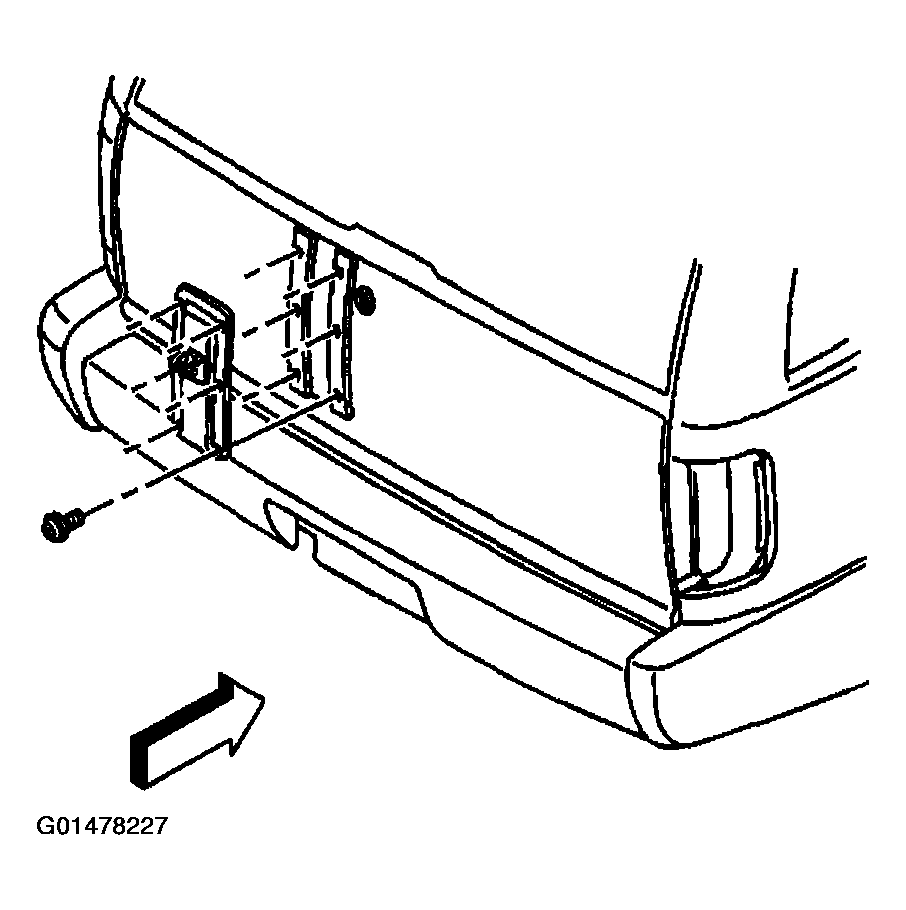

    Fig 2: Endgate Spare Tire Reinforcement
    G01478227Courtesy of GENERAL MOTORS CORP.
  8. Remove the hinge pin retainers.

    Discard the hinge pin retainers.

  9. Remove the hinge pins from the right hinge.
  10. Remove the hinge pins from the left hinge.
  11. With an assistant, remove the endgate from the vehicle.

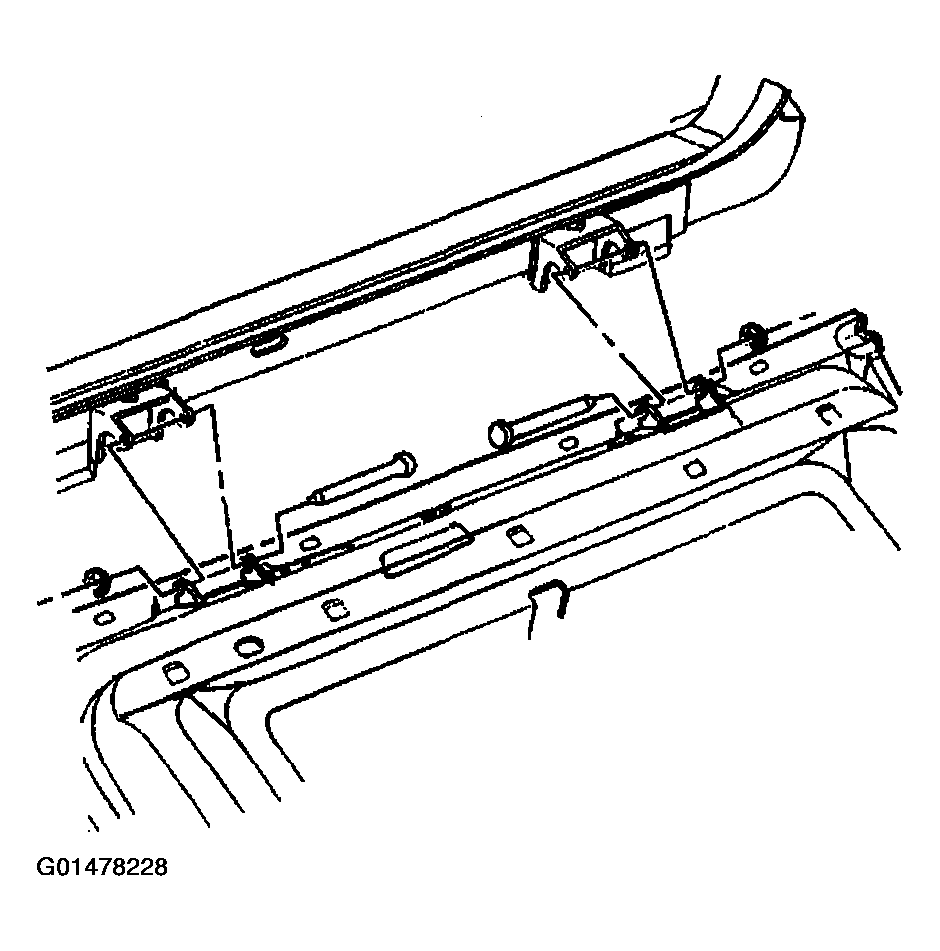

    Fig 3: Hinge Pins
    G01478228Courtesy of GENERAL MOTORS CORP.
