Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Perform the following steps in order to disconnect the right and left pickup box endgate cables from the endgate striker bolts:
1. Open the endgate.
2. Safely support the endgate.
3. Disconnect the slotted hole at the end of the cable from the endgate striker bolt.

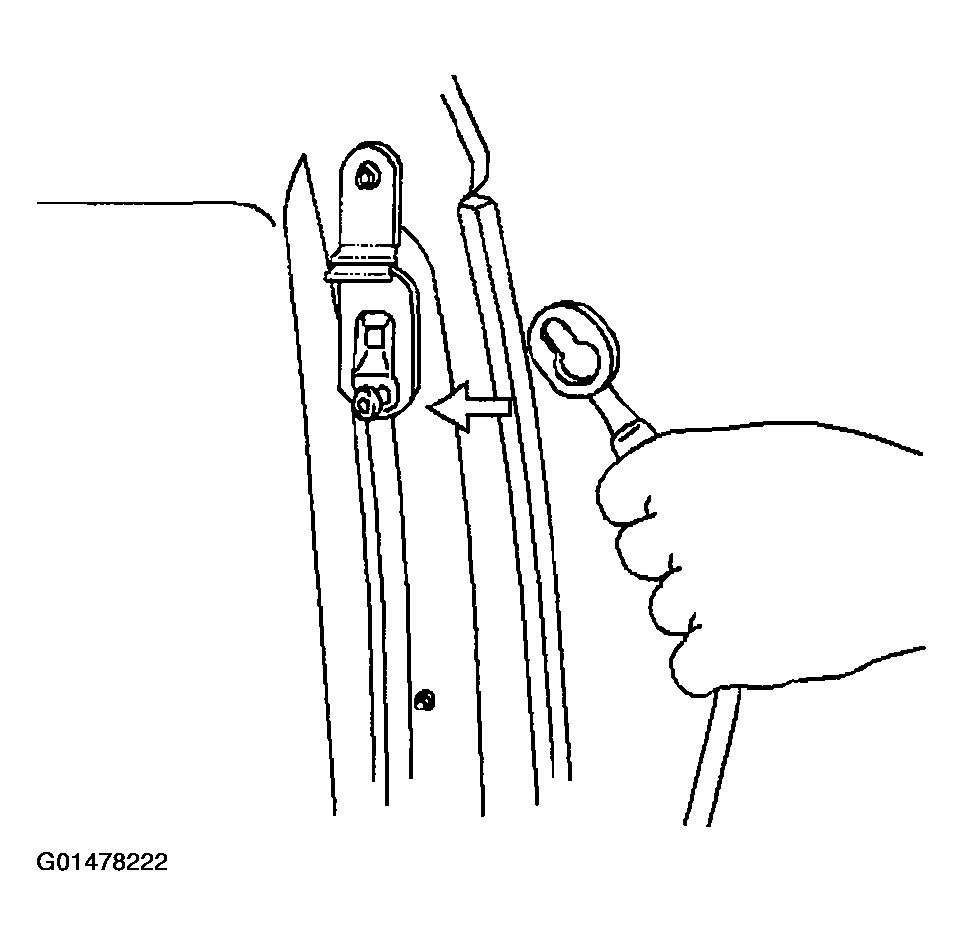

Fig 1: Disconnecting Slotted Hole End Of Cable From Endgate Striker Bolt
Courtesy of GENERAL MOTORS CORP.
Remove the endgate from the vehicle:
1. Raise the endgate to a 45 degree angle.
  Do not pinch the cable between the endgate and the pickup box.
2. Lift the endgate from the left side hinge.
3. Lift the endgate from the right side hinge.

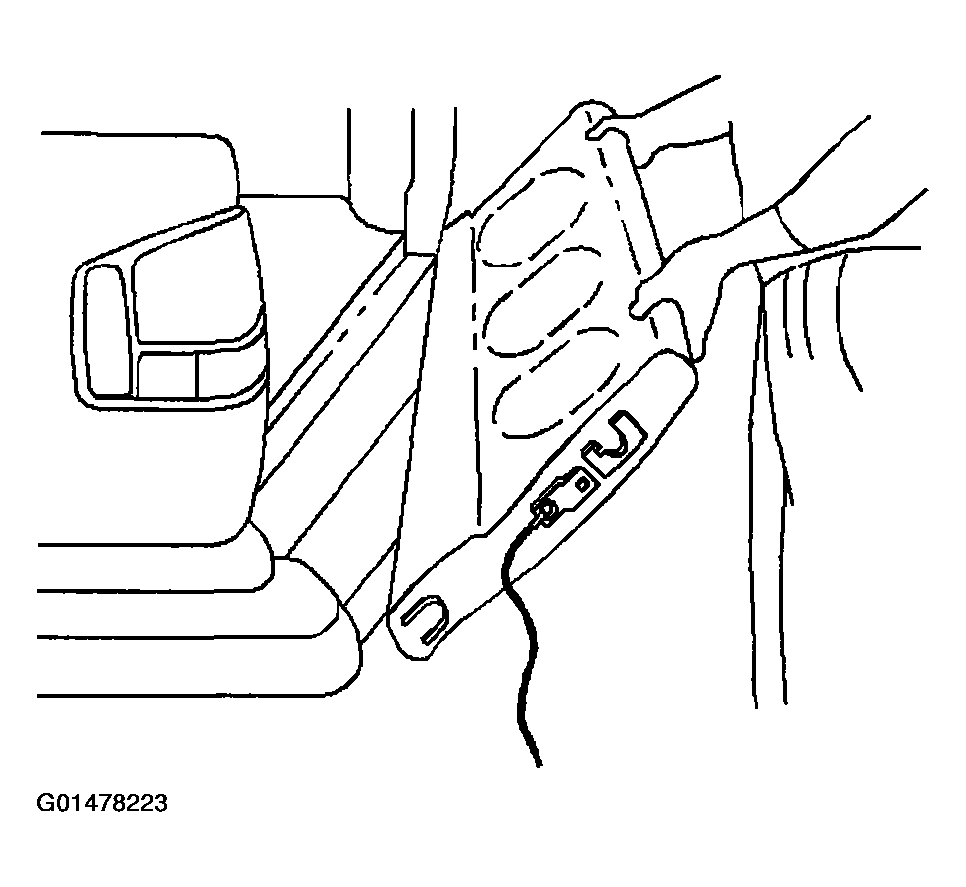

Fig 2: Removing Endgate From Vehicle
Courtesy of GENERAL MOTORS CORP.
