Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Perform the following steps in order to install the endgate to the vehicle:
    1. Install the endgate to the right side hinge.
    2. Hold the endgate at a 45 degree angle in order to seat the endgate to the left side hinge.

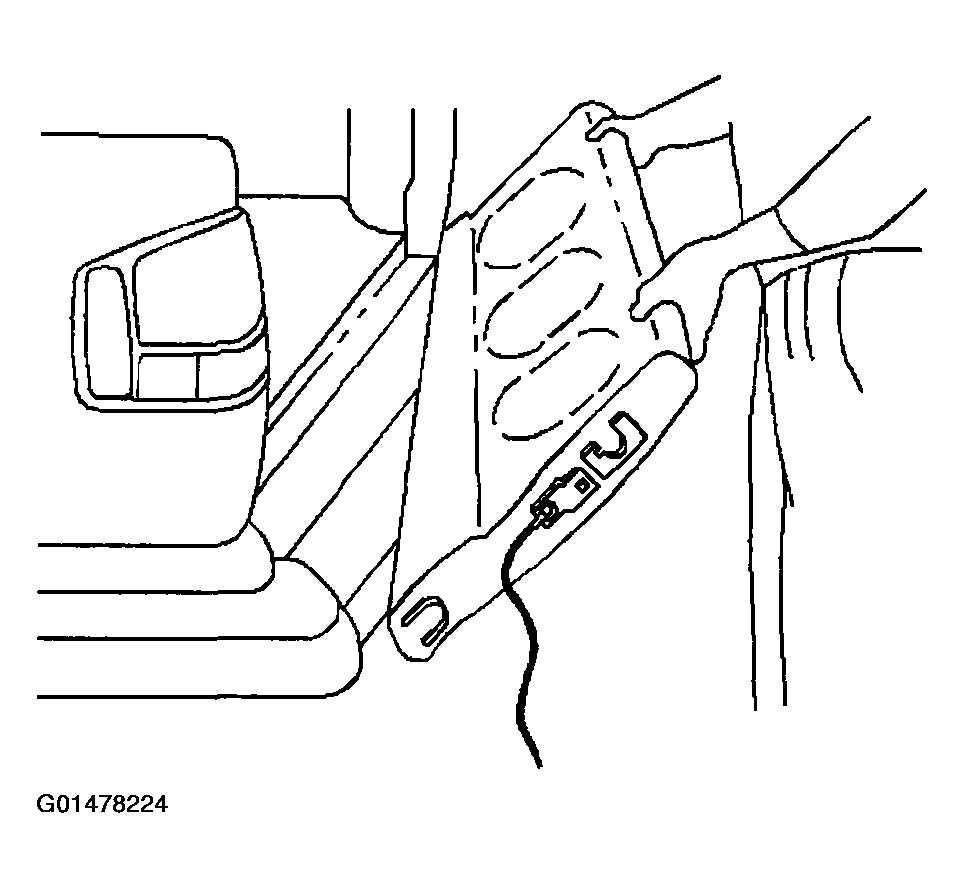

    Fig 1: Installing Endgate To Vehicle
    G01478224Courtesy of GENERAL MOTORS CORP.
  2. Connect the right pickup endgate cable to the endgate striker bolts.
  3. Connect the left pickup endgate cable to the endgate striker bolts.

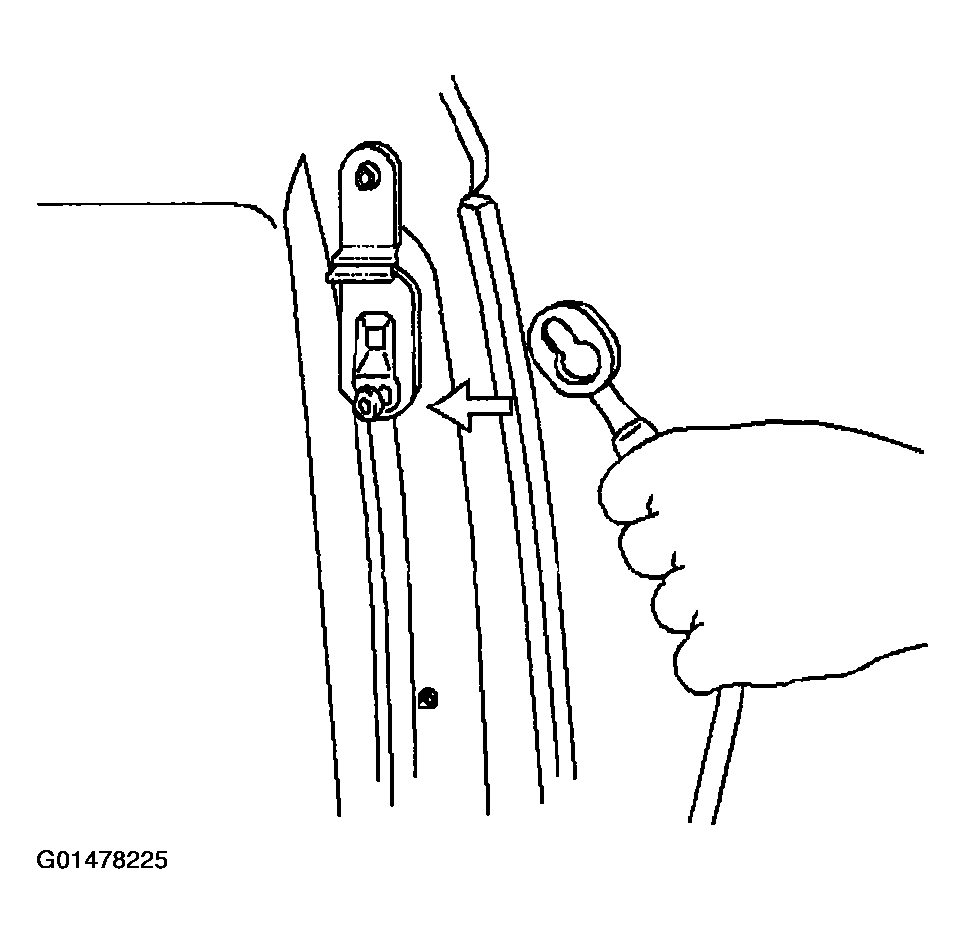

    Fig 2: Connecting Left Pickup Endgate Cable To Endgate Striker Bolts
    G01478225Courtesy of GENERAL MOTORS CORP.
