Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the side bumper.
  2. Install the spacer (if equipped).
  3. Install the upper side bumper bolt.
  4. Rotate the lower side bumper bolt until the threaded hole is properly aligned.
  5. Remove the lower side bumper bolt.
  6. Rotate the side bumper and spacer (if equipped) in order to align the threaded hole in the backing plate.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  7. Install the lower side bumper bolt.

    Tighten

    Tighten the bolt to 22 N.m (16 lb ft).

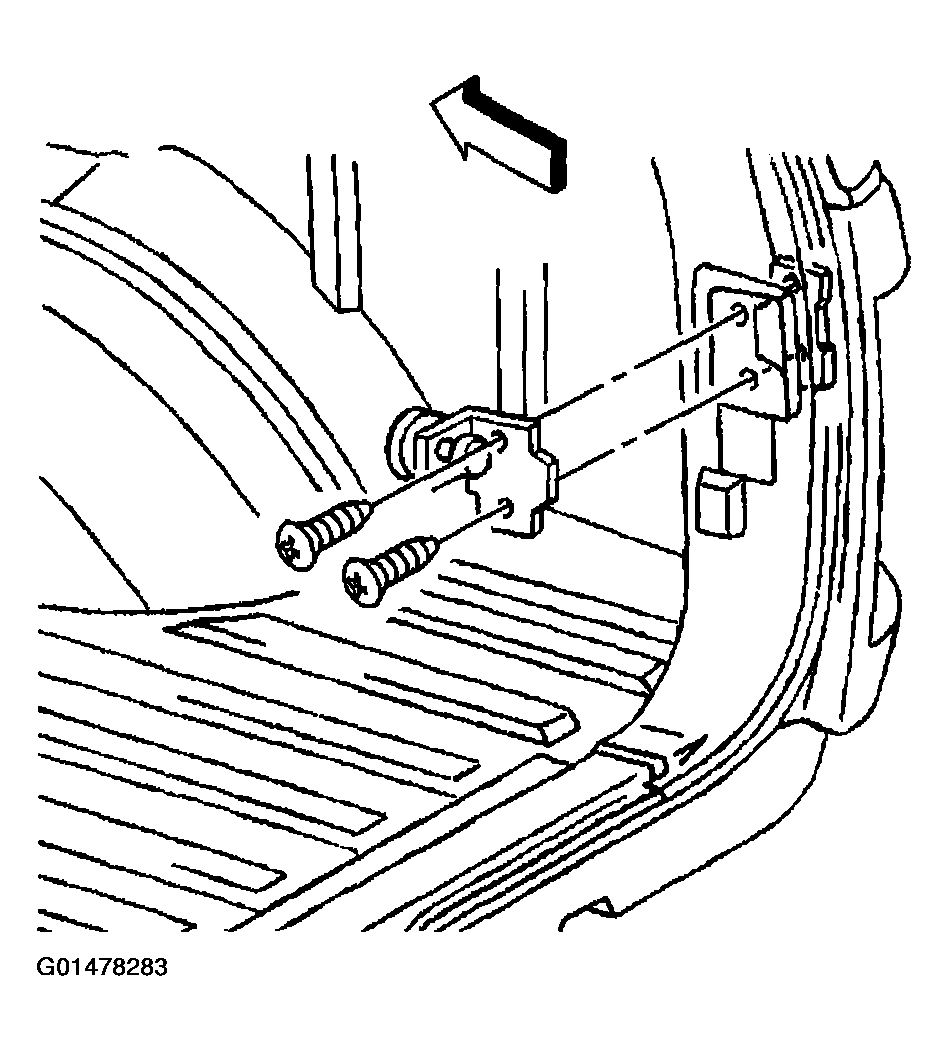

    Fig 1: Side Bumper
    G01478283Courtesy of GENERAL MOTORS CORP.
