Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the liftgate trim panel. Refer to TRIM PANEL REPLACEMENT - LIFT GATE .
  2. Release the handle and the latch rods from the bellcrank.
  3. Remove the bolts that retain the bellcrank to the liftgate.
  4. Remove the bellcrank from the liftgate.

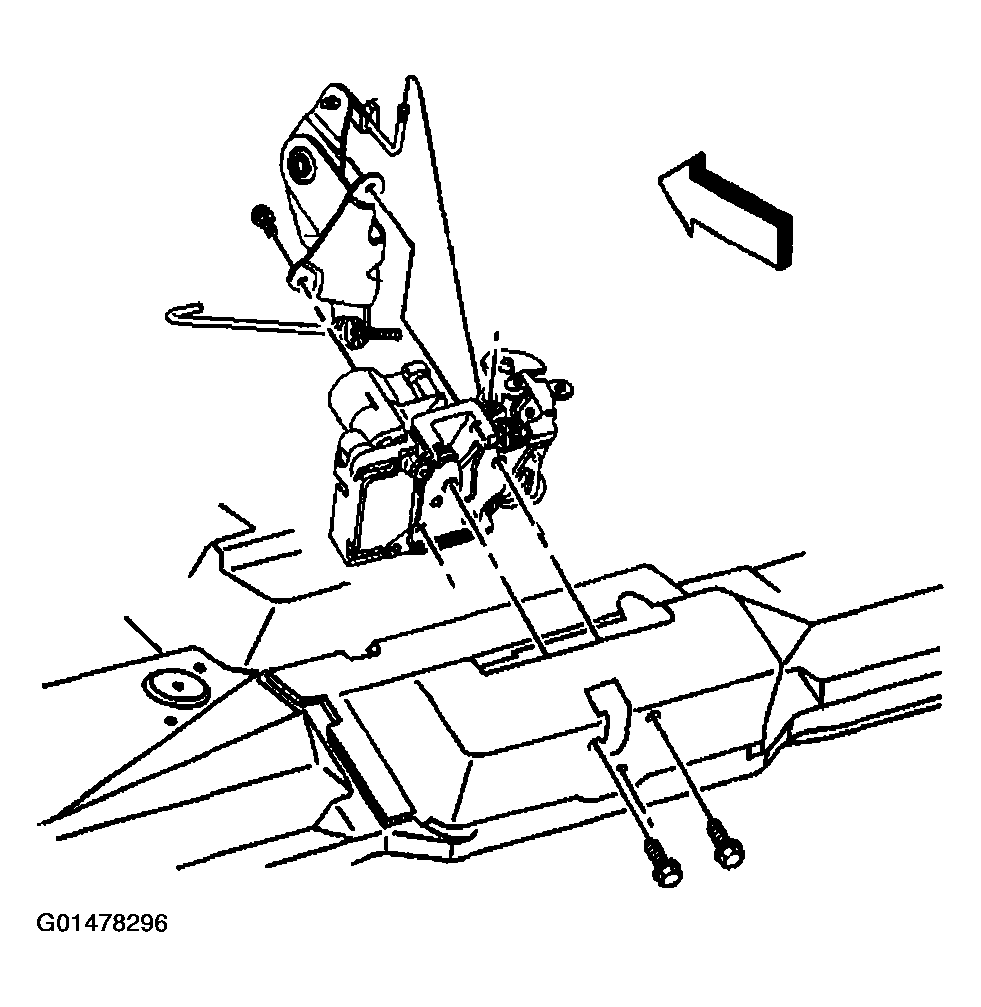

    Fig 1: Removing Bellcrank From Liftgate
    G01478296Courtesy of GENERAL MOTORS CORP.
