Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bellcrank to the liftgate.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the bolts that retain the bellcrank to the liftgate.

    Tighten

    Tighten the bolts to 11 N.m (97 lb in).

  3. Engage the handle and the latch rods to the bellcrank.
  4. Install the liftgate trim panel. Refer to TRIM PANEL REPLACEMENT - LIFT GATE .

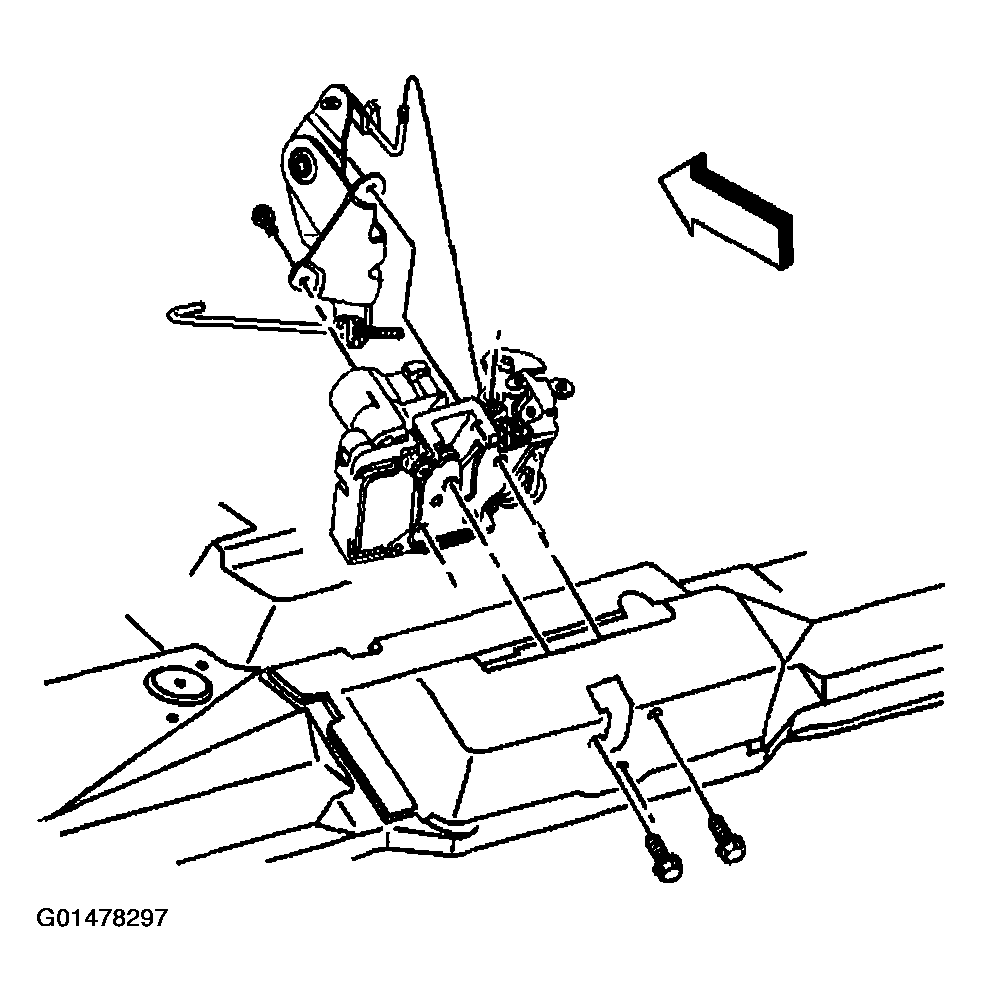

    Fig 1: Installing Bellcrank To Liftgate
    G01478297Courtesy of GENERAL MOTORS CORP.
