Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the endgate trim panel. Refer to TRIM PANEL REPLACEMENT - END GATE .
  2. Remove the endgate handle rod from the bellcrank.
  3. Remove the endgate latch rods from the bellcrank.
  4. Remove the bolts that retain the bellcrank to the endgate.
  5. Remove the bellcrank from the endgate.

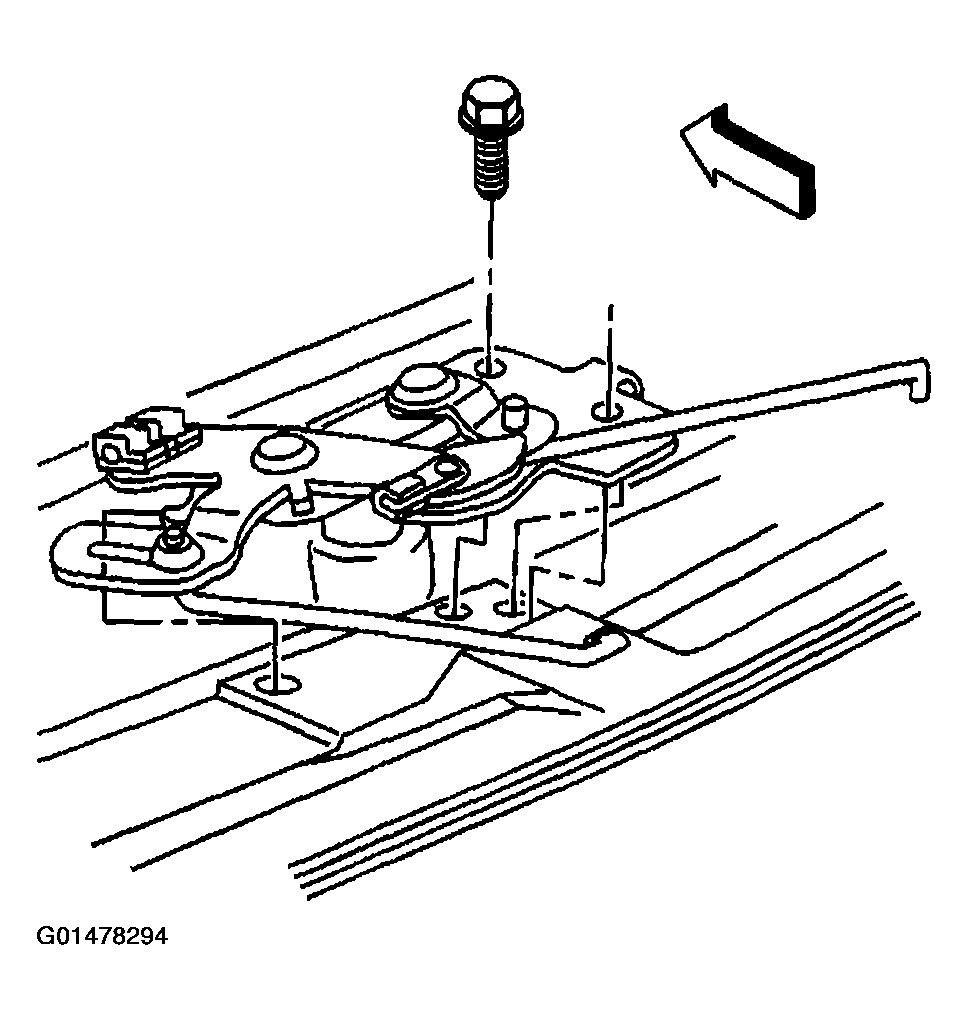

    Fig 1: Removing Bellcrank From Endgate
    G01478294Courtesy of GENERAL MOTORS CORP.
