Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bellcrank to the endgate.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the bolts that retain the bellcrank to the endgate.

    Tighten

    Tighten the bolts to 9 N.m (80 lb in).

  3. Install the endgate latch rods to the bellcrank.
  4. Install the endgate latch handle rod to the bellcrank.
  5. Install the endgate trim panel. Refer to TRIM PANEL REPLACEMENT - END GATE .

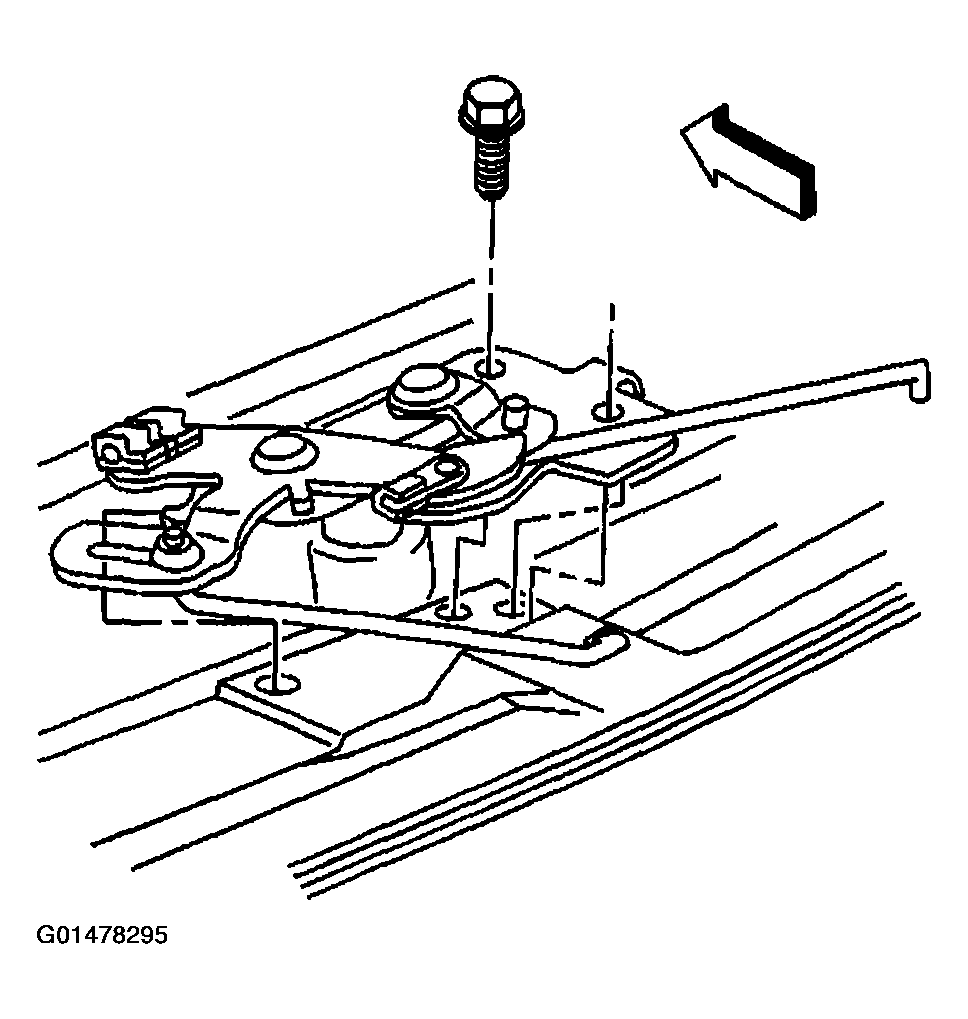

    Fig 1: Installing Bellcrank To Endgate
    G01478295Courtesy of GENERAL MOTORS CORP.
