Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the body plugs.
  2. Remove bolts.
  3. Remove bed rail protector.
  4. Remove bed rail protector gaskets.

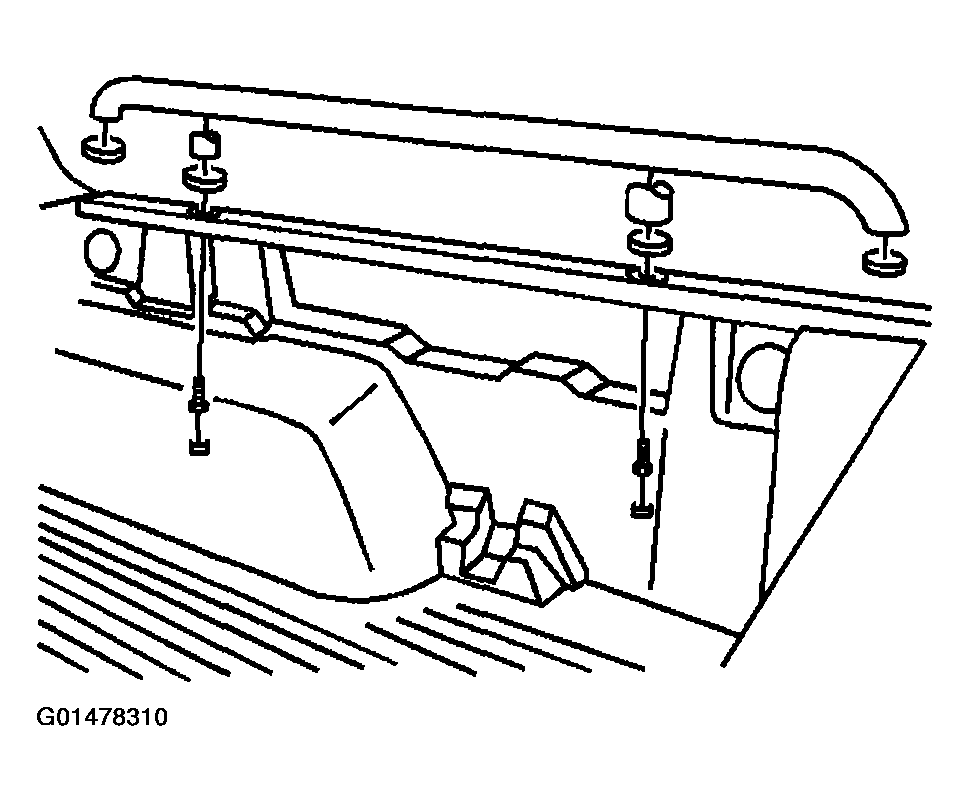

    Fig 1: Bed Rail Protector Gaskets
    G01478310Courtesy of GENERAL MOTORS CORP.
