Body Rear End Connector End Views

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

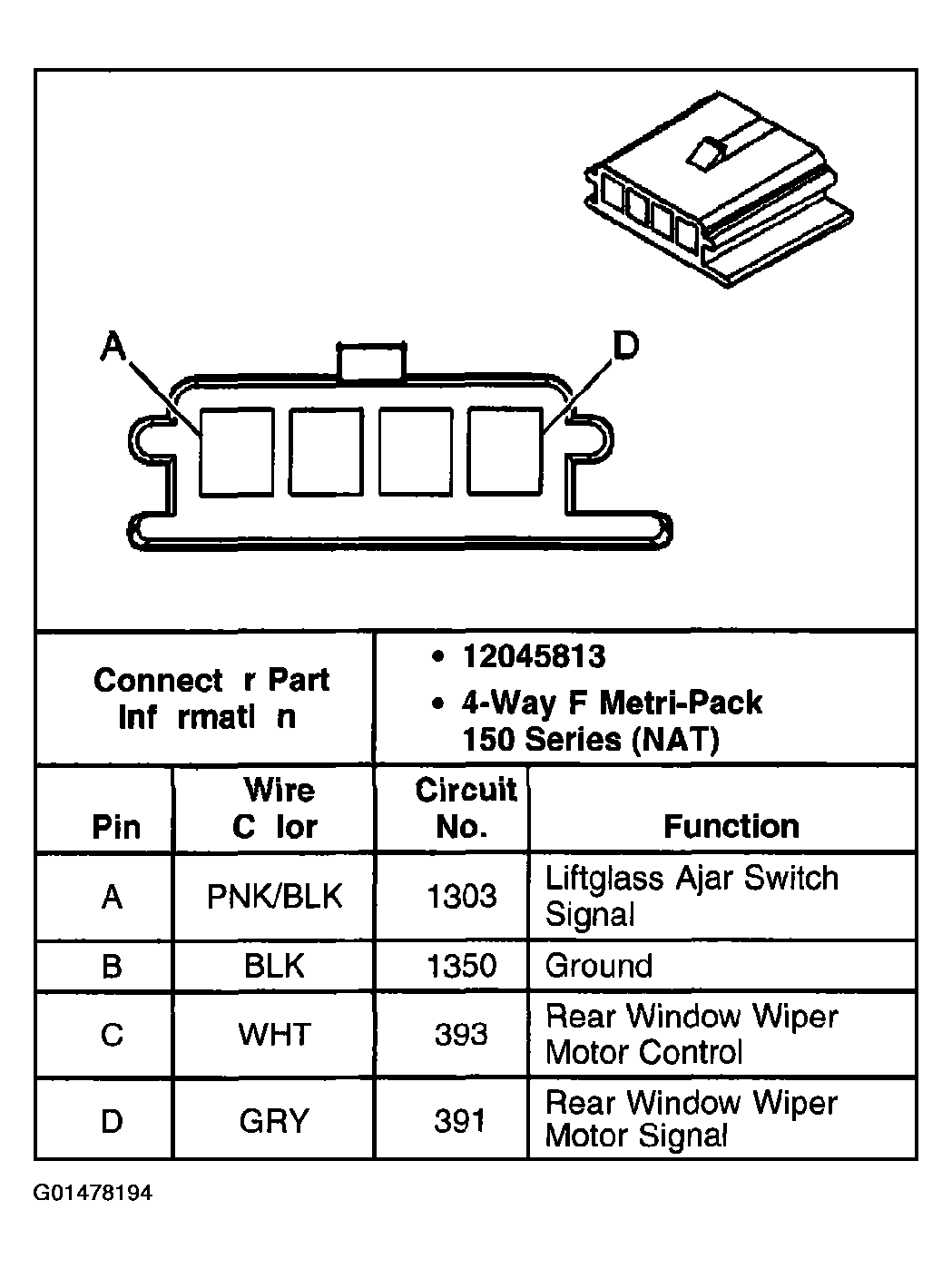

Fig 1: Rear Window Wiper Cutout & Liftglass Ajar Jamb Switch (Utility)
G01478194Courtesy of GENERAL MOTORS CORP.

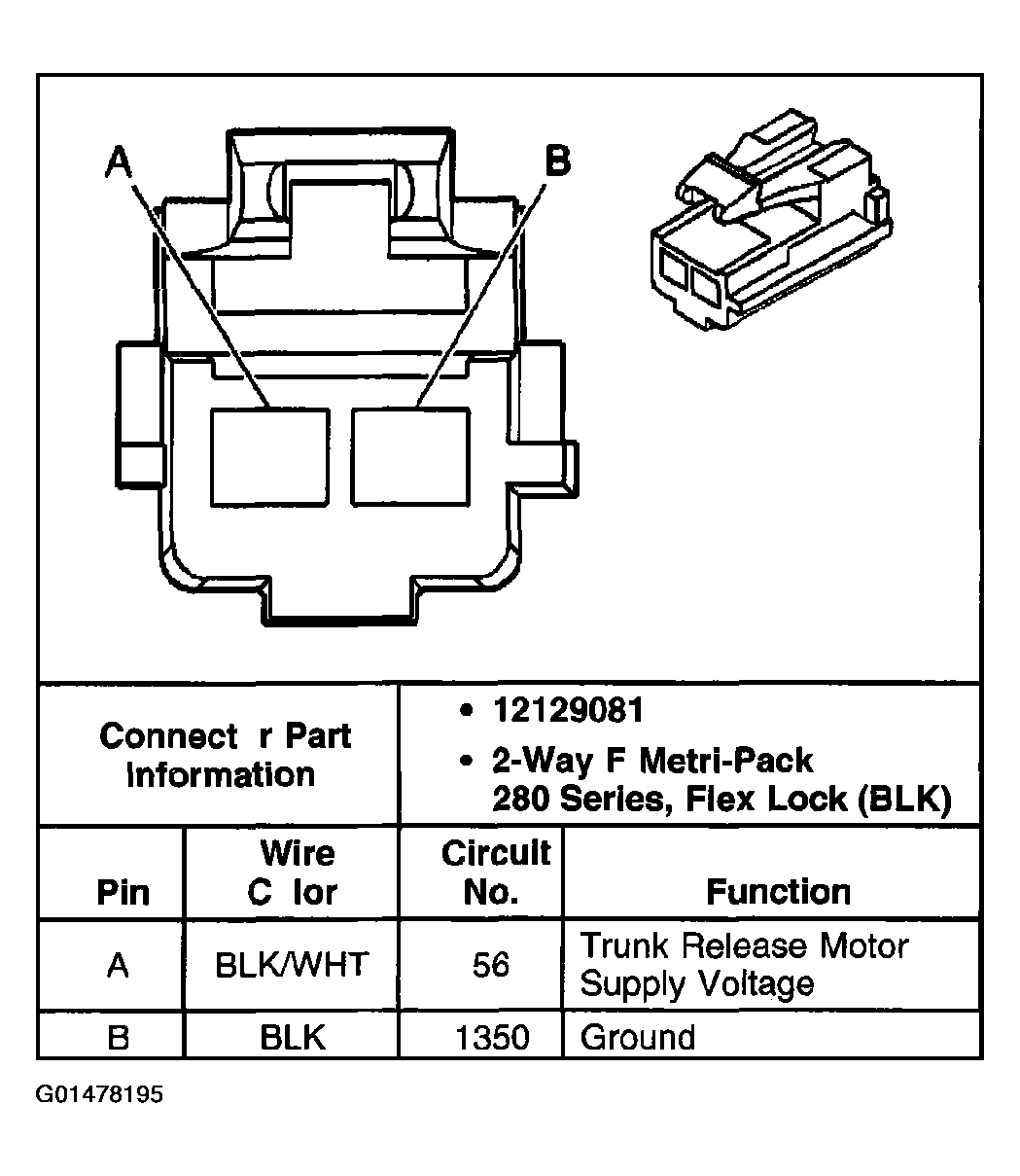

Fig 2: Liftglass Release Actuator
G01478195Courtesy of GENERAL MOTORS CORP.
