Body Rear End Component Views

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

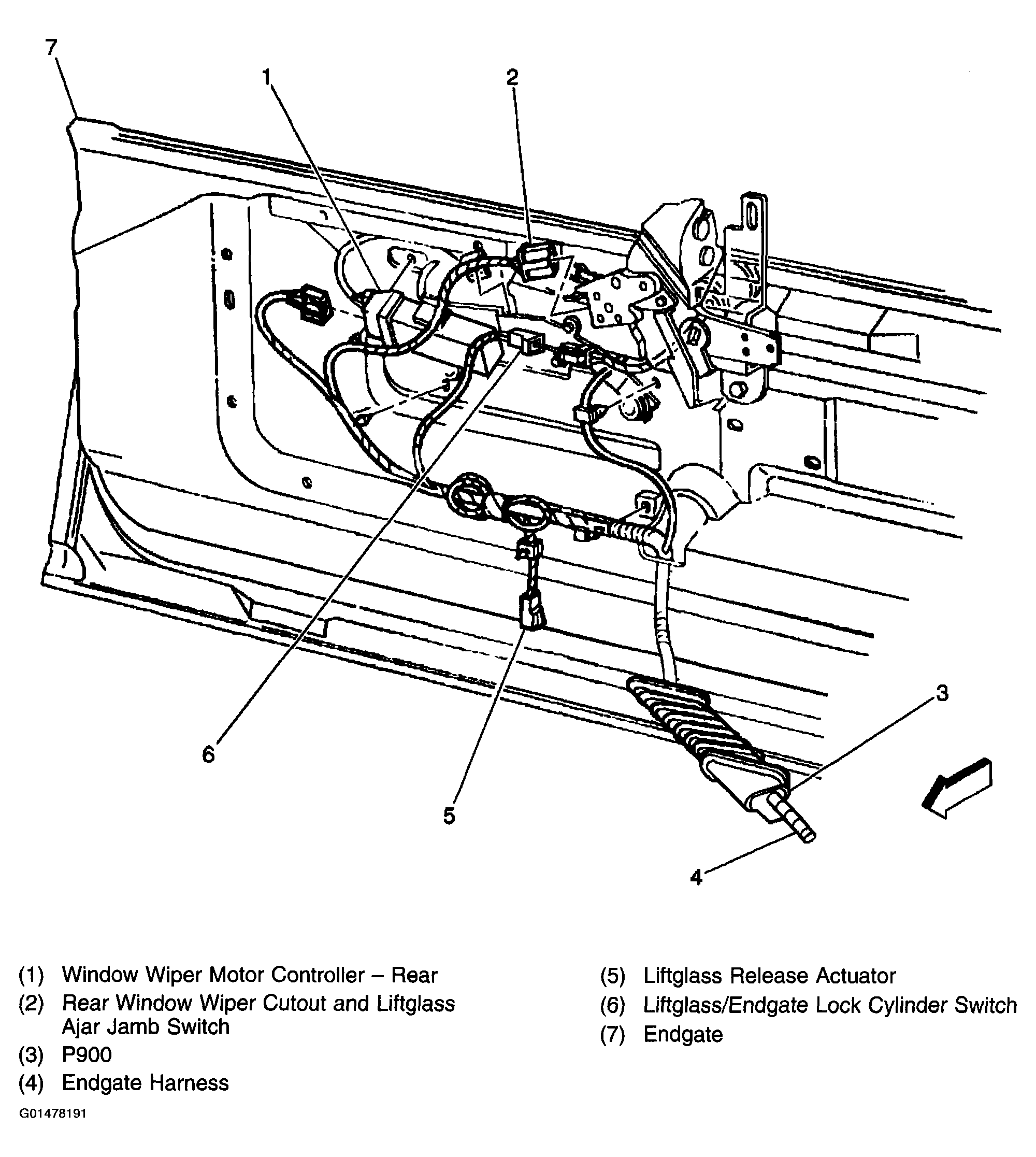

Fig 1: Endgate Harness Routing View
G01478191Courtesy of GENERAL MOTORS CORP.

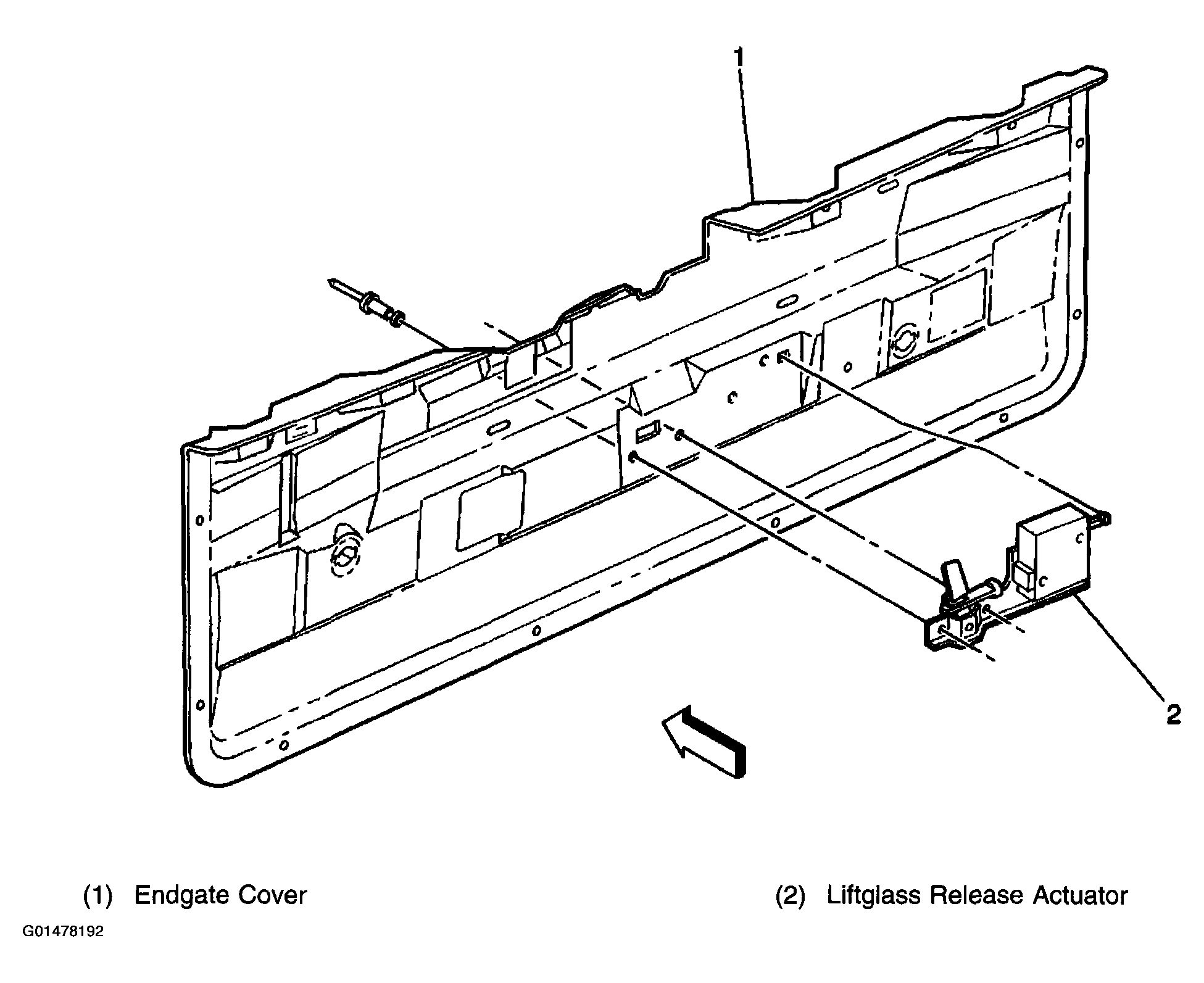

Fig 2: Liftglass Release Actuator
G01478192Courtesy of GENERAL MOTORS CORP.

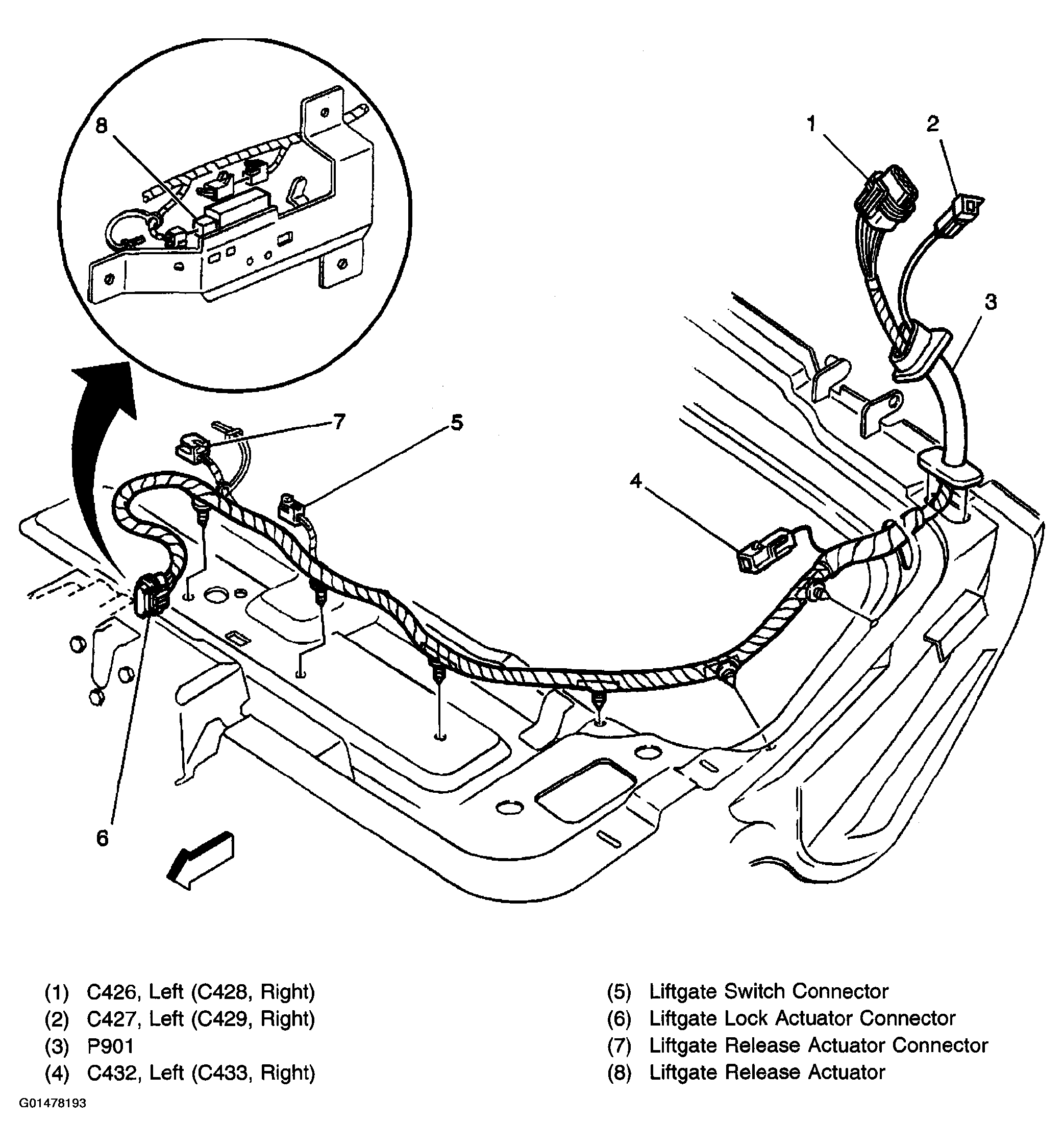

Fig 3: Liftgate (Utility)
G01478193Courtesy of GENERAL MOTORS CORP.
