Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right front door sill trim plate from the vehicle by gently pulling it upward.
  2. Remove the right-side instrument panel sound insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT -- RIGHT in Instrument Panel, Gages and Console.
  3. Remove the body hinge pillar trim panel.

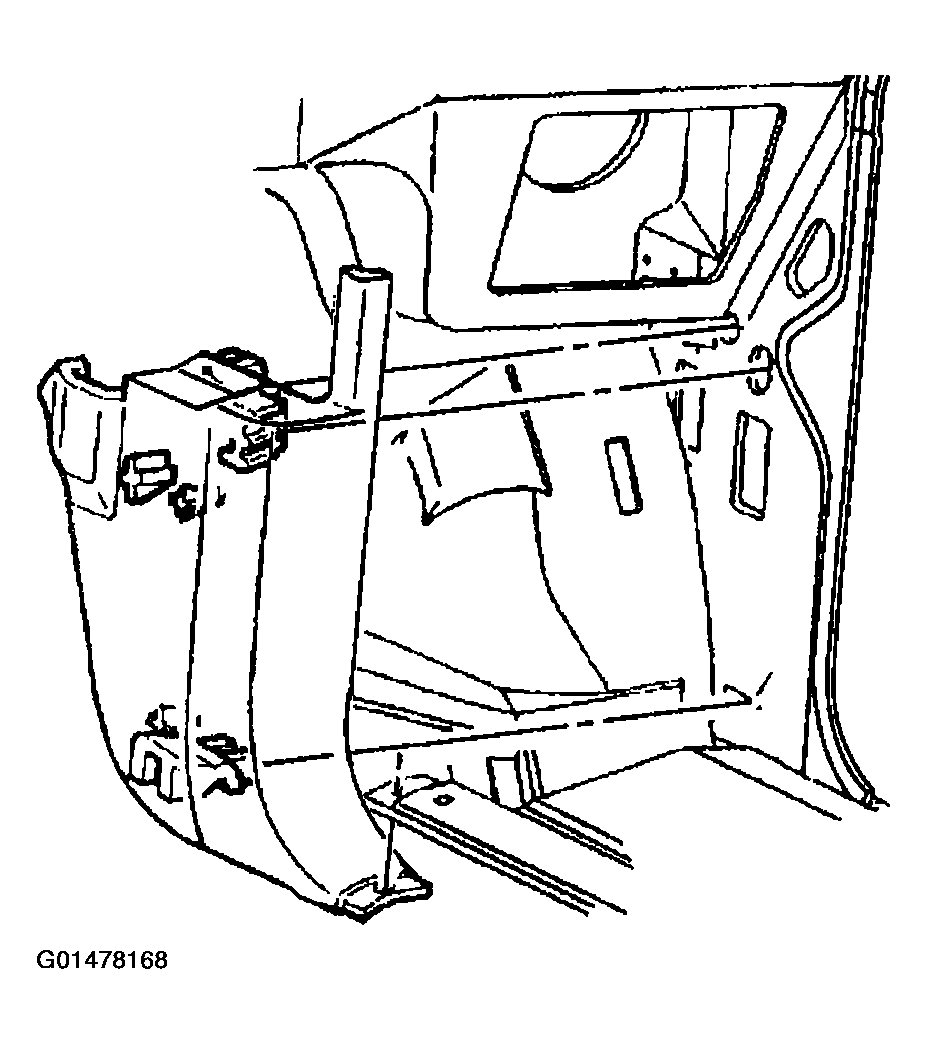

    Fig 1: Right Hinge Pillar Trim Panel
    G01478168Courtesy of GENERAL MOTORS CORP.
