Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the body hinge trim panel.
  2. Install the right-side instrument panel sound insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT -- RIGHT in Instrument Panel, Gages and Console.
  3. Install the right front door sill trim plate to the vehicle by snapping it into place.

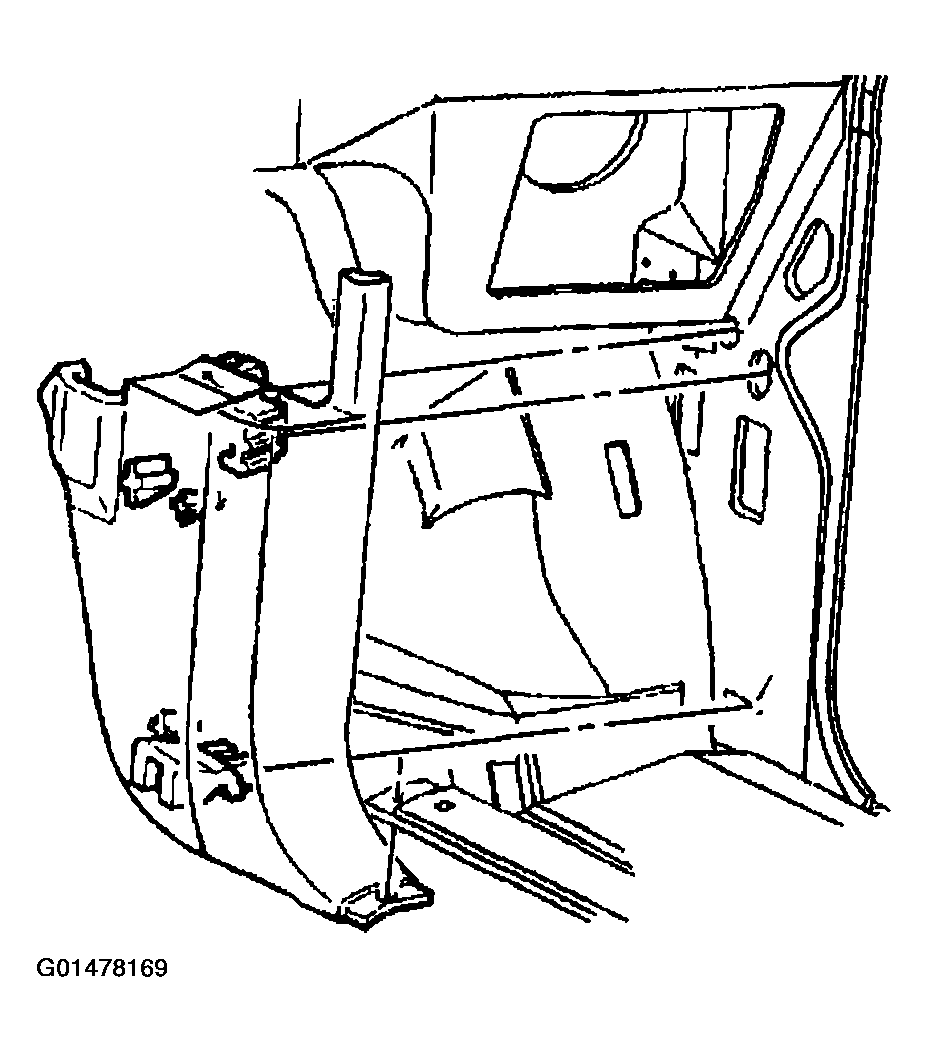

    Fig 1: Right Hinge Pillar Trim Panel
    G01478169Courtesy of GENERAL MOTORS CORP.
